H2M25RA29CST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> H2M25RA29CST

H2M25RA29CST: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

H2M25RA29CST Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal

H2M25RA29CST Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
MIL compliance	NO
Manufacturer's serial number	H2M
Mixed contacts	NO
Installation type	BOARD
Shell material	PLASTIC
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

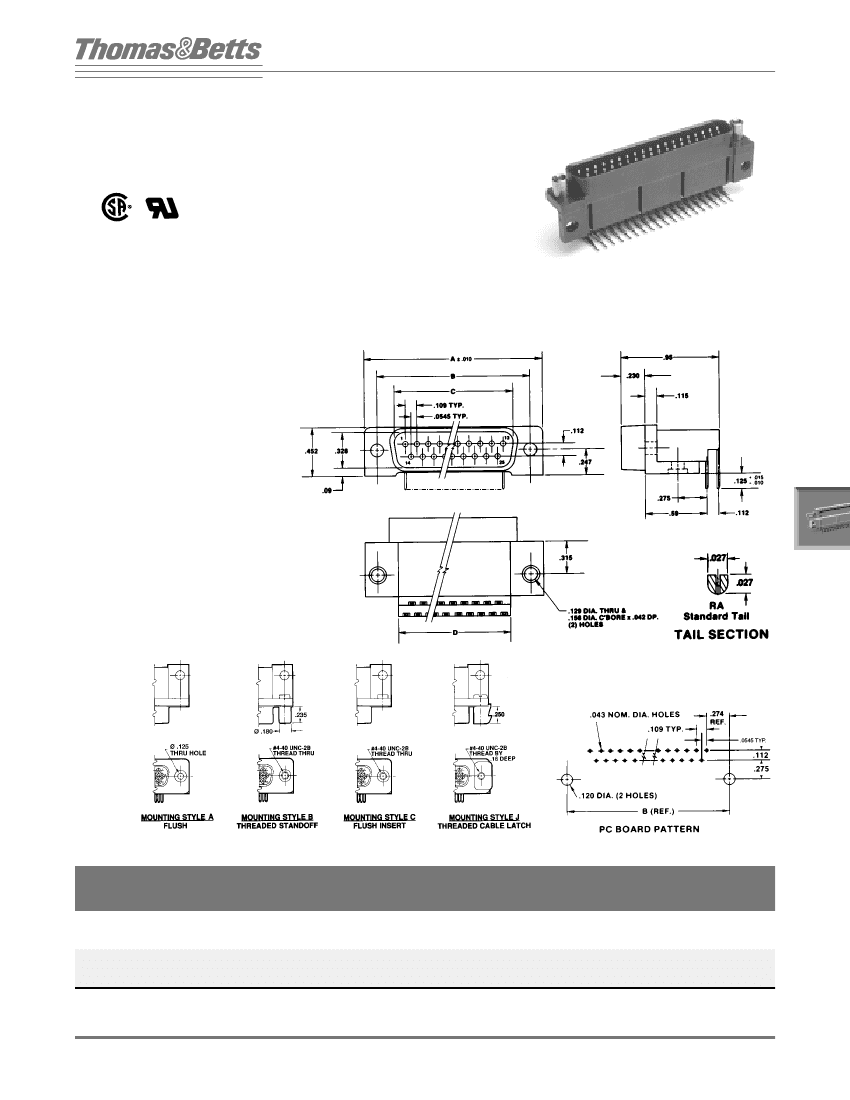

H2M25RA29CST Preview

D-Subminiature

.590 Footprint PCB Mount

ALL PLASTIC

RIGHT ANGLE MALE PINS

FOR PCB MOUNTING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Black

ONTACTS

High strength copper alloy

URABILITY

Up to 500 insertions and withdrawals

without degradation of performance, dependent

upon contact plating thickness selected

LECTRICAL

ROPERTIES

PERATING

OLTAGE

600 VDC (sea level)

URRENT

ATING

5 Amperes

ONTACT

ESISTANCE

10 milliohms max.

@ rated current

NSULATION

ESISTANCE

5000 megohms minimum

IELECTRIC

ITHSTANDING

OLTAGE

1000 VAC minimum

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

Ordering Information

NUMBER

CATALOG NUMBER BY MOUNTING STYLE

BASIC CONNECTOR

ROUND STANDOFF

FLUSH INSERT

CONTACTS

W/THRU HOLES

4-40 THREAD

H2M09RA29A

H2M15RA29A

H2M25RA29A

H2M37RA29A

H2M09RA29B

H2M15RA29B

H2M25RA29B

H2M37RA29B

H2M09RA29C

H2M15RA29C

H2M25RA29C

H2M37RA29C

DIMENSIONS

LATCH W/STANDOFF

& 4-40 THREADED INSERT

H2M09RA29J

H2M15RA29J

H2M25RA29J

H2M37RA29J

1.224

1.552

2.092

2.740

.984

1.312

1.852

2.500

.666

.994

1.534

2.183

.624

.952

1.492

2.140

Add suffix S for metal snap latches and P for plastic. See page 416 for descriptions. Not available on basic connector.

Suffix T = shipped in tubes.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

391

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

H2M25RA29CST Related Products

	H2M25RA29CST	H2M25RA29JPT	H2M25RA29JST	H2M37RA29BPT	H2M37RA29BST	H2M37RA29CPT	H2M37RA29CST	H2M37RA29JPT	H2M37RA29JST	H2M09RA29CST
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	H2M	H2M	H2M	H2M	H2M	H2M	H2M	H2M	H2M	H2M
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Housing size	3/B	3/B	3/B	4/C	4/C	4/C	4/C	4/C	4/C	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	37	37	37	37	37	37	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	-
