AT29C040A-15TIT/R datasheet, PDF

Datasheet> All Categories > storage> storage> AT29C040A-15TIT/R

AT29C040A-15TIT/R: DescriptionFlash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP-32; Categorystorage storage; File Size349KB，11 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT29C040A-15TIT/R Overview

Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP-32

AT29C040A-15TIT/R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TSOP
package instruction	PLASTIC, TSOP-32
Contacts	32
Reach Compliance Code	compli
ECCN code	EAR99
Maximum access time	150 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bi
Memory IC Type	FLASH
memory width	8
Humidity sensitivity level	3
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
type	NOR TYPE
width	8 mm
Base Number Matches	1

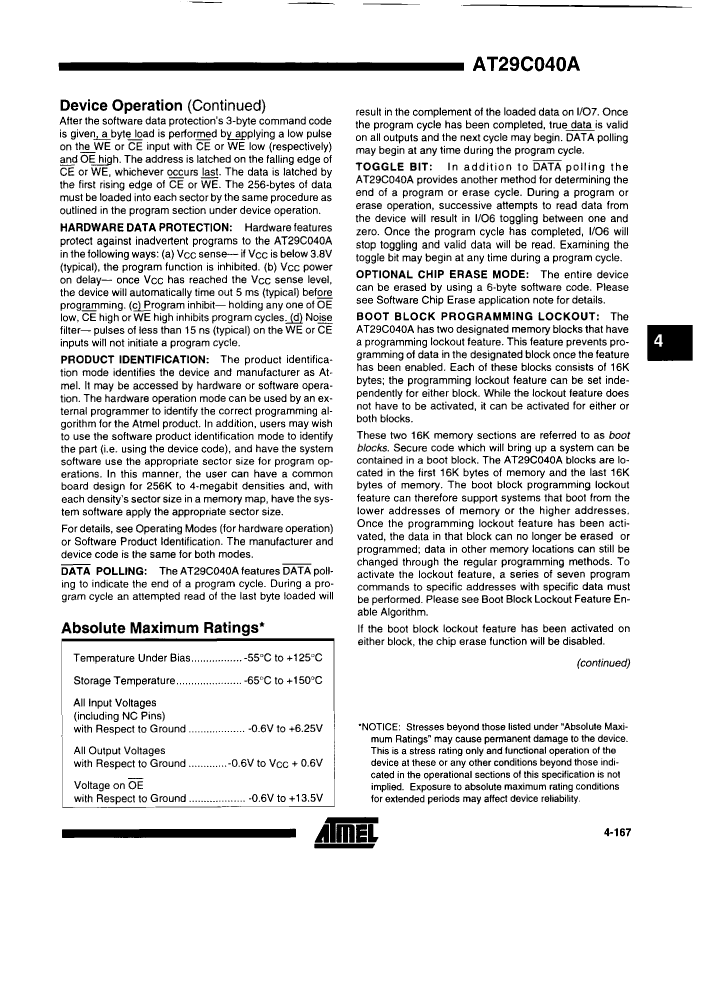

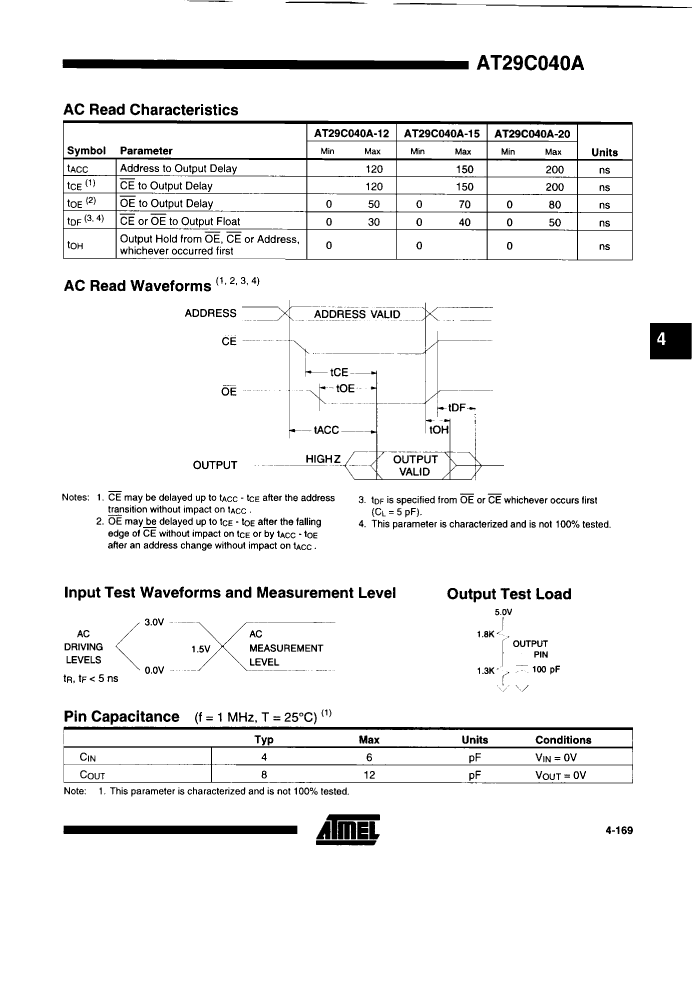

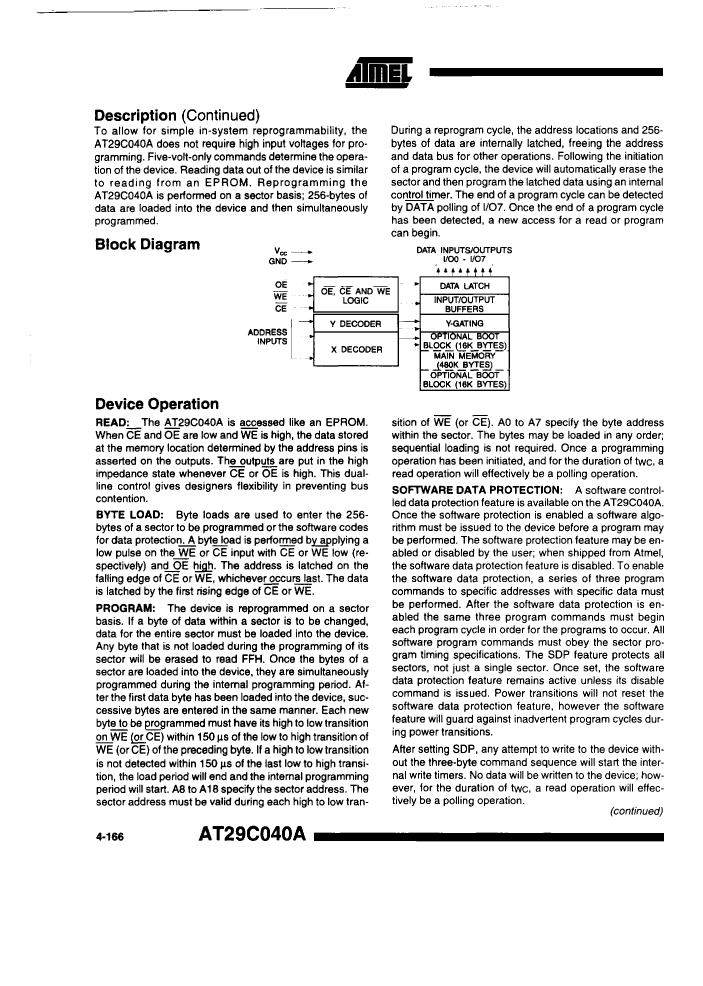

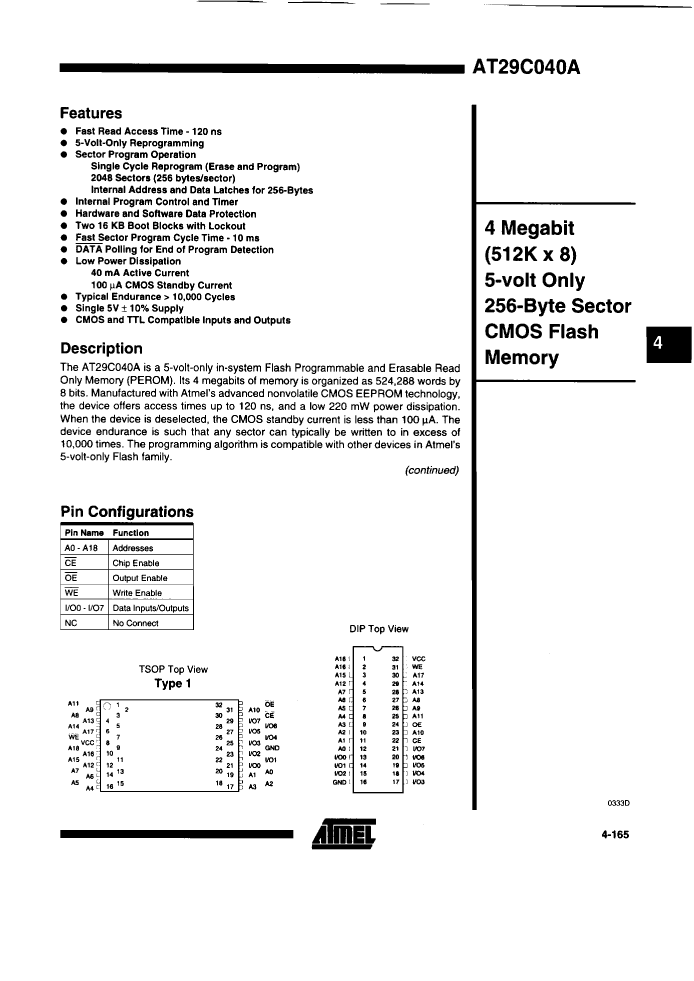

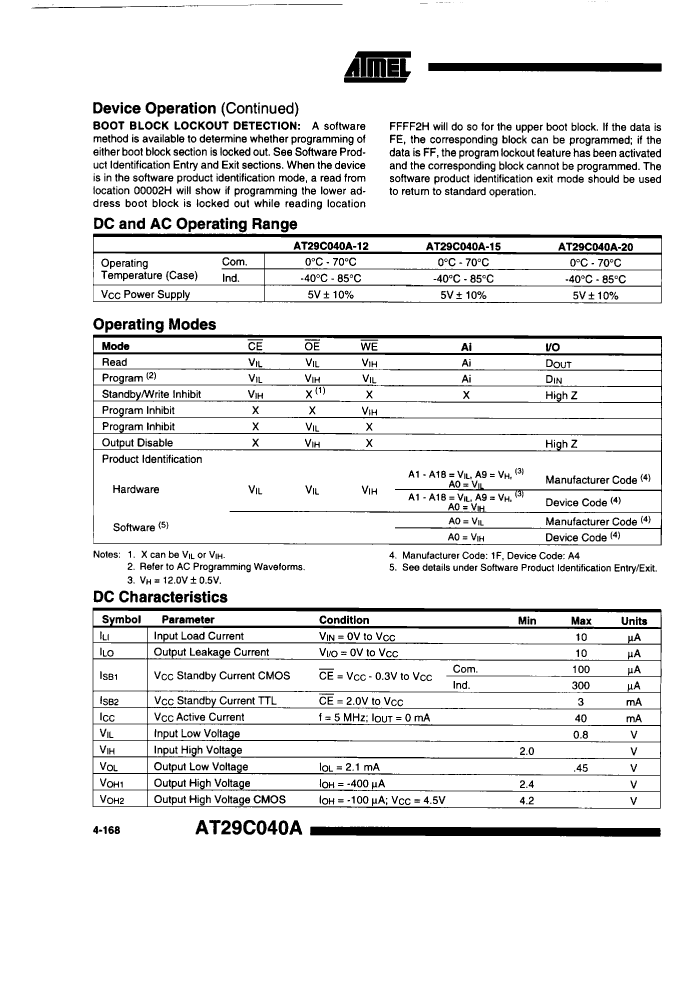

Preview

Download Datasheet

View All

AT29C040A-15TIT/R Related Products

	AT29C040A-15TIT/R	AT29C040A-12TUT/R	AT29C040A-12TCT/R	AT29C040A-12TIT/R	AT29C040A-15TUT/R	AT29C040A-15TCT/R
Description	Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP-32	Flash, 512KX8, 120ns, PDSO32, PLASTIC, TSOP-32	Flash, 512KX8, 120ns, PDSO32, PLASTIC, TSOP-32	Flash, 512KX8, 120ns, PDSO32, PLASTIC, TSOP-32	Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP-32	Flash, 512KX8, 150ns, PDSO32, PLASTIC, TSOP-32
Is it lead-free?	Contains lead	Lead free	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	conform to	incompatible
Parts packaging code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
package instruction	PLASTIC, TSOP-32	PLASTIC, TSOP-32	PLASTIC, TSOP-32	PLASTIC, TSOP-32	PLASTIC, TSOP-32	PLASTIC, TSOP-32
Contacts	32	32	32	32	32	32
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	120 ns	120 ns	120 ns	150 ns	150 ns
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e3	e0	e0	e3	e0
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm
memory density	4194304 bi	4194304 bi	4194304 bi	4194304 bi	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Humidity sensitivity level	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	240	260	240	240	260	240
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN LEAD	Matte Tin (Sn)	TIN LEAD	TIN LEAD	MATTE TIN	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Base Number Matches	1	1	1	1	1	-
Other features	-	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	-	AUTOMATIC WRITE
