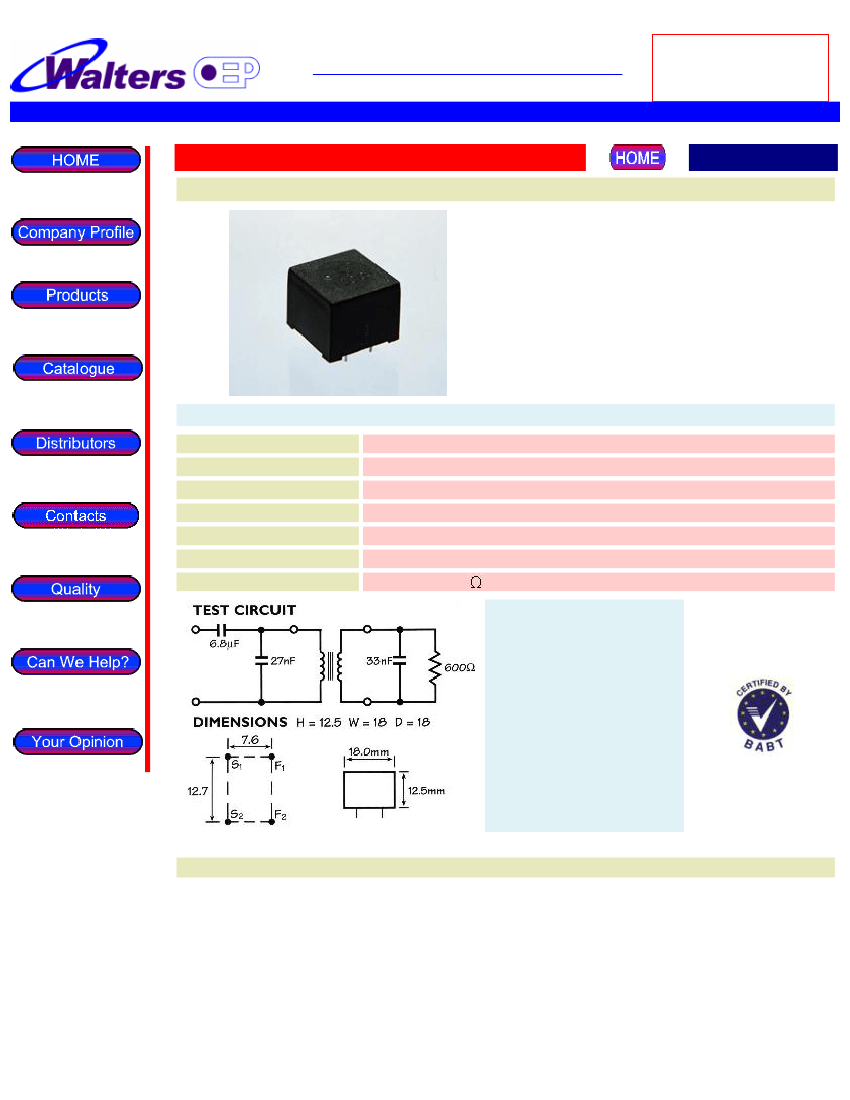

low profile line isolation transformers
0800 316 6060
Type OEP 1200 1:1 600 Ohm
Provides isolation between modems or similar
devices and telephone Iines. This transformer is
designed for use in voice or data transmission
circuits where the line d.c. is diverted from the
windings by a choke or solid state device. The use
of this transformer should enable the equipment it is
used with to comply with the relevant requirements
of BS6305.
Resin encapsulated in flame retardant cases. The unit is PCB Mounting
Insertion loss
Return loss
Isolation longitudinal
Saturation
Balance
Signal/noise ratio
dc resistance
68
1.5dB max @ 2kHz.
-20dB @ 200Hz-4kHz.
3.54kV RMS or 5kV dc.
10V RMS 65V peak.
Better than 80dB 200Hz-4kHz.
> 33dB
±10% (NB. not to be tested with a dc current)
Approved to EN60950 and
EN41003
BABT Certificate of
Recognition CR/0126

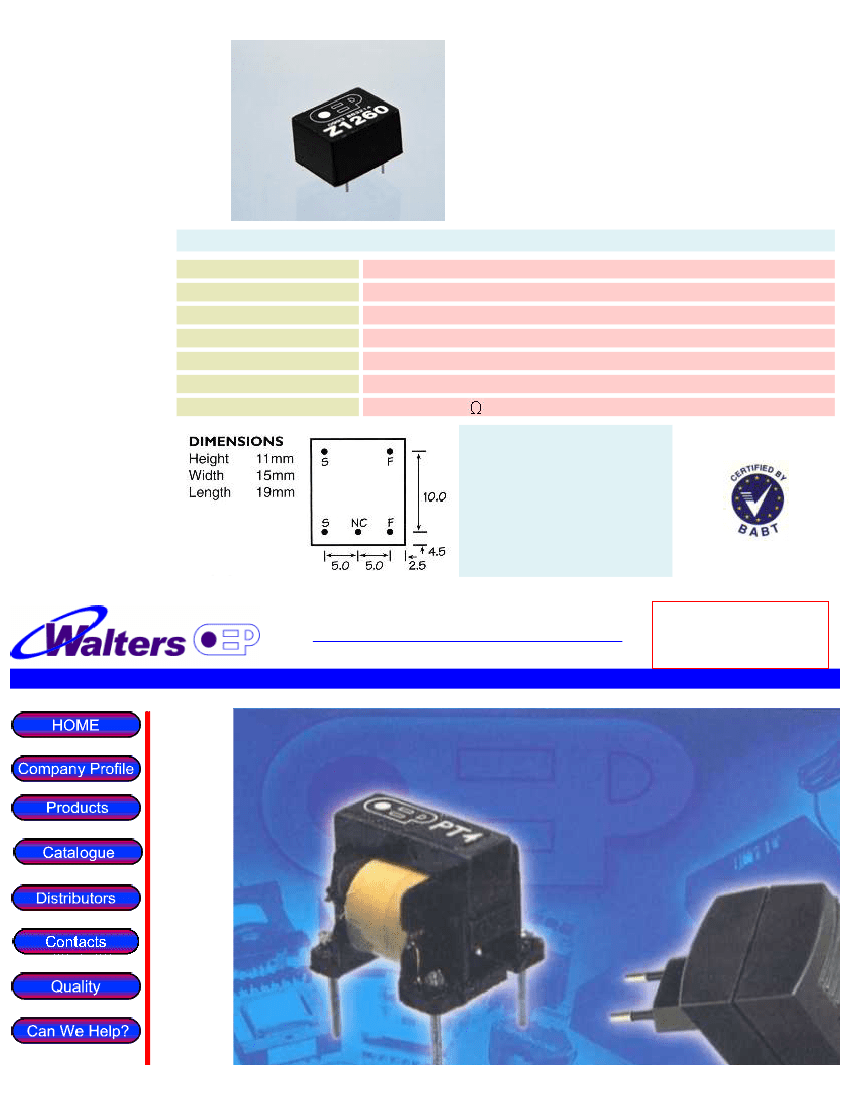

Type Z1260 1:1 600 Ohm
file:///C|/Documents%20and%20Settings/BennettR/Desktop/MISSING/OEP%20Home%20Page.htm (1 of 3)24/03/2006 09:50:37
OEP Home Page
Provides isolation between modems or similar
devices and telephone Iines. This transformer is
designed for use in voice or data transmission
circuits where the line d.c. is diverted from the
windings by a choke or solid state device. The use
of this transformer should enable the equiptment it
is used with to cpmly with the relevent requirments
of BS6305.
This is a lower profile version of the OEP 1200
transformer.
Resin encapsulated in flame retardant cases. The unit is PCB Mounting
Insertion loss
Return loss
Isolation longitudinal
Saturation
Balance
Signal/noise ratio
dc resistance
68
1.5dB max @ 2kHz.
-20dB @ 200Hz-4kHz.
3.5kV RMS or 5kV dc.
< 10V RMS 65V peak.
Better than 80dB 200Hz-4kHz.
> 33dB
±10% (NB. not to be tested with a dc current)
Approved to EN60950 and
EN41003
BABT Certificate of
Recognition CR/0126
