MC74HC30DS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74HC30DS

MC74HC30DS: DescriptionIC,LOGIC GATE,8-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size145KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74HC30DS Overview

IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC

MC74HC30DS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	44 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

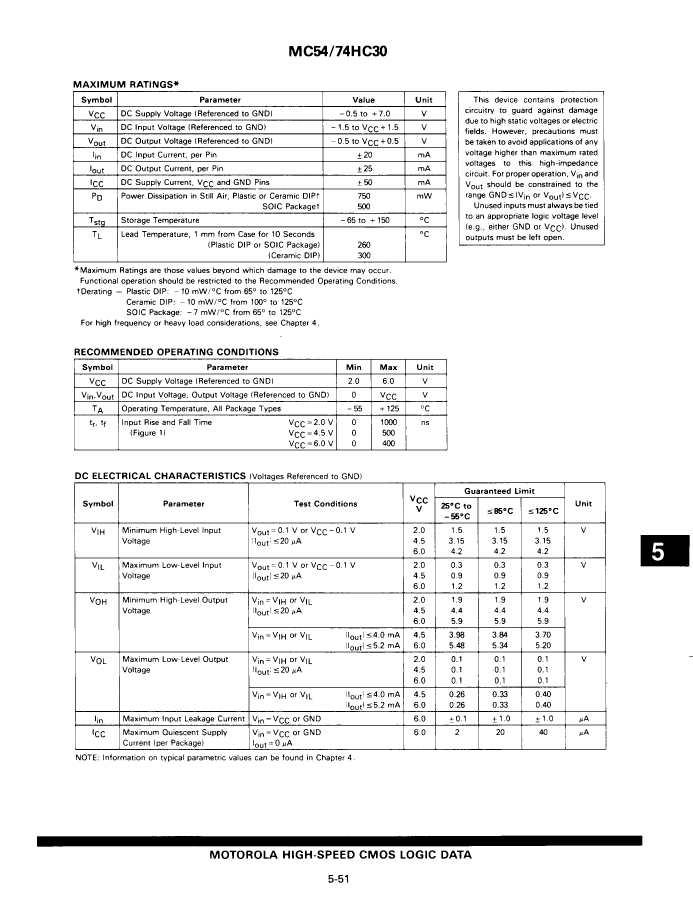

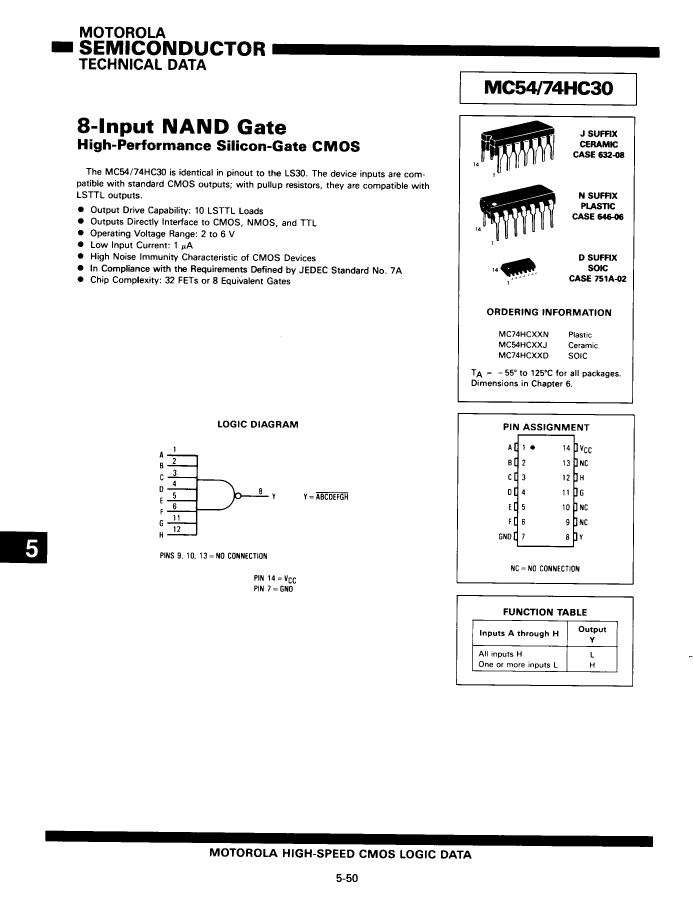

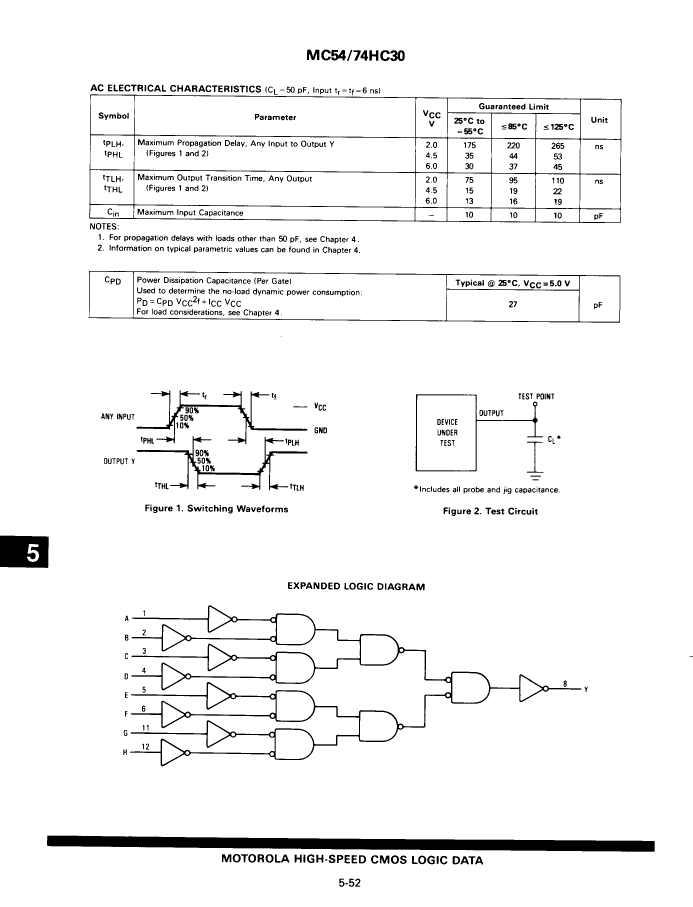

Preview

Download Datasheet

View All

MC74HC30DS Related Products

	MC74HC30DS	54HC30M/B2AJC	54HC30/BCAJC	MC74HC30DD	MC74HC30NDS	MC74HC30J
Description	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,LLCC,20PIN,CERAMIC	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,DIP,14PIN,CERAMIC	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,DIP,14PIN,PLASTIC	IC,LOGIC GATE,8-INPUT NAND,HC-CMOS,DIP,14PIN,CERAMIC
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SOP, SOP14,.25	QCCN, LCC20,.35SQ	DIP,	SOP, SOP14,.25	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-PDSO-G14	S-XQCC-N20	R-CDIP-T14	R-PDSO-G14	R-PDIP-T14	R-XDIP-T14
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of terminals	14	20	14	14	14	14
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOP	QCCN	DIP	SOP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	CHIP CARRIER	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
surface mount	YES	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	NO LEAD	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible
JESD-609 code	e0	e0	-	e0	e0	e0
Encapsulate equivalent code	SOP14,.25	LCC20,.35SQ	-	SOP14,.25	DIP14,.3	DIP14,.3
power supply	2/6 V	2/6 V	-	2/6 V	2/6 V	2/6 V
Schmitt trigger	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm	2.54 mm	2.54 mm
