HT9315FD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HT9315FD

HT9315FD: DescriptionTelephone Circuit, CMOS, PDIP20; CategoryWireless rf/communication Telecom circuit; File Size1MB，26 Pages; ManufacturerHoltek; Websitehttp://www.holtek.com/

Download Datasheet Parametric Compare View All

HT9315FD Overview

Telephone Circuit, CMOS, PDIP20

HT9315FD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Holtek
package instruction	DIP, DIP20(UNSPEC)
Reach Compliance Code	unknown
crystal frequency	3.58 MHz
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20(UNSPEC)
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2.5/5 V
Certification status	Not Qualified
Maximum slew rate	2 mA
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL

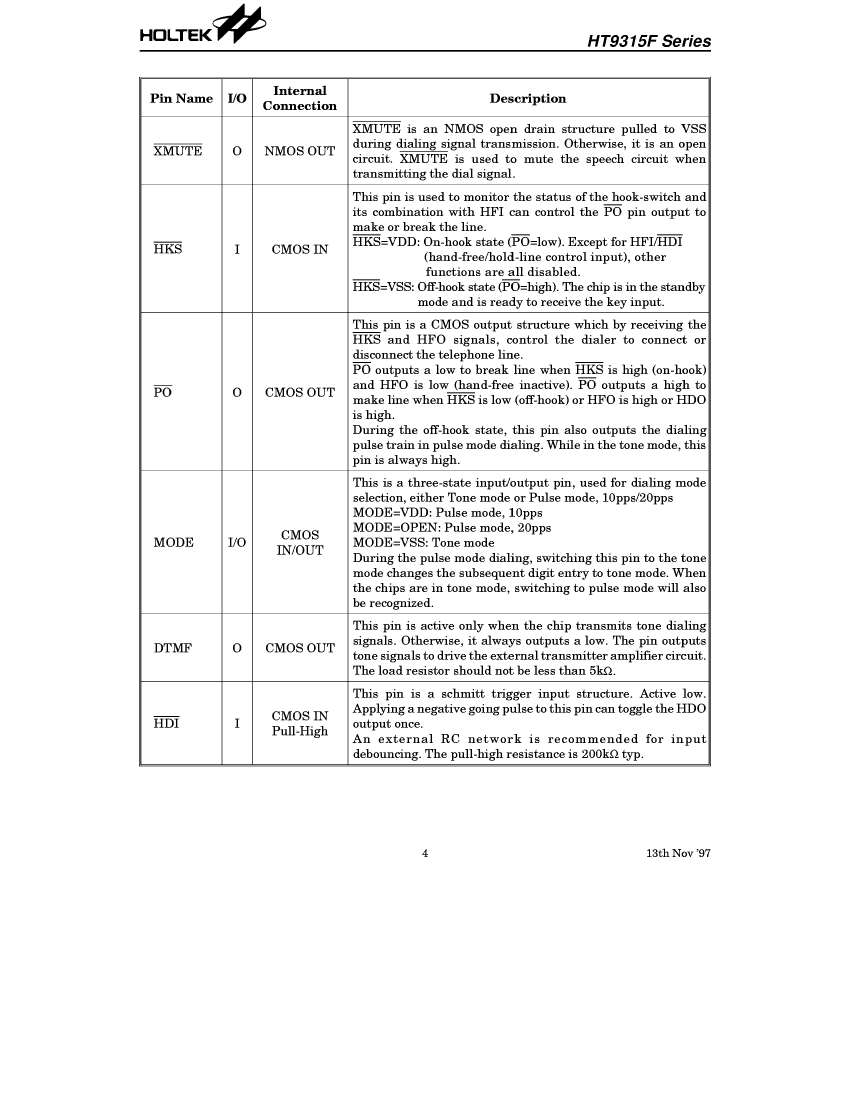

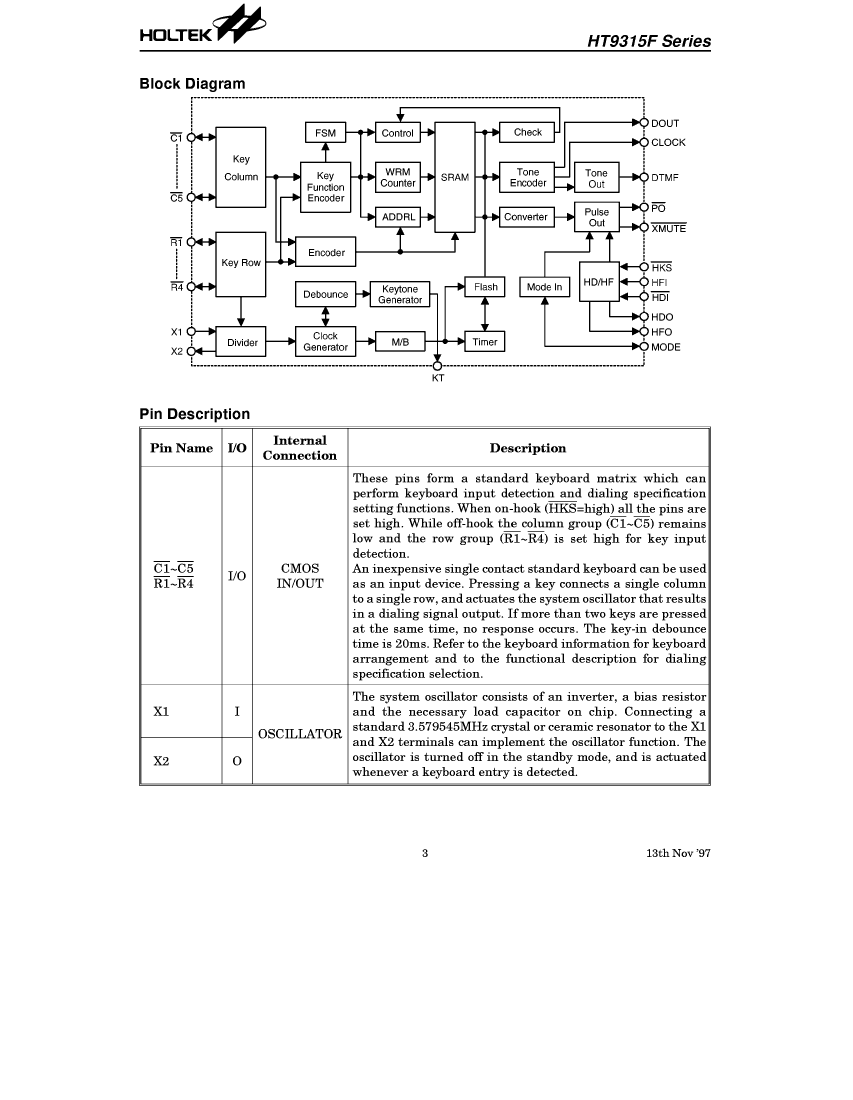

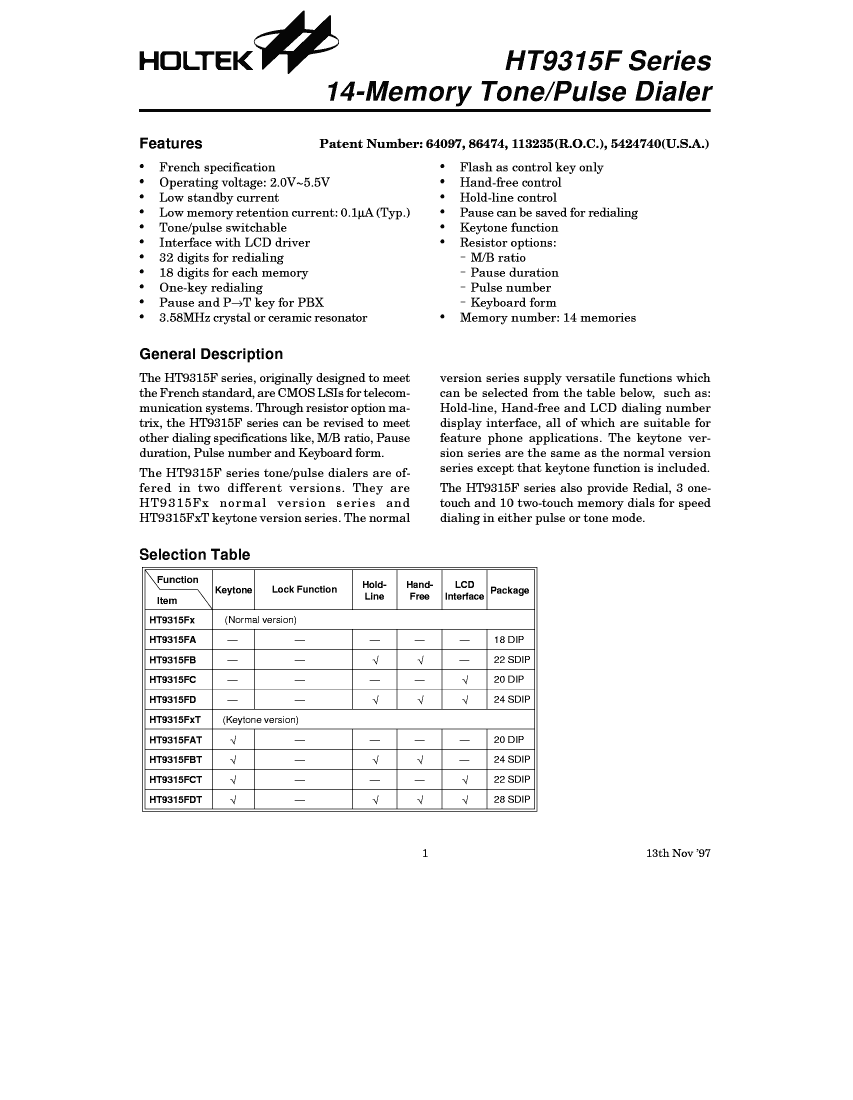

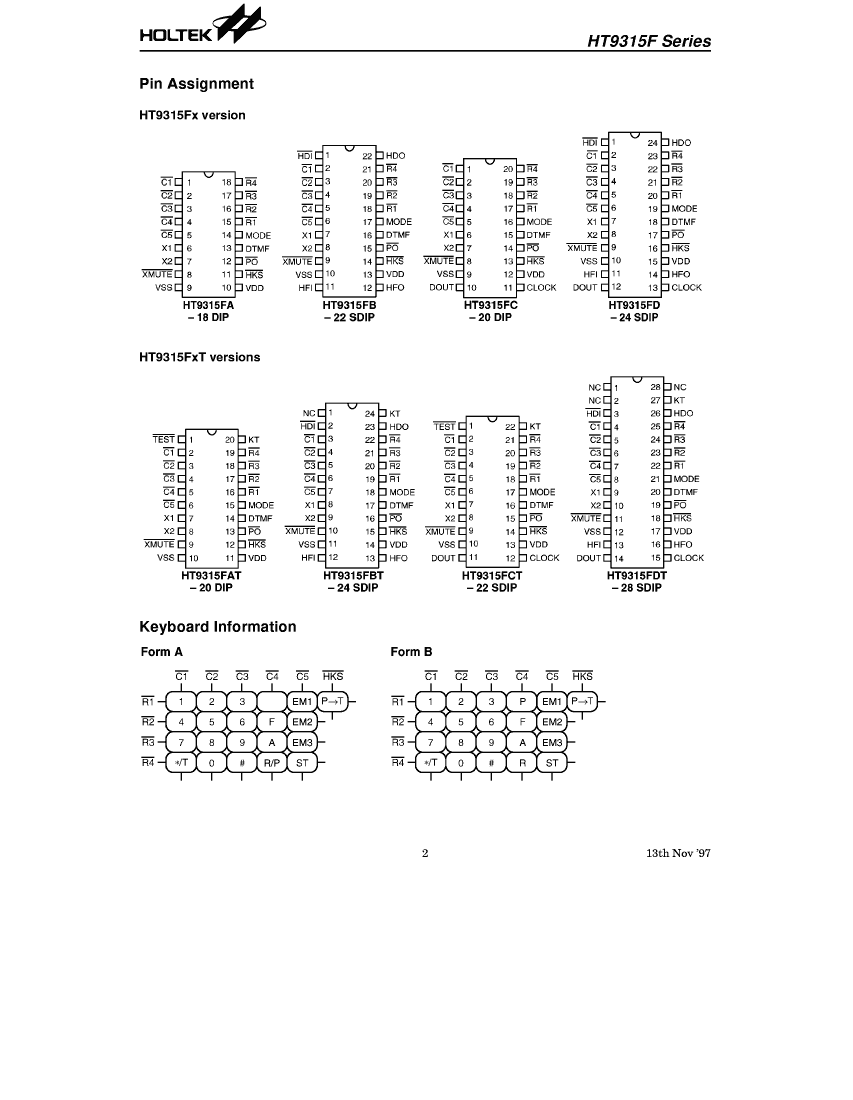

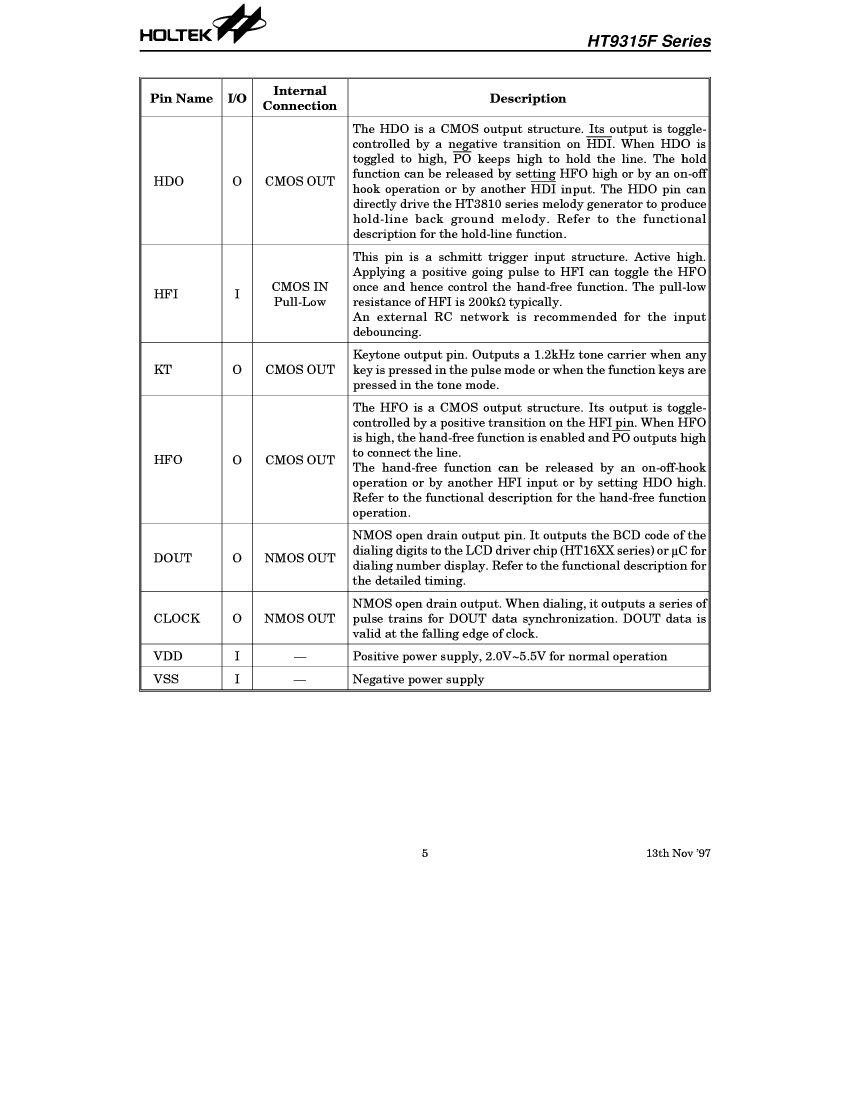

HT9315FD Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HT9315FD Related Products

	HT9315FD	HT9315FBT	HT9315FC	HT9315FA	HT9315FCT	HT9315FB	HT9315FDT	HT9315FAT
Description	Telephone Circuit, CMOS, PDIP20	Telephone Circuit, CMOS, PDIP24	Telephone Circuit, CMOS, PDIP20	Telephone Circuit, CMOS, PDIP18	Telephone Circuit, CMOS, PDIP22	Telephone Circuit, CMOS, PDIP22	Telephone Circuit, CMOS, PDIP28	Telephone Circuit, CMOS, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Holtek	Holtek	Holtek	Holtek	Holtek	Holtek	Holtek	Holtek
package instruction	DIP, DIP20(UNSPEC)	SDIP, SDIP24(UNSPEC)	DIP, DIP20(UNSPEC)	DIP, DIP18(UNSPEC)	DIP, DIP22(UNSPEC)	DIP, DIP22(UNSPEC)	DIP, DIP28(UNSPEC)	DIP, DIP20(UNSPEC)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
crystal frequency	3.58 MHz	3.58 MHz	3.58 MHz	3.58 MHz	3.58 MHz	3.58 MHz	3.58 MHz	3.58 MHz
JESD-30 code	R-PDIP-T20	R-PDIP-T24	R-PDIP-T20	R-PDIP-T18	R-PDIP-T22	R-PDIP-T22	R-PDIP-T28	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	20	24	20	18	22	22	28	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SDIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20(UNSPEC)	SDIP24(UNSPEC)	DIP20(UNSPEC)	DIP18(UNSPEC)	DIP22(UNSPEC)	DIP22(UNSPEC)	DIP28(UNSPEC)	DIP20(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE, SHRINK PITCH	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	2.5/5 V	2.5/5 V	2.5/5 V	2.5/5 V	2.5/5 V	2.5/5 V	2.5/5 V	2.5/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
