1. Descriptions:
Airwave 2.4GHz Audio/Video wireless RF module contains one Transmitter and on Receiver. Using of
the most popular 2.4GHz ISM band and designed with high reliability. Airwave RF module is compliance
with the criteria of FCC and R&TTE which can transmit/receive a wide band audio & video signals up to 300
feet in open area.
2. Feature:
Worldwide 2.4GHz ISM band (2400MHz½2483MHz).
Conform to R&TTE & FCC stipulation.
Compatible with both PAL and NTSC video formats.
Compact size and low power consumption.
Highly efficient FM-FM modulation/demodulation scheme.
Integrating Audio/Video input and output into one module base band PCB
3. Application:
AV Sender
Baby monitor
Surveillance
Wireless Camera
4. Function block:
2.4 GHz½2.483 GHz
Zo=50 ohm
LNA
LPF
Mixer
SAW
IF Amp
FM PLL
Demod.
Video
Audio/L
Filter
CH1:2414 MHz, Lo=1934.5 MHz
CH2:2432 MHz, Lo=1952.5 MHz
CH3:2450 MHz, Lo=1970.5 MHz
CH4:2468 MHz, Lo=1988.5 MHz
Note: Lo=RF-IF
VCO
Audio/
Digital Control CKT
PLL
AIRWAVE TECHNOLOGIES INC.
4F, No.9 Industry E. 9 RD., Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C.
TEL : 886-3-5778099 Fax 886-3-5778199
Copyright
©
2008 by Airwave Technologies Inc.
All Specification are subject to change without notice.
www.airwave.com.tw
th
CH1 CH2 CH3
Channel Select
Doc No :
Date 3,24,2009
Design Kit - 2.4 GHz Wideband FM Receiver Module
Page 5 of 12 Rev
0

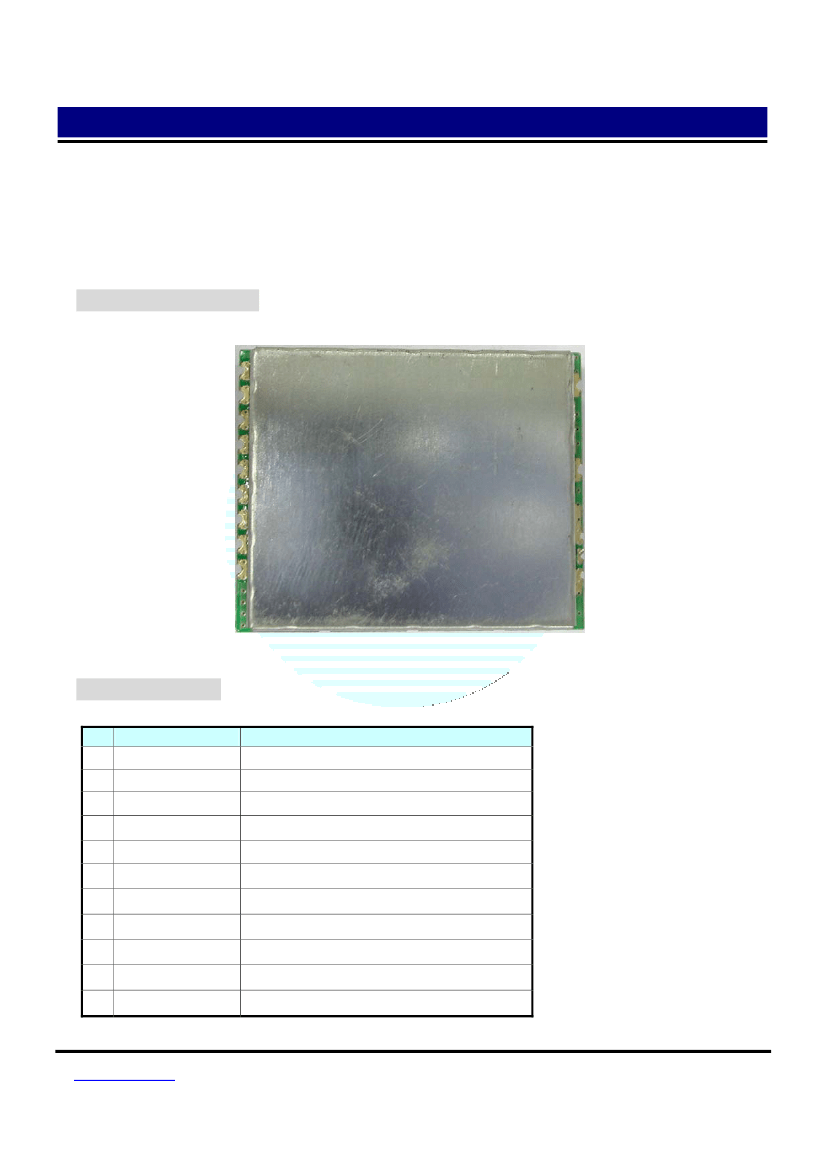

5. PIN Define (Top View)
Pin 01
Pin 02
Pin 03
Pin 04
Pin 05
Pin 06
Pin 07
Pin 08
Pin 09
VCC
Bypass
GND
Audio_R
Audio_L
Video
CH3
CH2
CH1
GND
RF IN
GND
Pin 10
Pin 11
Pin 12
6. PIN Descriptions:
PIN
01
02
03
04
05
06
07
08
09
10
11
NAME
VCC
BYPASS
GND
Audio_R
Audio_L
Video
CH3
CH2
CH1
GND
RF IN
Descriptions
DC +5V power supply in
)
.
Bypass capacitor.
Ground.
Right sound signal output.
Left sound signal output.
Video signal output.
Channel select. (See table 1).
Channel select. (See table 1).
Channel select. (See table 1).
Ground.
RF received signal input
