Part Number:
Status:
Overview:
Description:
03-06-2152
Active
Standard .062"
1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits, without
Mounting Ears
Documents:
3D Model
Drawing (PDF)
Product Specification PS-02-06 (PDF)
RoHS Certificate of Compliance (PDF)
Series

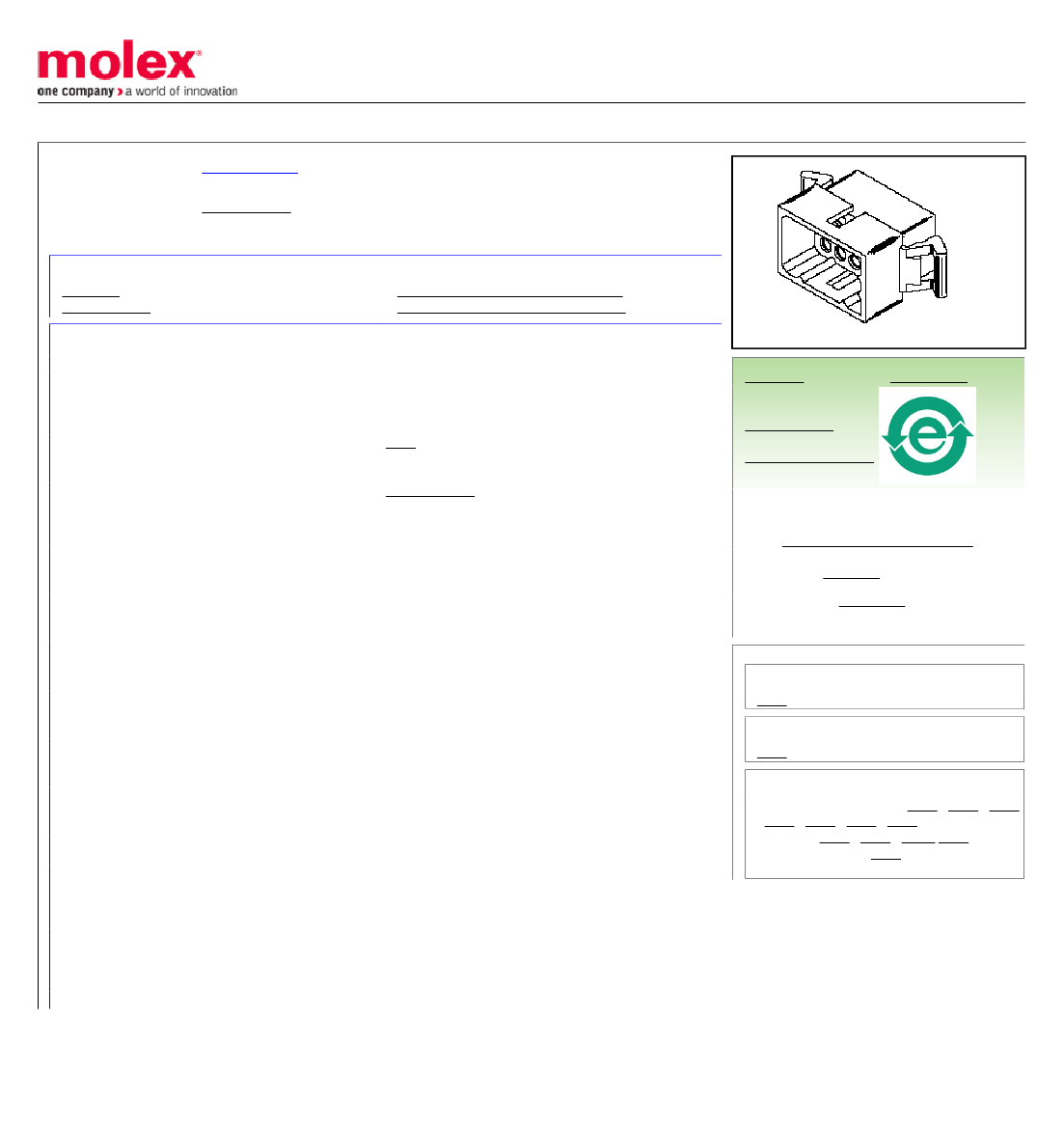

image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Overview
Product Name
Crimp Housings
1625
Power, Wire-to-Wire
Polarized to Mating Part
Standard .062"
Standard .062"
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
15
3x5
Natural
94V-2
Plug
No
None
Yes
Nylon
3
Bag
No
3.68mm
3.68mm
Yes
No
-40°C to +105°C
Search Parts in this Series
1625Series
Mates With
1625 Receptacle
Use With
Female Crimp Terminals 1561 , 4559 , 4529
, 2190 , 2189 , 1787 , 1855 . Male Crimp
Terminals 1560 , 1786 , 1854. 1778 Male
PC Tail Terminals. 1779 Female PC Tail
Terminals
Electrical
Current - Maximum per Contact
5A
Material Info
Old Part Number
UPC
1625-15P1
800754320320
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-02-06
SD-1625-15*
