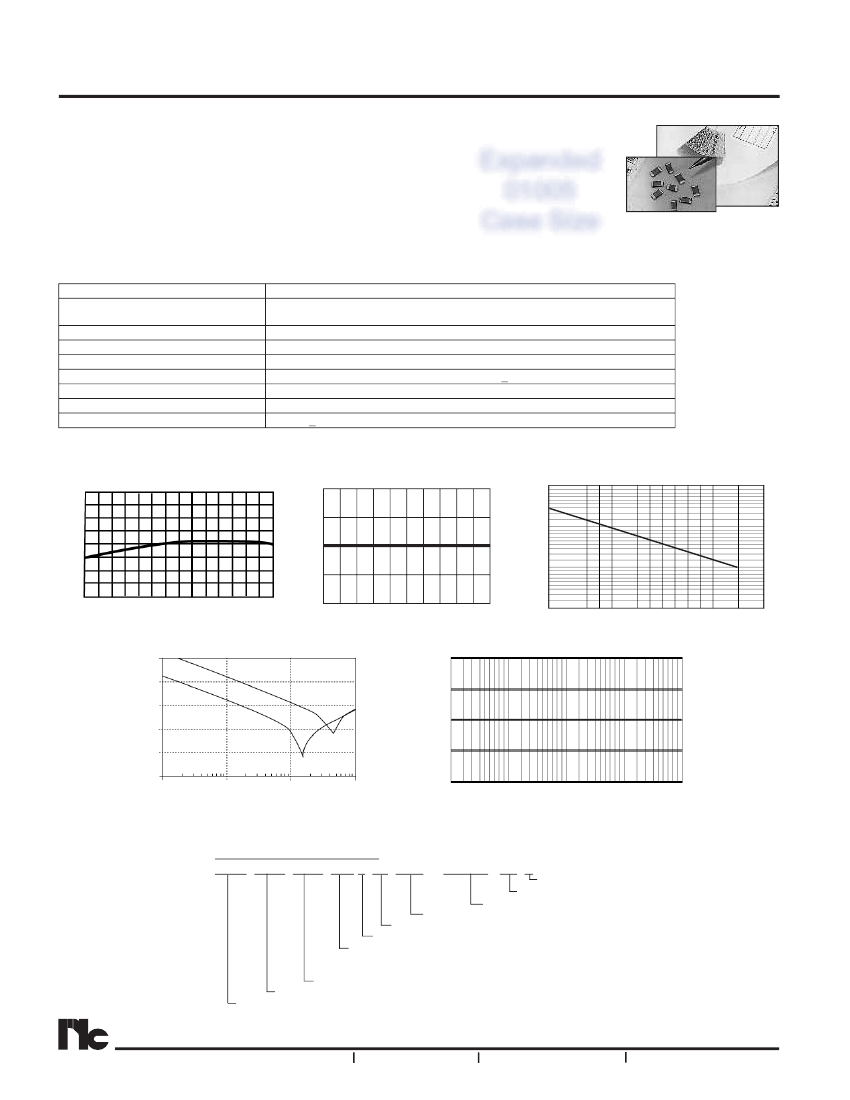

Multilayer Ceramic Chip Capacitors
FEATURES
•
CLASS I DIELECTRIC, TEMPERATURE COMPENSATING
•
HIGH STABILITY OVER TIME, VOLTAGE AND
TEMPERATURE CHANGES
•
LOW DIELECTRIC LOSS
•
NICKEL BARRIER TERMINATIONS AND EXCELLENT
MECHANICAL STRENGTH
SPECIFICATIONS NPO
Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Temperature Characteristics
Rated Voltages
Dissipation Factor
insulation Resistance
Dielectric Withstanding Voltage
Test Conditions (EIA-198-2E)
NMC Series NPO
Expanded
01005
Case Size
0.47pF to 0.068μF
Below 10pF: ±0.1pF(B), ± 0.25pF(C), ±0.5pF(D)
10pF and above: ±1%(F), ±2%(G), ±5% (J)
-55°C ~ +125°C
0 ± 30ppm/°C
25Vdc, 35Vdc, 50Vdc (see NMC-H Series for higher voltages)
For values >30pF 0.1% @ 25°C; For values < 30pF Q=400+20 x C (C in pF)
10,000Megohms min. or 500Megohm/μF (min.), whichever is less @ +25°C
250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current
<1000pF; 1MHz, 1.2Vrms max. or >1000pF; 1KHz, 1.2Vrms max.
Typical NPO Temperature Coefficient
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-55 -25
0 25
50 75 100 125
Temperature (Degrees Celsius)
0.2
0.1
0.0
-0.1
-0.2
Voltage Coefficient of
Capacitance - NPO
10,000
Minimum Insulation Resistance
vs Temperature
1000
100
0 10 20 30 40 50 60 70 80 90 100
DC Volts Applied
0.2
0.1
10
10
25
100 150
Temperature (Degrees C)
Impedance vs. Frequency NPO
1000
100
10
1
1000pF
100pF
Aging Rate - NPO
0.0
-0.1
0.1
0.01
1
10
100
Frequency (MHz)
1000
-0.2
1
10
100
Hours
1000
10000
PART NUMBER SYSTEM
NMC 0805 NPO 101 J 50 TRP or TRPLP 3K F
RoHS Compliant
Optional Reel Qty (3K=3,000pcs)
Tape & Reel (Embossed Plastic Carrier)
Tape & Reel (Punched carrier)
Voltage (Vdc)
Capacitance Tolerance Code (see chart)
Capacitance Code, expressed in pF, first 2 digits are
significant, 3rd digit is no. of zeros, “R” indicates
decimal for under 10pF
Temperature Characteristic
Size Code (see chart)
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
1
Multilayer Ceramic Chip Capacitors
EIA Case Size
Length (L)
Width (W)
Thickness max. (T)
Termination Width (P)
Capacitance
0.47pF ~ 9.1pF
10pF ~ 22pF
24pF ~ 0.001μF
0.0012μF
0.0015μF
0.0018μF
0.0022μF
0.0027μF
0.0033μF
0.0039μF
0.0047μF
0.0056μF
0.0068μF
0.0075μF
0.0082μF
0.0091μF
0.01μF
0.012μF
0.015μF
0.018μF
0.022μF
0.027μF
0.033μF
0.039μF
0.047μF
0.056μF
1210
3.2±0.2
2.5±0.2
1.80
0.25 ~ 0.71
Working Voltage (Vdc)
16 25 50 100 10 16 25 50 100 10 16 25 50 100
0805
2.0±0.2
1.25±0.2
1.45
0.25 ~ 0.71
1206
3,2±0.2
1.6±0.2
1.80
0.25 ~ 0.71
NMC Series NPO
1812
4.5±0.3
3.2±0.25
1.80
0.25 ~ 0.76
25
50
100
2225
5.70±0.4
6.35±0.25
1.80
0.25 ~ 1.02
50
100
See the
previous page
*
*
**
**
**
**
*1.90mm maximum thickness, **2.60mm maximum thickness
See NMC High Capactiance datasheet for higher capacitance values
or NMC-H High Voltage datasheet for higher voltage ratings
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
3
