HM13MS32B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM13MS32B

HM13MS32B: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size126KB，2 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric Compare View All

HM13MS32B Overview

Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,

HM13MS32B Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: IEC 917; IEC 61076-4-101, EMI SHIELDED, HIGH DENSITY, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Board mount options	LOCATING POSTS
body width	0.606 inch
subject depth	0.53 inch
body length	0.982 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.7228 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	HM
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	HOUSING SIDE
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

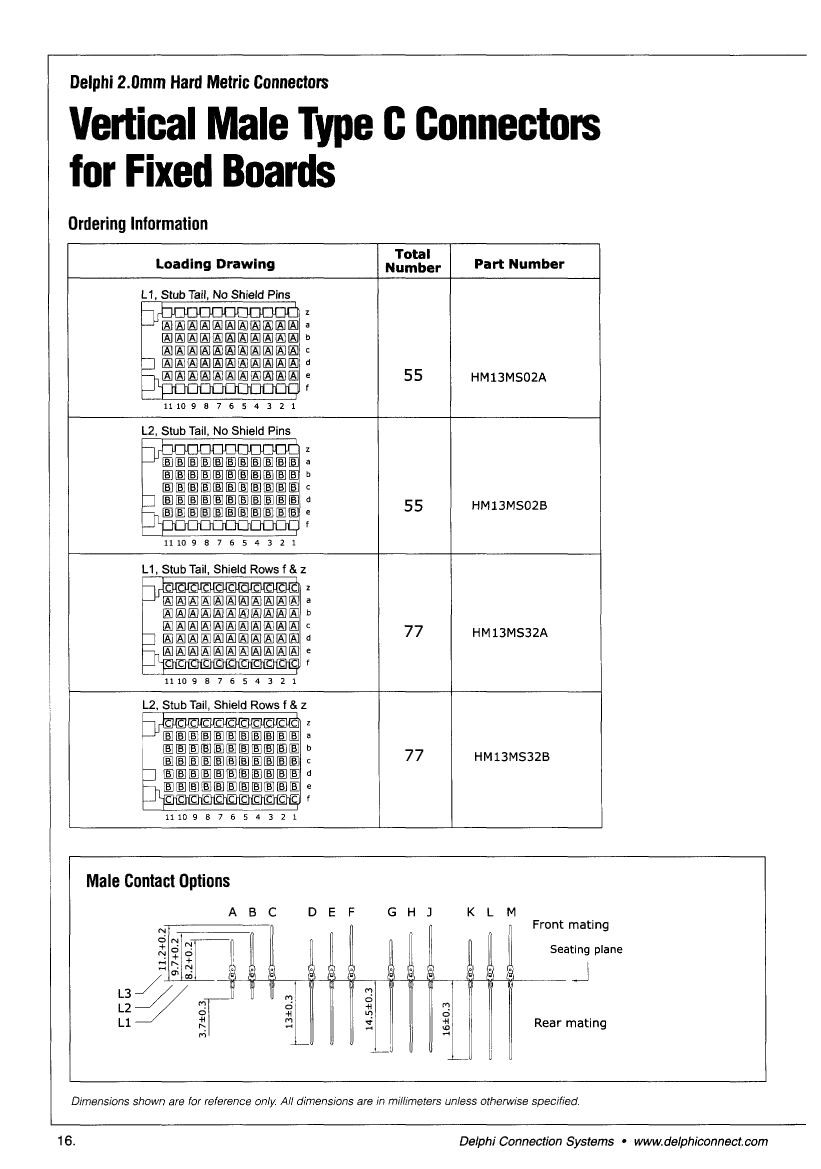

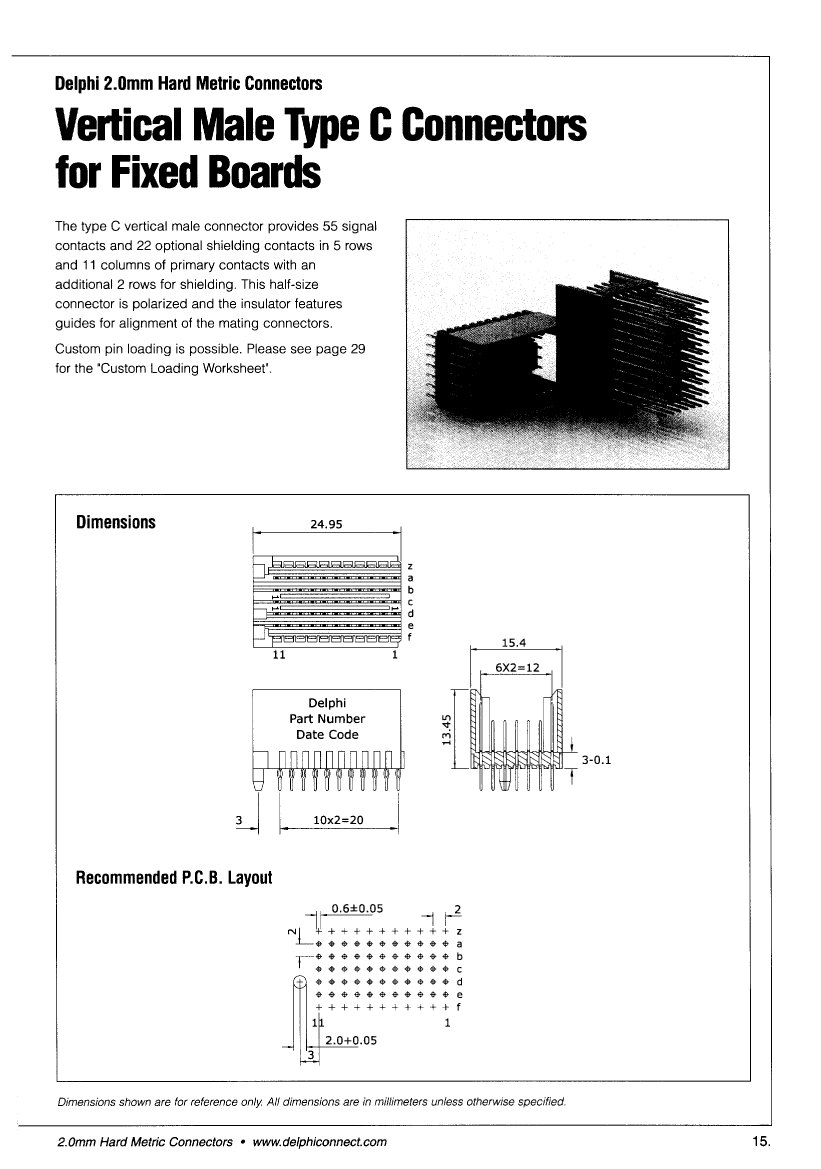

HM13MS32B Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HM13MS32B Related Products

	HM13MS32B	HM13MS02A	HM13MS02B	HM13MS32A
Description	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,
Maker	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems	Delphi Connection Systems
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: IEC 917; IEC 61076-4-101, EMI SHIELDED, HIGH DENSITY, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	STANDARDS: IEC 917; IEC 61076-4-101, HIGH DENSITY	STANDARDS: IEC 917; IEC 61076-4-101, HIGH DENSITY	STANDARDS: IEC 917; IEC 61076-4-101, EMI SHIELDED, HIGH DENSITY, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.606 inch	0.606 inch	0.606 inch	0.606 inch
subject depth	0.53 inch	0.53 inch	0.53 inch	0.53 inch
body length	0.982 inch	0.982 inch	0.982 inch	0.982 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
maximum insertion force	.7228 N	.7228 N	.7228 N	.7228 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM	HM	HM	HM
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	7	5	5	7
Number of rows loaded	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	55	55	55	55
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N
