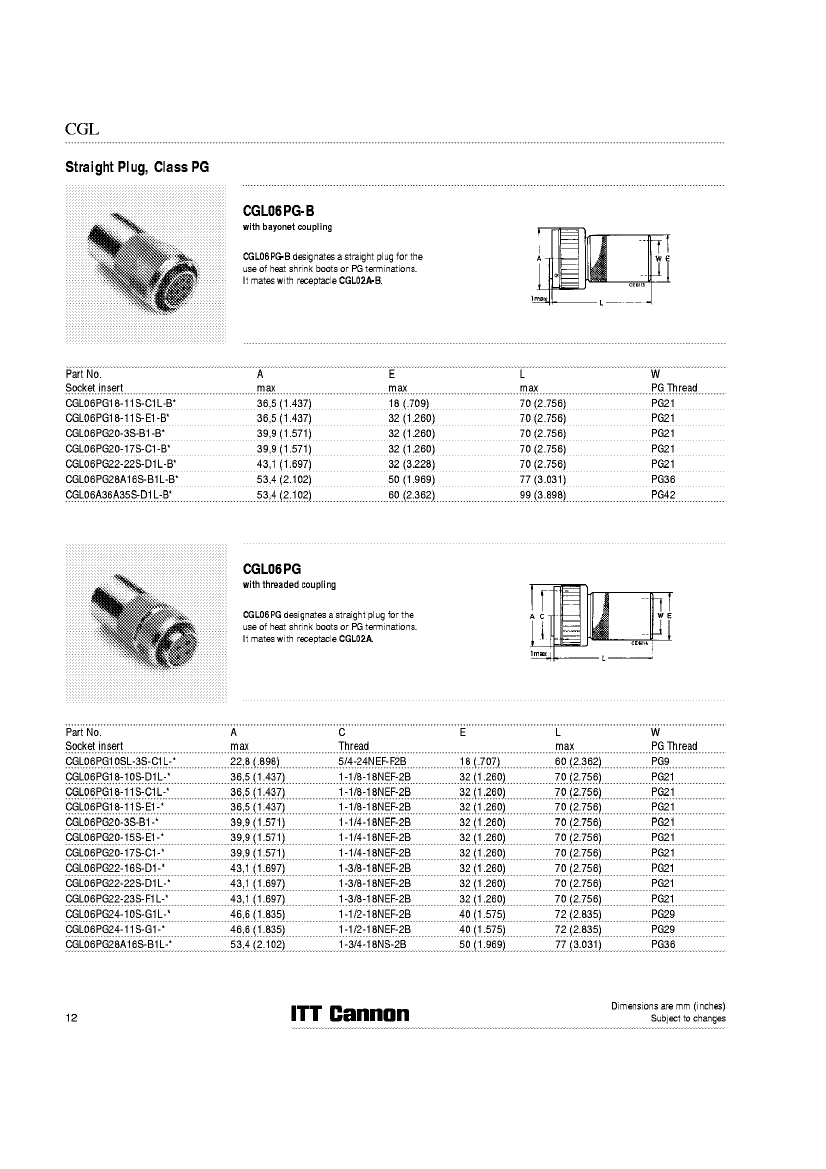

CGL06PG datasheet, PDF - EEWORLD Datasheet

CGL06PG: DescriptionCircular Connector, Aluminum Alloy, Female, Plug; CategoryThe connector The connector; File Size449KB，6 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

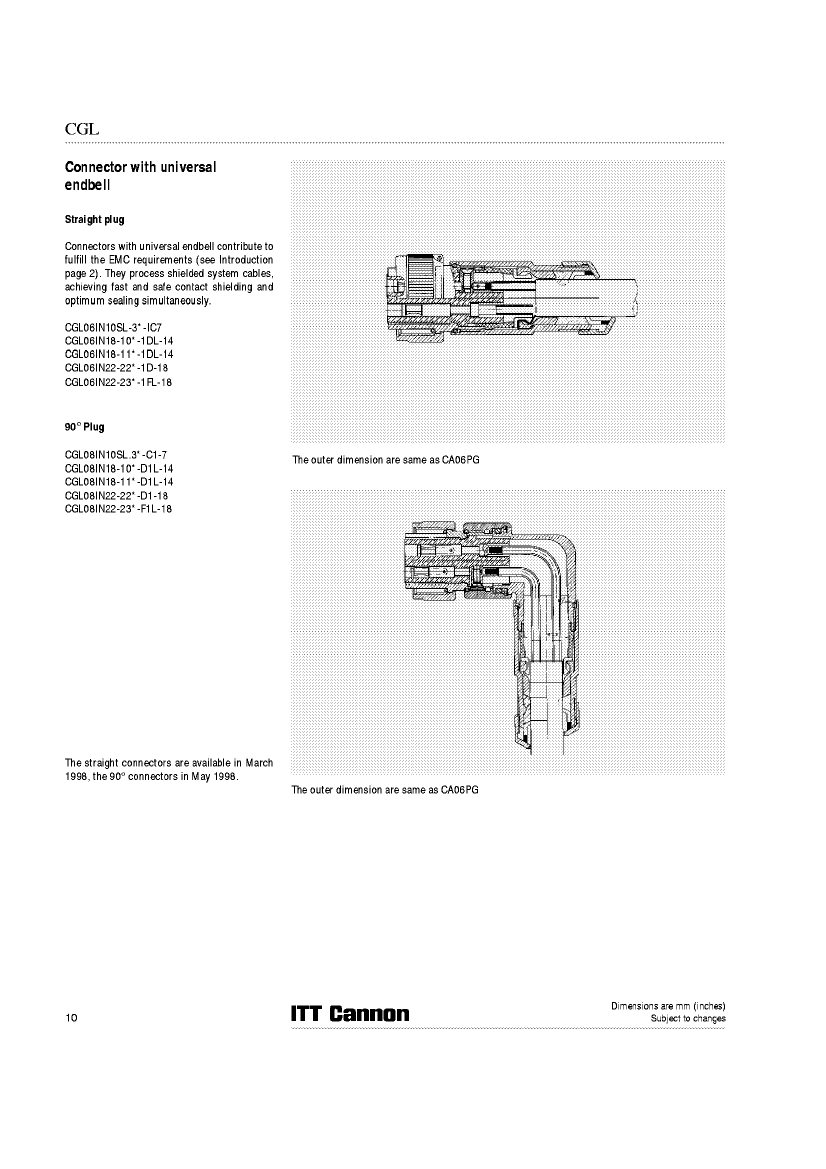

CGL06PG Overview

Circular Connector, Aluminum Alloy, Female, Plug

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	FIRST MATE LAST BREAK, MAX CONTACTS (SERIES)=9
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CGL
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	WATERPROOF
Shell surface	NICKEL
Shell material	ALUMINUM

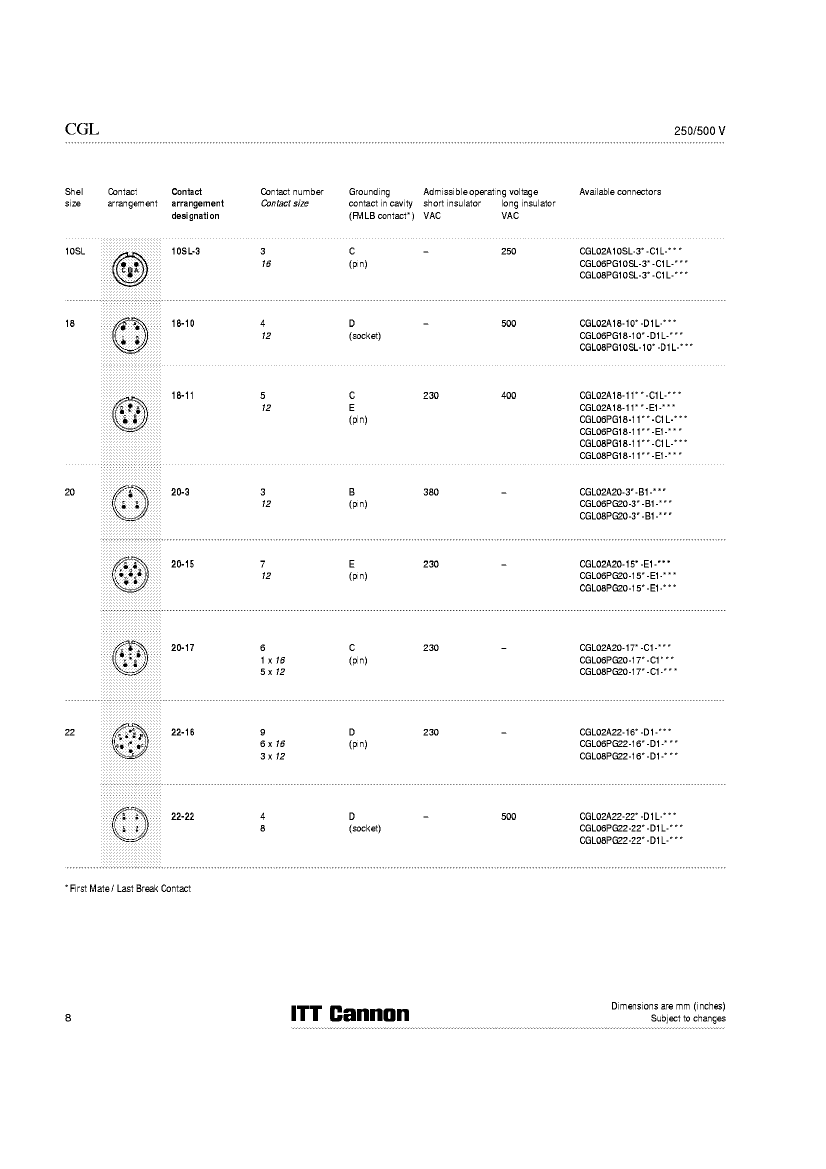

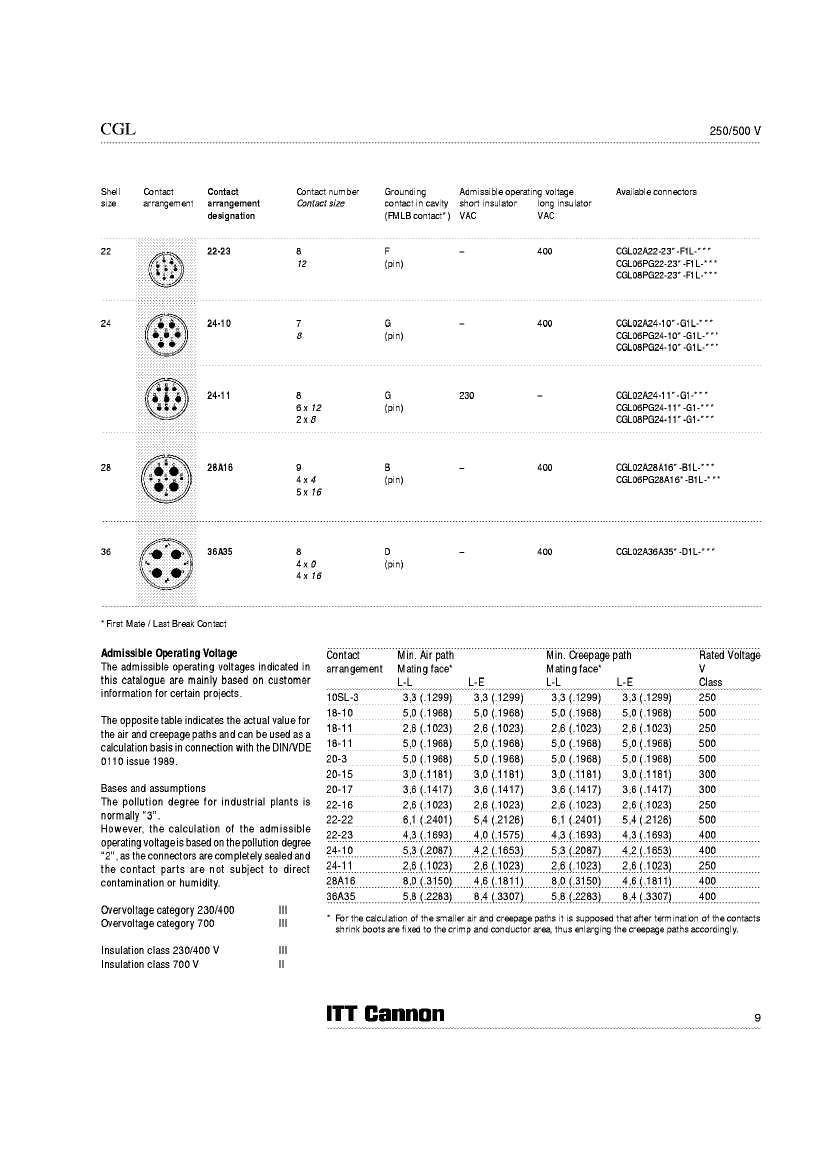

Housing size	10; 18; 20; 22; 24; 28

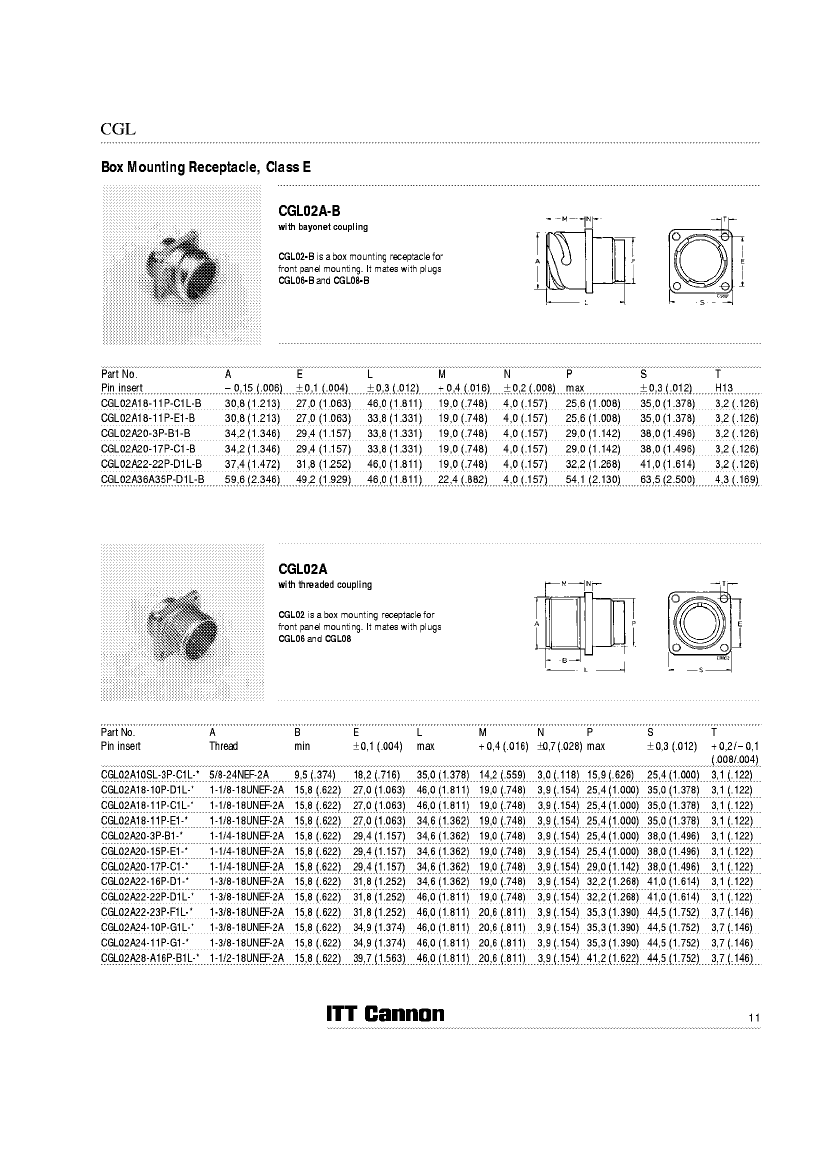

	CGL06PG	CGL02A	CGL06PG-B	CGL08PG-B
Description	Circular Connector, Aluminum Alloy, Female, Plug	Circular Connector, Aluminum Alloy, Male, Receptacle	Circular Connector, Aluminum Alloy, Female, Plug	Circular Connector, Aluminum Alloy, Female, Plug
Maker	ITT	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	FIRST MATE LAST BREAK, MAX CONTACTS (SERIES)=9	FIRST MATE LAST BREAK, MAX CONTACTS (SERIES)=9	FIRST MATE LAST BREAK, MAX CONTACTS (SERIES)=9	FIRST MATE LAST BREAK, MAX CONTACTS (SERIES)=9
Back shell type	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	RECEPTACLE	PLUG	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
empty shell	YES	YES	YES	YES
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT	FLUID RESISTANT	ENVIRONMENT RESISTANT; FLUID RESISTANT	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	CGL	CGL	CGL	CGL
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	PANEL	CABLE	CABLE
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
Housing size	10; 18; 20; 22; 24; 28	10; 18; 20; 22; 24; 28	18; 20; 22; 28; 36	18; 20; 22
