BSS126H6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSS126H6327

BSS126H6327: DescriptionSmall Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size253KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BSS126H6327 Overview

Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3

BSS126H6327 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (Abs) (ID)	0.021 A
Maximum drain current (ID)	0.021 A
Maximum drain-source on-resistance	500 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	1.5 pF
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON

Preview

Download Datasheet

View All

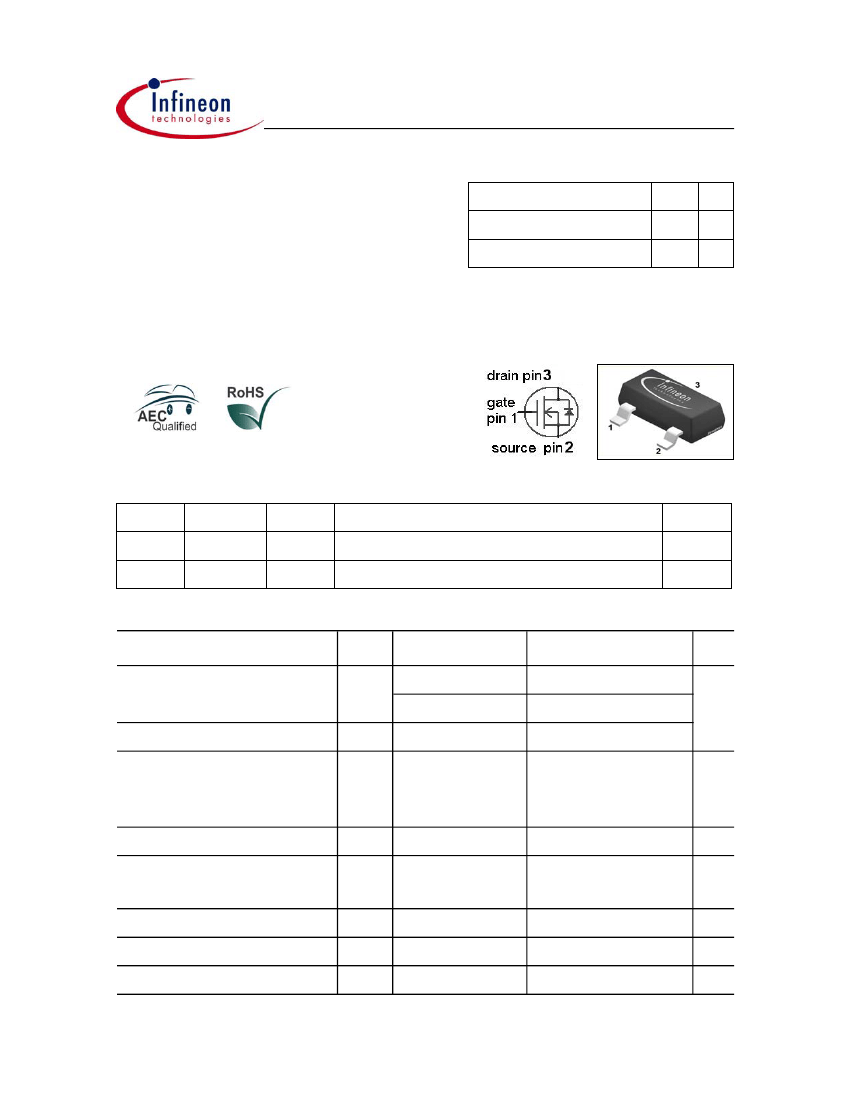

BSS126

SIPMOS

Small-Signal-Transistor

Features

• N-channel

• Depletion mode

• dv /dt rated

• Available with V

GS(th)

indicator on reel

• Pb-free lead plating; RoHS compliant

Product Summary

DS(on),max

DSS,min

600

700

Ω

0.007 A

PG-SOT-23

Type

BSS126

Package

PG-SOT-23

Pb-free

Yes

Tape and Reel Information

L6327: 3000 pcs/reel

L6906: 3000 pcs/reel sorted in

GS(th)

bands

Marking

SHs

Maximum ratings,

=25 °C, unless otherwise specified

Parameter

Continuous drain current

Symbol Conditions

=25 °C

=70 °C

Pulsed drain current

D,pulse

=25 °C

=0.016 A,

=20 V,

di /dt =200 A/µs,

j,max

=150 °C

Value

0.021

0.017

0.085

Unit

Reverse diode dv /dt

dv /dt

kV/µs

Gate source voltage

ESD

class

(JESD22-A114-HBM)

Power dissipation

Operating and storage temperature

IEC climatic category; DIN IEC 68-1

±20

0 (<250V)

tot

stg

=25 °C

0.50

-55 ... 150

55/150/56

°C

see table on next page and diagram 11

Rev. 1.6

page 1

2009-08-18

BSS126H6327 Related Products

	BSS126H6327	BSS126L6327	BSS126L6906	BSS126E6327	BSS126E6906
Description	Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3	Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3	Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3	Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3	Small Signal Field-Effect Transistor, 0.021A I(D), 600V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, GREEN, PLASTIC PACKAGE-3
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Infineon	Infineon	Infineon	Infineon	Infineon
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V	600 V	600 V	600 V	600 V
Maximum drain current (Abs) (ID)	0.021 A	0.021 A	0.021 A	0.021 A	0.021 A
Maximum drain current (ID)	0.021 A	0.021 A	0.021 A	0.021 A	0.021 A
Maximum drain-source on-resistance	500 Ω	500 Ω	500 Ω	500 Ω	500 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	1.5 pF	1.5 pF	1.5 pF	1.5 pF	1.5 pF
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	260	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	40	40	NOT SPECIFIED	NOT SPECIFIED
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Humidity sensitivity level	1	1	1	-	-
