PSC2-106-01-L-D-03 datasheet, PDF

Datasheet> All Categories > The connector> The connector> PSC2-106-01-L-D-03

PSC2-106-01-L-D-03: DescriptionRectangular Power Connector, 15 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

PSC2-106-01-L-D-03 Overview

Rectangular Power Connector, 15 Contact(s), Female, Solder Terminal, Socket

PSC2-106-01-L-D-03 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PSC2
Plug information	MULTIPLAE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

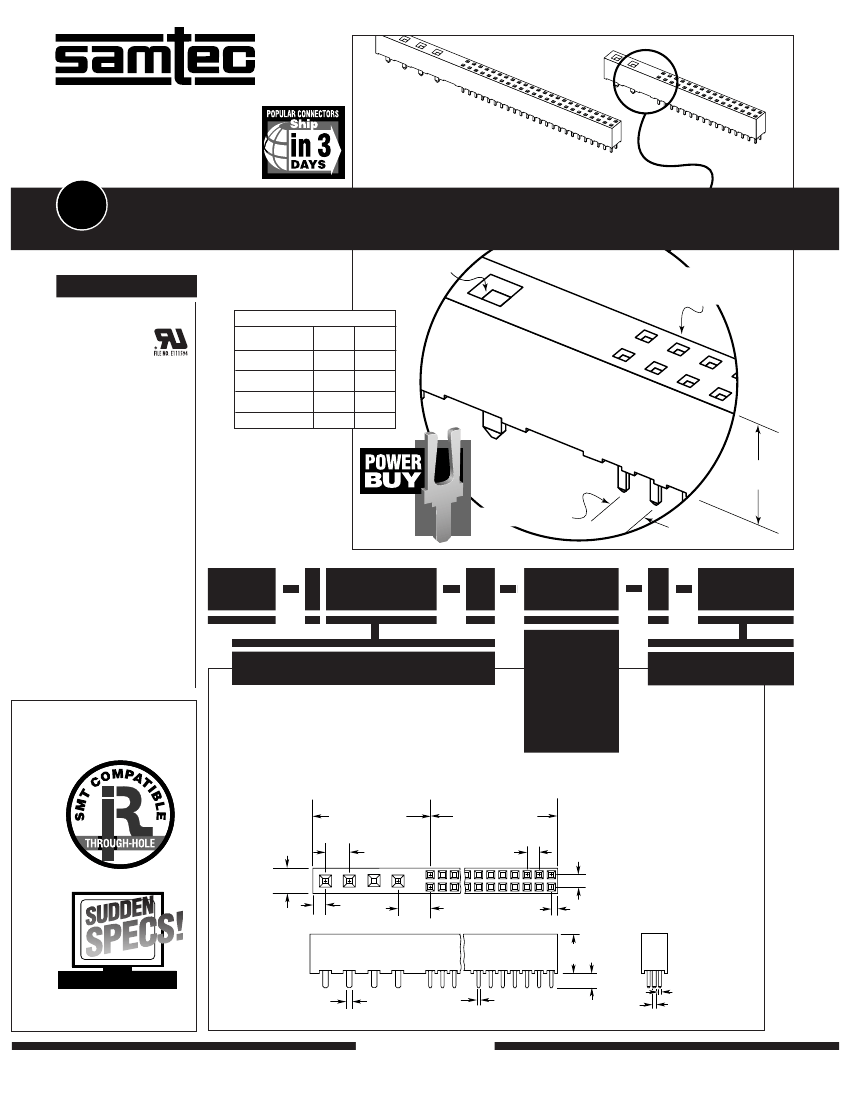

F-203-1

PCS2–116–01–L–D–02

PCS2–124–01–L–D–04

POWER COMBO SOCKET

Mates with:

PCT2

Accepts (1,14mm)

.045" SQ post

power terminals

CURRENT RATINGS

AMBIENT

POWER SIGNAL

TEMPERATURE LEAD LEAD

20°C

40°C

60°C

80°C

13A

11A

5.5A

PCS2

SERIES

SPECIFICATIONS

For complete specifications

see www.samtec.com?PCS2

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

BeCu

Operating Temp Range:

-65°C to +105°C with Tin

-65°C to +125°C with Gold

Plating:

Sn or Au over 50µ"

(1,27µm) Ni on signal pins;

Sn over 50µ" (1,27µm) Ni

on power pins

Contact Resistance:

10 mΩ max

Insertion Depth:

(2,62mm) .103" to (5,03mm)

.198" with (0,38mm) .015"

wipe

Max Cycles:

100 with 10µ" (0,25µm) Au

Insertion Force:

28oz (7,78N) avg per

power contact plus

1.8oz (0,50N) avg per

signal contact

Withdrawal Force:

20oz (5,56N) avg per

power contact plus

1.0oz (0,28N) avg per

signal contact

Voltage Rating:

500 VAC mated with PCT2

Note:

Some lengths, styles

and options are non-

standard, non-returnable.

Accepts

(0,50mm) .0197" SQ

signal leads

(6,35mm)

.250"

CONTACT

(7 Amps @

70°C ambient)

(2,00mm) .0787"

PCS2

NO. SIGNAL

PINS PER ROW

SIGNAL PIN

PLATING

NO. POWER

PINS

01 thru 39

=10

" (0,25

Gold on contact,

Tin on tail

–L

01 thru 04

–F

Processing:

Max Processing Temp:

230°C for 60 seconds

=Gold flash

on contact,

Tin on tail

(No. Power Positions –1)

x (5,08).200

+(7,76) .306

(5,08)

.200

(3,99)

.157

(2,54)

.100

(No. Signal Positions –1)

x (2,00).0787

+(1,15) .045

(2,00)

.0787

(2,00)

.0787

(5,220)

.2055

(1,15)

.045

(6,35)

.250

www.samtec.com

(1,14)

.045

(0,51)

.020

(2,29)

.090

(0,25)

.010

(0,64)

.025

Due to technical progress, all designs, specifications and components are subject to change without notice.
