CMXD2004SRBKLEADFREE Overview

Diode,

CMXD2004SRBKLEADFREE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum forward voltage (VF)	1 V
JESD-609 code	e3
Humidity sensitivity level	1
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum power dissipation	0.35 W
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	100 µA
Maximum reverse recovery time	0.05 µs
Reverse test voltage	240 V
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

CMXD2004S

CMXD2004SR

SURFACE MOUNT

DUAL PAIR, IN-SERIES

HIGH VOLTAGE

SILICON SWITCHING DIODES

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMXD2004S and

CMXD2004SR consists of dual, in-series pairs of high

voltage silicon switching diodes, manufactured in a

SUPERmini™ SOT-26 surface mount package, and

designed for high voltage switching applications. This

device can be configured as a 1200V switching diode,

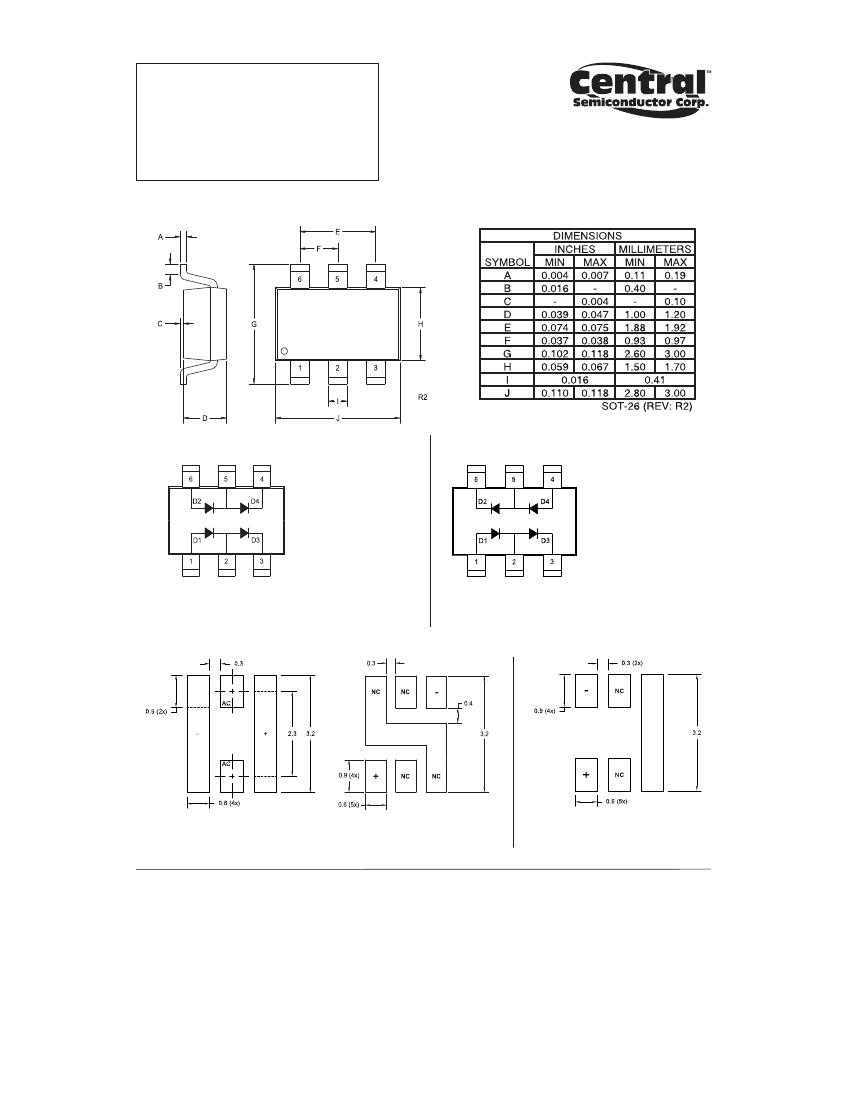

or as a bridge rectifier. See optional mounting pad

configurations on following page.

MARKING CODES: CMXD2004S: CX04S

CMXD2004SR: C04SR

SOT-26 CASE

MAXIMUM RATINGS:

(TA=25°C)

Continuous Reverse Voltage

Peak Repetitive Reverse Voltage

Average Forward Current

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=1.0μs

Peak Forward Surge Current, tp=1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

240

300

200

225

625

4.0

1.0

350

-65 to +150

357

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS PER DIODE:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

MIN

MAX

BVR

trr

VR=240V

VR=240V, TA=150°C

IR=100μA

IF=100mA

VR=0, f=1.0MHz

IF=IR=30mA, Irr=3.0mA, RL=100Ω

300

1.0

5.0

100

UNIT

μA

R4 (25-May 2012)
