REVISION D
DO NOT
SCALE FROM
THIS PRINT
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]

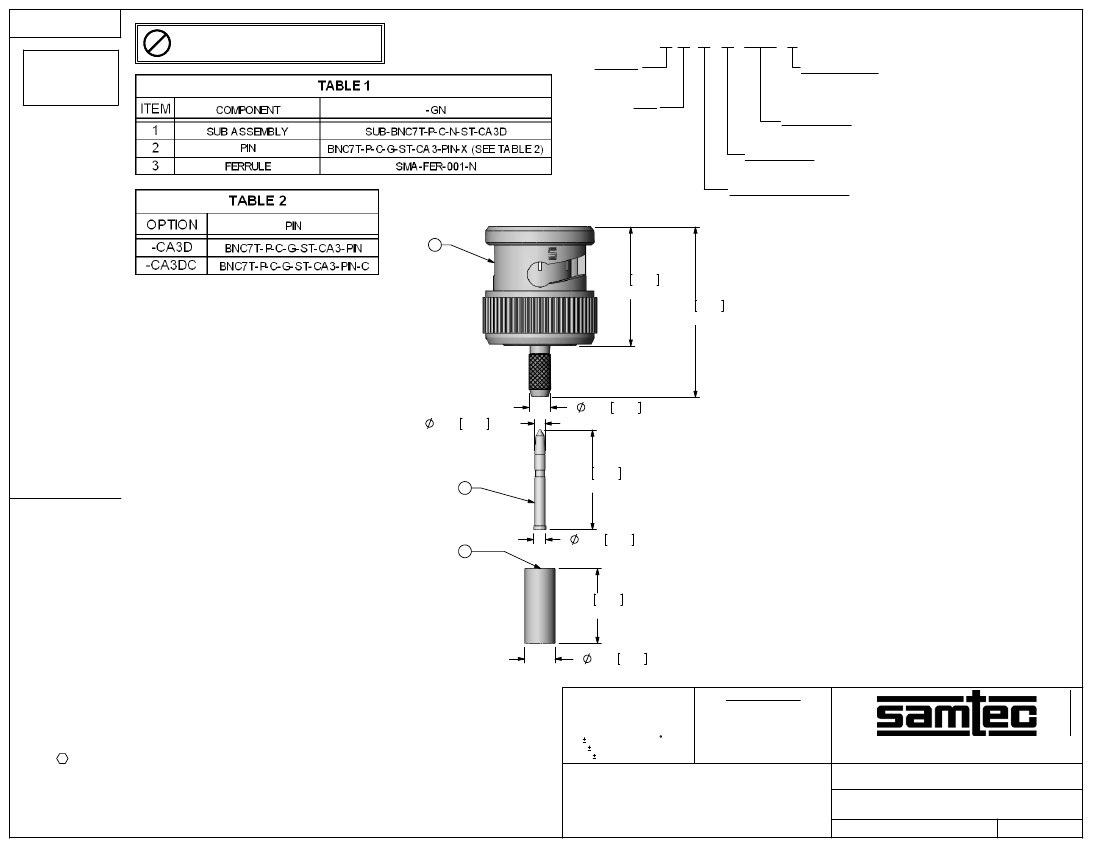

BNC7T-P-C-XX-ST-CA3DX
GENDER
-P: PLUG
TYPE
-C: CABLE
CRIMP OPTION
(LEAVE BLANK FOR SOLDERED CENTER CONTACT)
-C: CRIMPABLE CENTER CONTACT
(USE BNC7T-P-C-X-ST-CA3-PIN-C)
TERMINATION
-CA3D: DIE CAST CABLE (RG179)
ORIENTATION
-ST: STRAIGHT
PLATING SPECIFICATION
-GN: 10µ" GOLD CENTER CONTACT,
100µ" NICKEL OUTER CONTACT
(SEE TABLE 1)
1
15.12 .595
REF
21.62 .851
REF
2.70 .106 REF
1.35 .053 REF
2
12.65 .498
REF
3
1.57 .062 REF
9.50 .374
REF
3.90 .154 REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CENTER CONTACT PUSHOUT FORCE: 26.69 N [6 LB] MIN.
3. DELETED.
4. DELETED.
5. PRODUCT TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.
F:\DWG\MISC\MKTG\BNC7T-P-C-XX-ST-CA3DX-MKT.SLDDRW
DECIMALS
.X: 0.3 [.01]
5
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
NUT: ZAMAK 3
CABLE BODY, FERRULE, CONTACT: BRASS
GASKET: SILICONE
TRUE 75 OHM, BNC DIE CAST ST PLUG, RG179
BNC7T-P-C-XX-ST-CA3DX
T. MEEK
11/17/2009
SHEET
1
OF
2
BY:
REVISION D
3.20±0.30 .126±.012
5.40±0.30 .213±.012
12.10±0.30 .476±.012
3

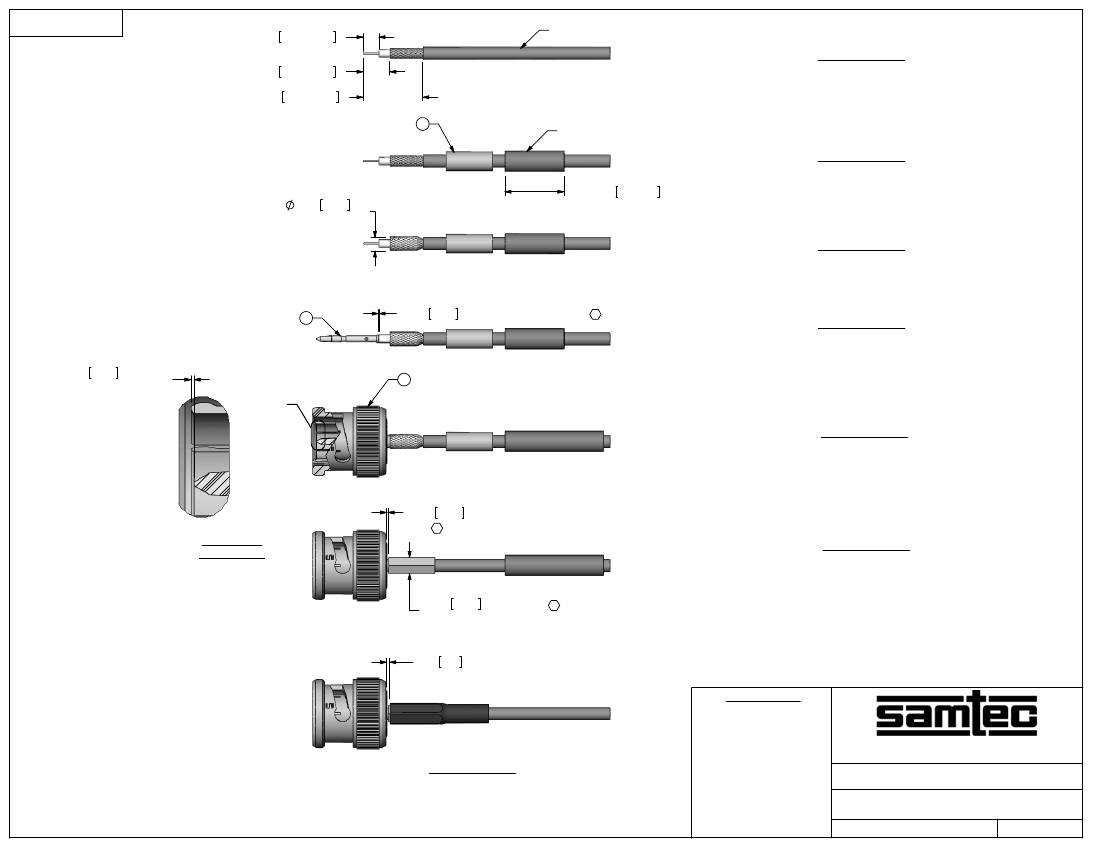

RG179 CABLE
STRIP AND TIN INNER CONDUCTOR
IN-PROCESS 1
HST-0.125-02-BLK
ADD HEAT SHRINK TUBE AND FERRULE
IN-PROCESS 2
2.70 .106
(MIN. FLARED ID)
12.0±2.5 .47±.10
IN-PROCESS 3
FLARE SHIELD
2
0.10 .004 MAX GAP ALLOWABLE
C
SOLDER SIGNAL PIN, OR CRIMP
(USE DANIELS WA22CJ TOOL AND K1764 POSITIONER, CRIMP ON SETTING 7)
0.16 .006 REF
(TO CENTER CONTACT)
'A'
ADD SUB ASSEMBLY
1
IN-PROCESS 4
IN-PROCESS 5
0.25 .010 MAX GAP ALLOWABLE
DETAIL 'A'
SCALE 5 : 1
C
CRIMP FERRULE
(USE RF CRIMP HAND TOOL #CAT-HT-126667-21 OR EQUIVALENT)
3.25 .128 HEX CRIMP
(ACROSS ALL FACES)
C
IN-PROCESS 6
0.6 .02 MAX GAP ALLOWABLE
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
APPLY HEAT SHRINK TUBE
IN-PROCESS 7
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
TRUE 75 OHM, BNC DIE CAST ST PLUG, RG179
SHEET SCALE: 1.25:1
F:\DWG\MISC\MKTG\BNC7T-P-C-XX-ST-CA3DX-MKT.SLDDRW
BNC7T-P-C-XX-ST-CA3DX
T. MEEK
11/17/2009
SHEET
2
OF
2
BY:
