GD74HC86D datasheet, PDF - EEWORLD Datasheet

GD74HC86D: DescriptionXOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14,; Categorylogic logic; File Size87KB，4 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

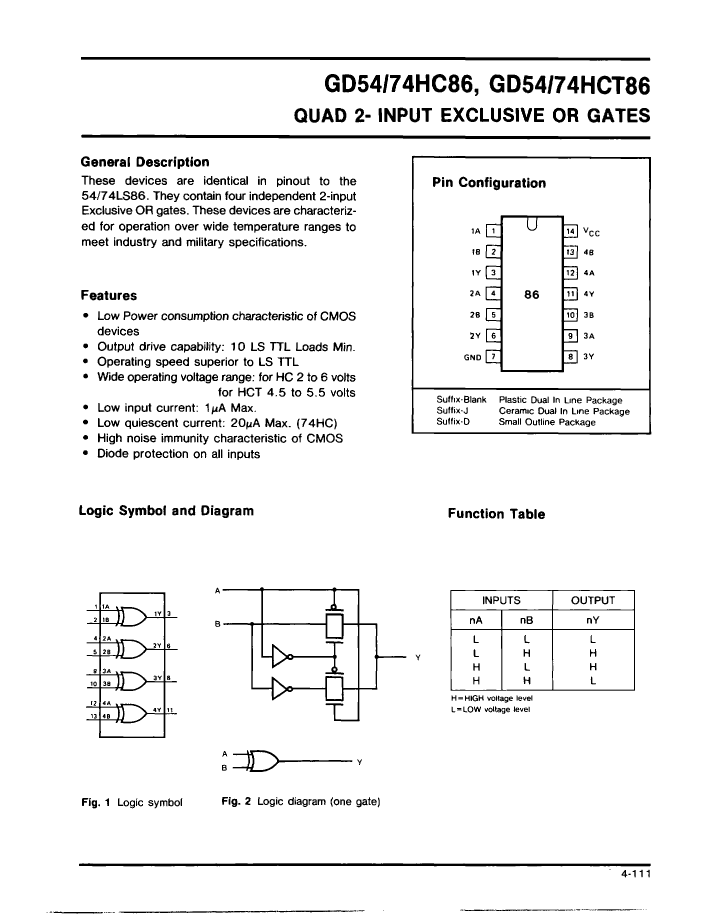

GD74HC86D Overview

XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G14
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

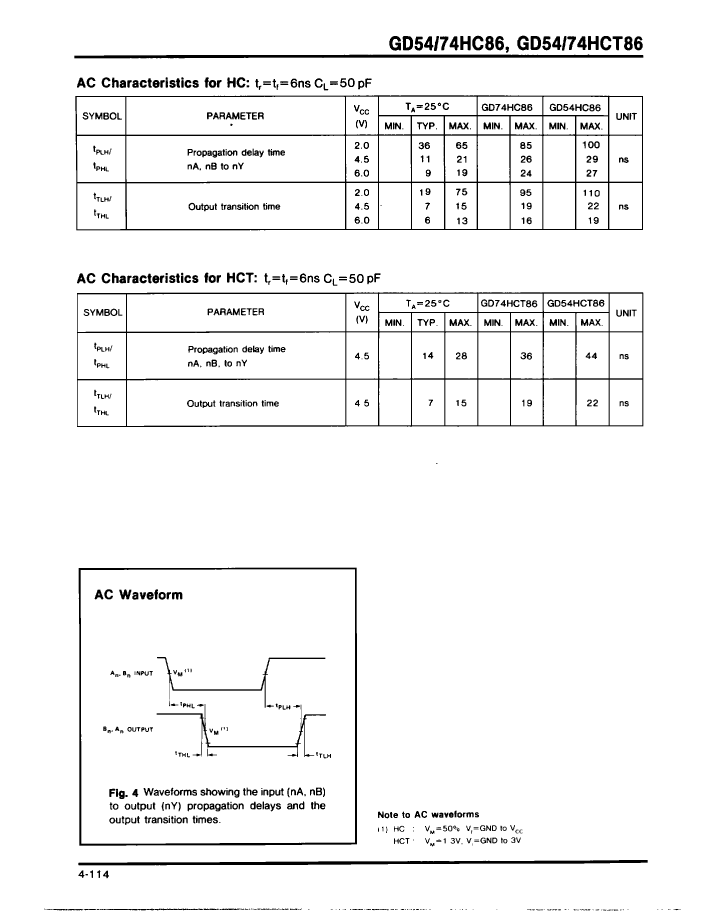

propagation delay (tpd)	26 ns
Certification status	Not Qualified

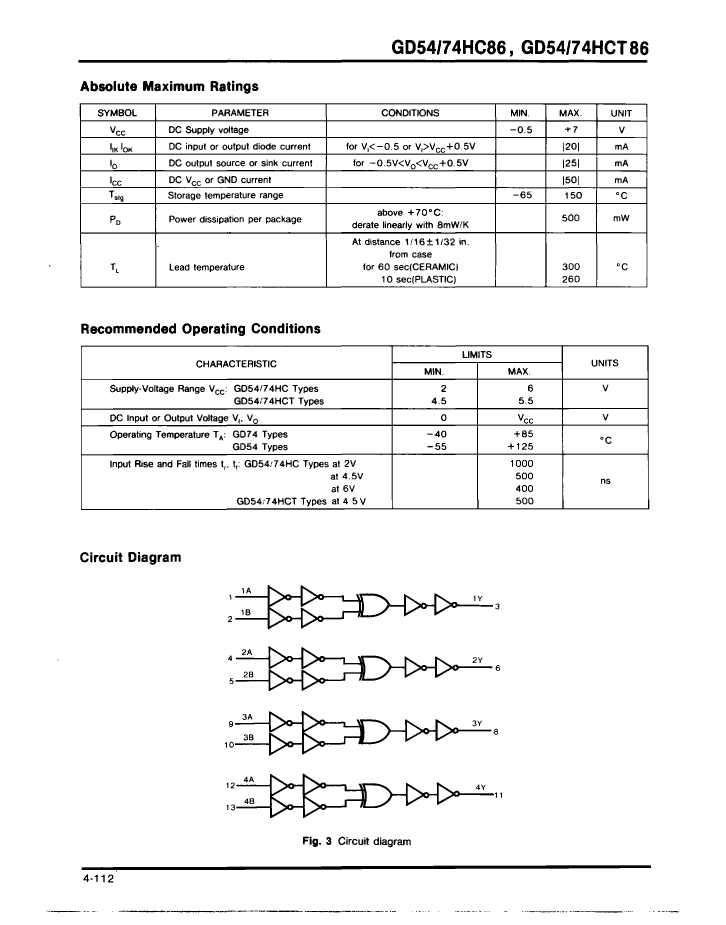

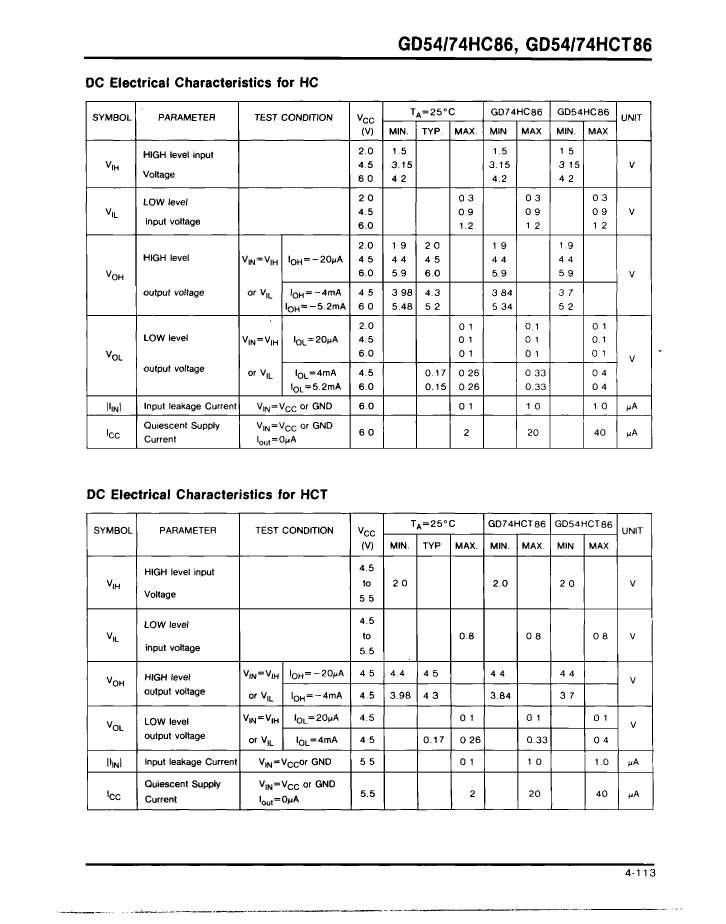

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
