SIH31-01R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SIH31-01R

SIH31-01R: DescriptionRectifier Diode, 1 Phase, 1 Element, 150A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size200KB，4 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

SIH31-01R Overview

Rectifier Diode, 1 Phase, 1 Element, 150A, 100V V(RRM), Silicon,

SIH31-01R Parametric

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	O-XUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XUPM-D1
Maximum non-repetitive peak forward current	3000 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	150 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

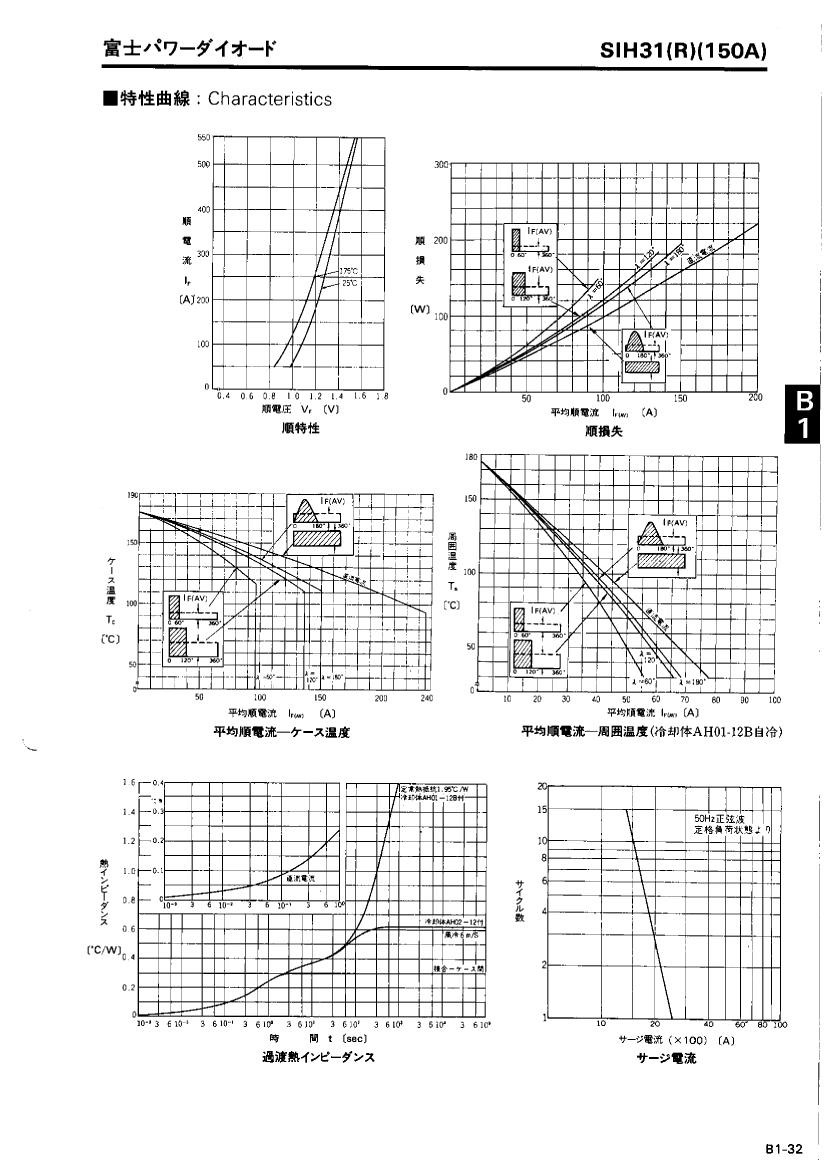

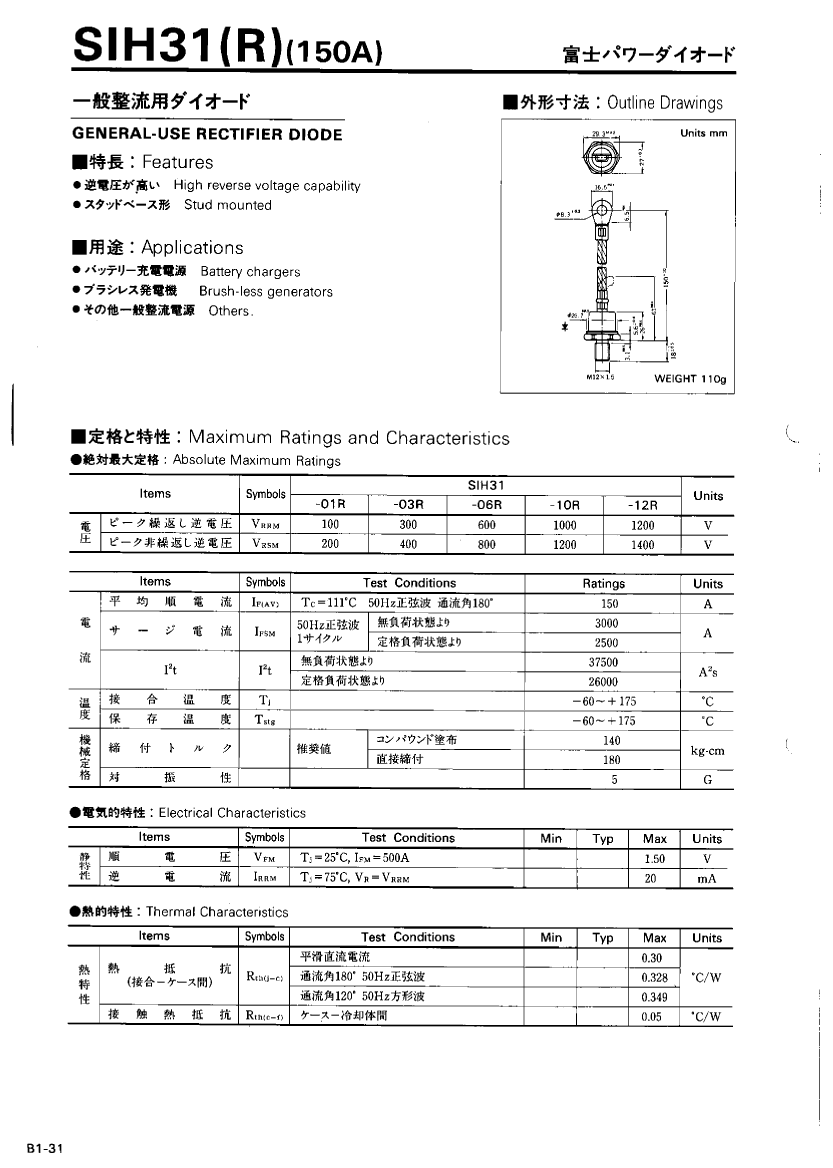

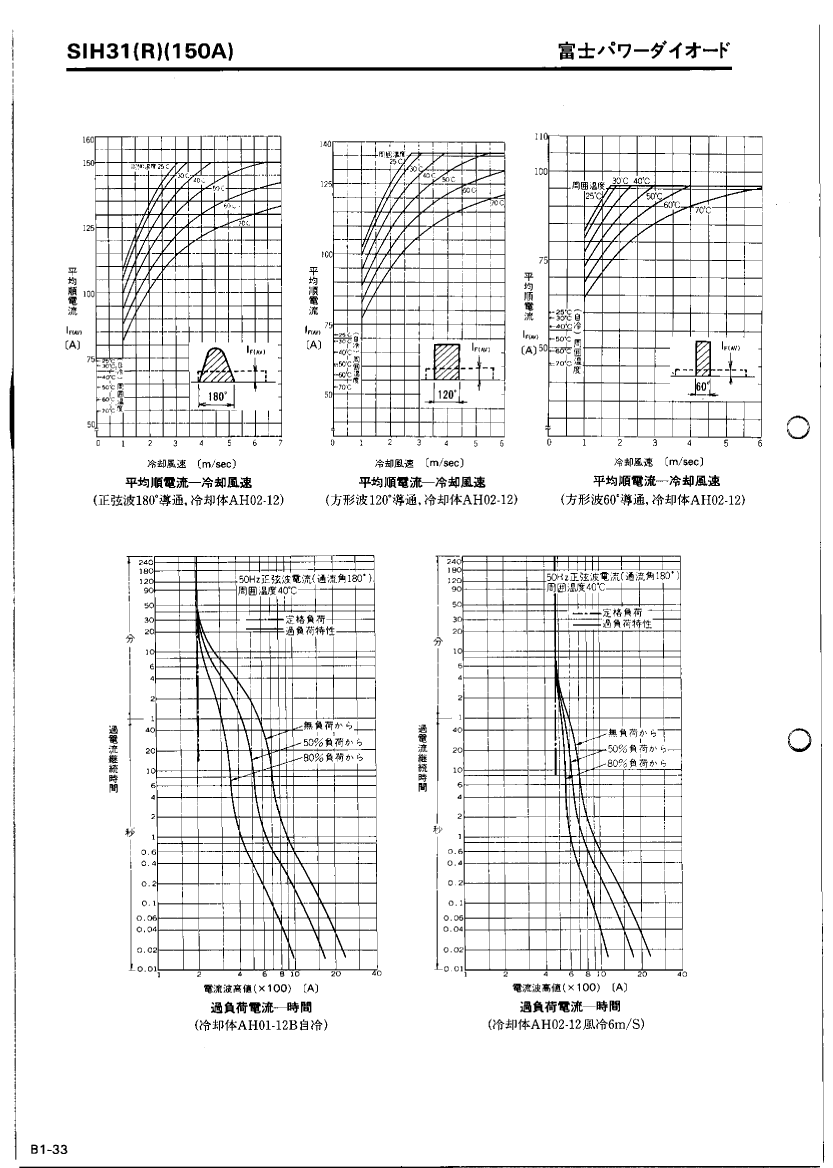

Preview

Download Datasheet

View All

SIH31-01R Related Products

	SIH31-01R	SIH31-10R	SIH31-06R	SIH31-03R	SIH31-12R
Description	Rectifier Diode, 1 Phase, 1 Element, 150A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 150A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 150A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 150A, 300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 150A, 1200V V(RRM), Silicon,
package instruction	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1	O-XUPM-D1
Maximum non-repetitive peak forward current	3000 A	3000 A	3000 A	3000 A	3000 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	1	1	1	1	1
Maximum output current	150 A	150 A	150 A	150 A	150 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	1000 V	600 V	300 V	1200 V
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Fuji Electric Co., Ltd.	-	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
