2440-4-08-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2440-4-08-2

2440-4-08-2: DescriptionPCMCIA Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2440-4-08-2 Overview

PCMCIA Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal

2440-4-08-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.683 inch
subject depth	0.1 inch
body length	0.177 inch
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	2440
Plug contact pitch	0.1 inch
Match contact row spacing	0.331 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	24.7904 mm
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

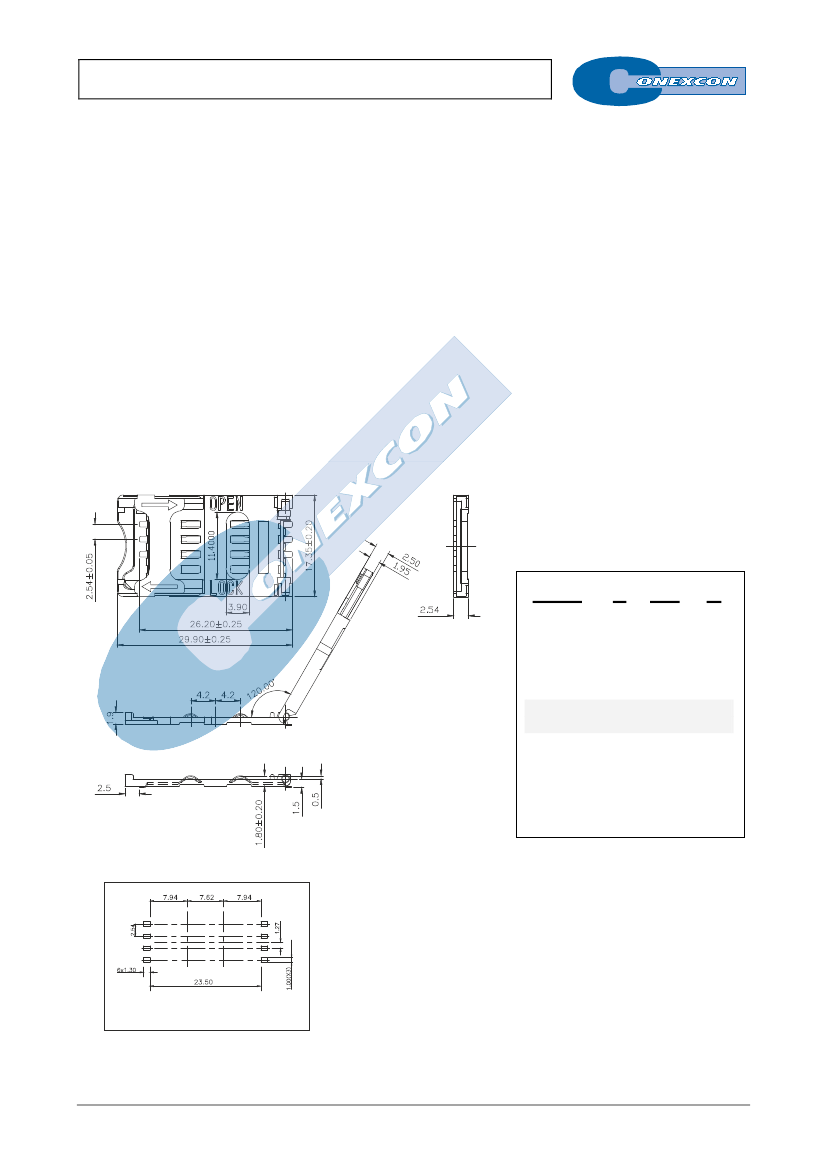

Preview

Download Datasheet

View All

SIM CARD SOCKET 6 AND 8 CONTACTS

2440 SERIES.

SIM card socket. Hinge Type.

General Features

Electrical Features



Available in 6 and 8 contacts

Accept SIM card 6 and 8 contacts

Contact area: different gold plating over 50 µ nickel

Solder area: tin plating over 50 µ nickel

Without card detect

Stand-off: 0 mm.



Voltage rating: < 50 V

Current rating: < 0.50 A

Contact resistance: < 30 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: LCP UL 94 V-0

Contact: Phosphor Bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant



Durability: 5.000 cycles

Dimensional Information

2440 - T- XX- E

1. Series

2. Plating Options



T =

10µ” gold over nickel

Recommended Finish

3. Number of circuits



Available in 6 and 8 circuits

5. Packing Options



E =

Reel

RECOMMENDED PCB LAYOUT

E-XX

FULL LINE CATALOGUE
