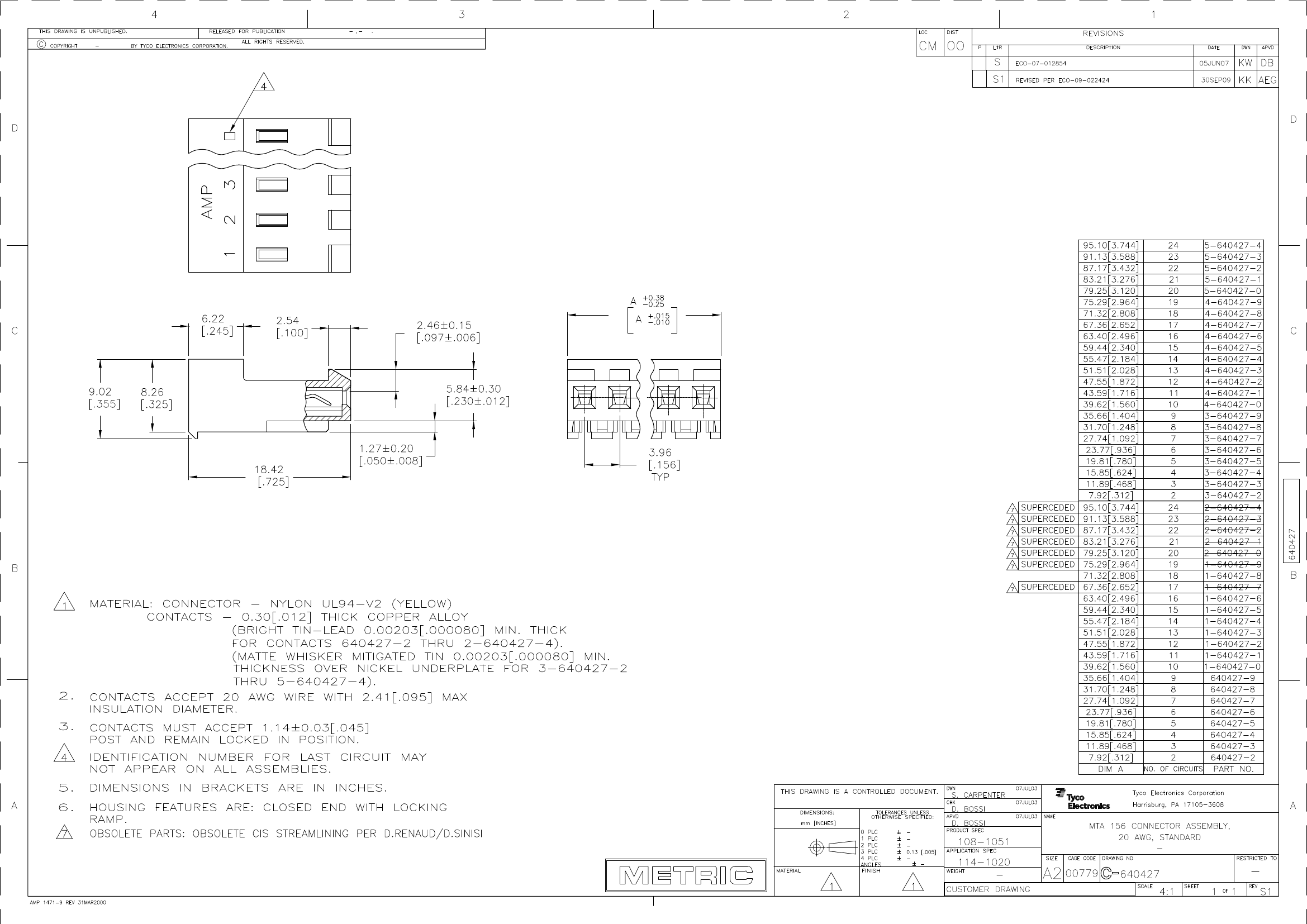

Preview

2-640427-4: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-640427-4 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE

2-640427-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	CLOSED END, TERMINATION
body width	0.725 inch
subject depth	0.355 inch
body length	3.744 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V
Insulation resistance	5000000 Ω
Insulator color	ORANGE
insulator material	NYLON
JESD-609 code	e4
Plug contact pitch	0.156 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.48 inch
Termination type	IDC
Total number of contacts	24
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

2-640427-4 Related Products

	2-640427-4	2-640427-0	2-640427-1	2-640427-2	2-640427-3	TLCCT20A01E1720DT3	EQUG33D5G1H-20.800M	1-6404275
Description	HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	HEADER CONNECTOR,CABLE MNT,PLUG,20 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,ORANGE	Array/Network Resistor, Bussed, Thin Film, 0.05W, 172ohm, 100V, 0.5% +/-Tol, -25,25ppm/Cel, 3535,	LVPECL, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVPECL (PECL) 3.3Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 20.800MHz ±2.0ppm over -30°C to +60°C	15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	conform to	incompatible
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	not_compliant	compliant
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e0
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	125 °C	60 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-30 °C	-55 °C
Other features	CLOSED END, TERMINATION	CLOSED END, TERMINATION	CLOSED END, TERMINATION	CLOSED END, TERMINATION	CLOSED END, TERMINATION	-	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; BULK	AMP
body width	0.725 inch	0.725 inch	0.725 inch	0.725 inch	0.725 inch	-	-	0.355 inch
subject depth	0.355 inch	0.355 inch	0.355 inch	0.355 inch	0.355 inch	-	-	0.725 inch
body length	3.744 inch	3.12 inch	3.276 inch	3.432 inch	3.588 inch	-	-	2.34 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	-	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-	-	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	-	-	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	-	-	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Contact resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	-	-	3 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V	1250VAC V	1250VAC V	1250VAC V	1250VAC V	-	-	2200VAC V
Insulation resistance	5000000 Ω	5000000 Ω	5000000 Ω	5000000 Ω	5000000 Ω	-	-	5000000000 Ω
Insulator color	ORANGE	ORANGE	ORANGE	ORANGE	ORANGE	-	-	YELLOW
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	-	-	NYLON
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	-	-	0.156 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	-	-	CABLE
Number of rows loaded	1	1	1	1	1	-	-	1
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Terminal length	0.48 inch	0.48 inch	0.48 inch	0.48 inch	0.48 inch	-	-	-
Termination type	IDC	IDC	IDC	IDC	IDC	-	-	IDC
Total number of contacts	24	20	21	22	23	-	-	15
Maximum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	-	-	20 AWG
Minimum wire diameter	20 AWG	20 AWG	20 AWG	20 AWG	20 AWG	-	-	20 AWG
Base Number Matches	1	1	1	1	1	-	-	1
