2-111504-1 datasheet, PDF - EEWORLD Datasheet

2-111504-1: DescriptionHEADER CONNECTOR,CABLE MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH,BLACK; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

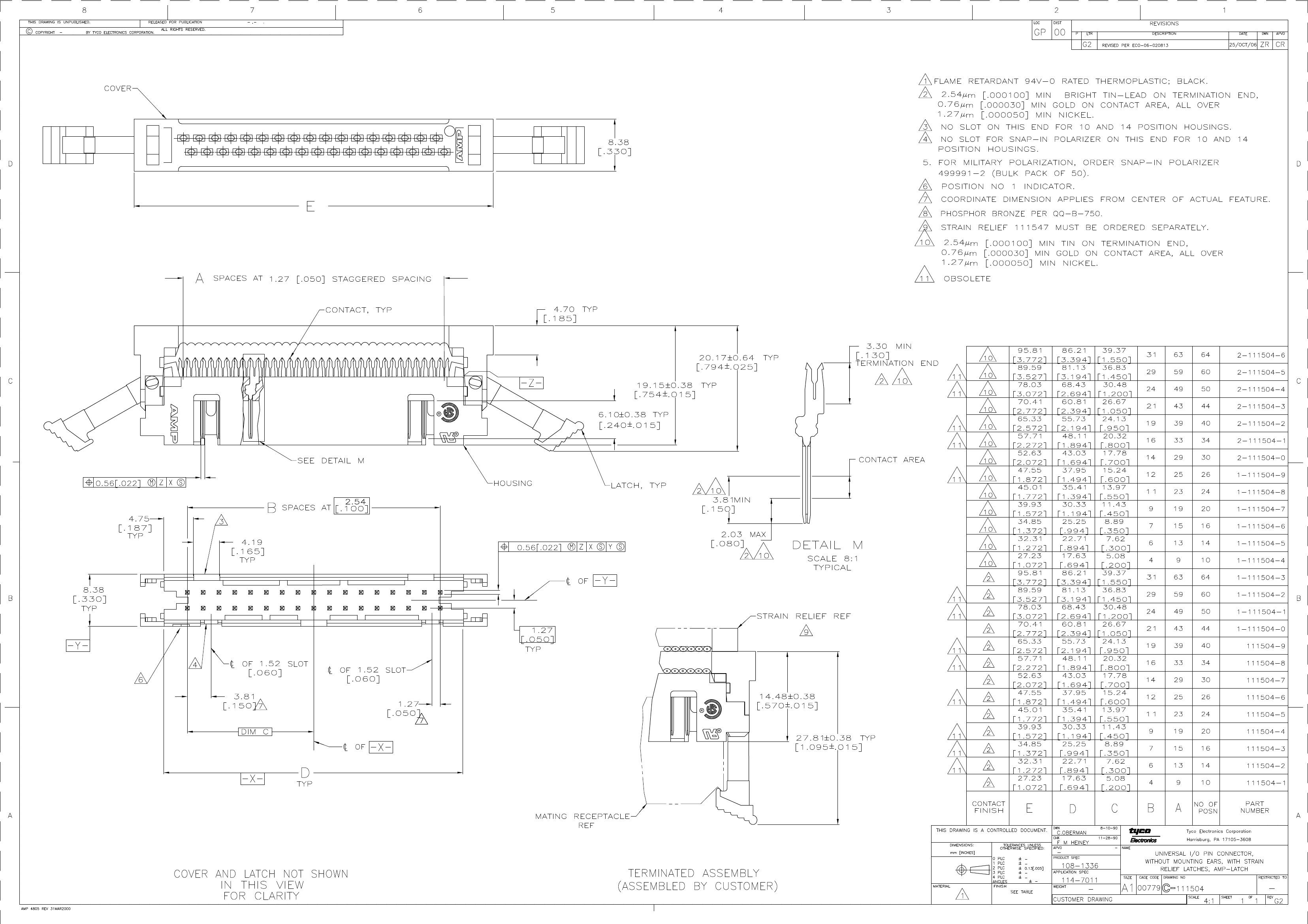

2-111504-1 Overview

HEADER CONNECTOR,CABLE MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	WITH STRAIN RELIEF LATCHES
body width	0.33 inch
body length	2.272 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	3.336 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	111504
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	34
Evacuation force-minimum value	.417 N
Base Number Matches	1
