Technical Specification
*
Quarter
Brick
48Vin 18Vout 5.6A
100 Watt, No Heatsink, Isolated DC/DC Converter
The PQ65180QGA06 PowerQor
™
Giga quarter-
brick converter is a next-generation, board-mount-
able, isolated, fixed switching frequency DC/DC
converter that uses synchronous rectification to
achieve extremely high conversion efficiency. The
power dissipated by the converter is so low that a
heatsink is not required, which saves cost, weight,
height, and application effort. All of the power and
control components are mounted to the multi-layer
PCB substrate with high-yield surface mount tech-
nology. Since the PowerQor converter has no
explicit thermal interfaces, it is extremely reliable.
Operational Features
• Ultra-high efficiency, 91% at full rated load current
• Delivers up to 100 Watts of output power with mini-
mal derating - no heatsink required
• Wide input voltage range: 40V – 75V, with 100V
100ms input voltage transient capability
• Fixed frequency switching provides predictable EMI
performance
• No minimum load requirement means no preload
resistors required
PQ65180QGA06 Module
Protection Features
• Input under-voltage lockout disables converter at
low input voltage conditions
• Output current limit and short circuit protection
protects converter and load from permanent damage
and consequent hazardous conditions
• Active back bias limit prevents damage to convert-
er from external load induced pre-bias
• Output over-voltage protection protects load from
damaging voltages
• Thermal shutdown protects converter from abnor-
mal environmental conditions
Mechanical Features
• Industry standard quarter-brick pin-out configuration
• Industry standard size: 1.45” x 2.3”
(36.8x58.4mm)
• Total height less than 0.40”
(10.2mm),
permits better
airflow and smaller card pitch
• Total weight: 1.2 oz.
(34 grams)
• Flanged pins designed to permit surface mount sol-
dering (avoid wave solder) using FPiP technique
Safety Features
• 2000V, 30 MΩ input-to-output isolation provides
input/output ground separation
• UL/cUL 60950 recognized (US & Canada), basic
insulation rating
• TUV certified to EN60950
• Meets 72/23/EEC and 93/68/EEC directives
which facilitates CE Marking in user’s end product
• Board and plastic components meet UL94V-0 flam-
mability requirements
* Final datasheet pending ECO review and signature.
Doc.# 005-2QG581D Rev. B
9/14/04
Page 1
Control Features
• On/Off control referenced to input side (positive
and negative logic options are available)
• Remote sense for the output voltage compensates
for output distribution drops
• Output voltage trim permits custom voltages and
voltage margining
Product # PQ65180QGA06
Phone 1-888-567-9596
Technical Specification
Quarter
Brick

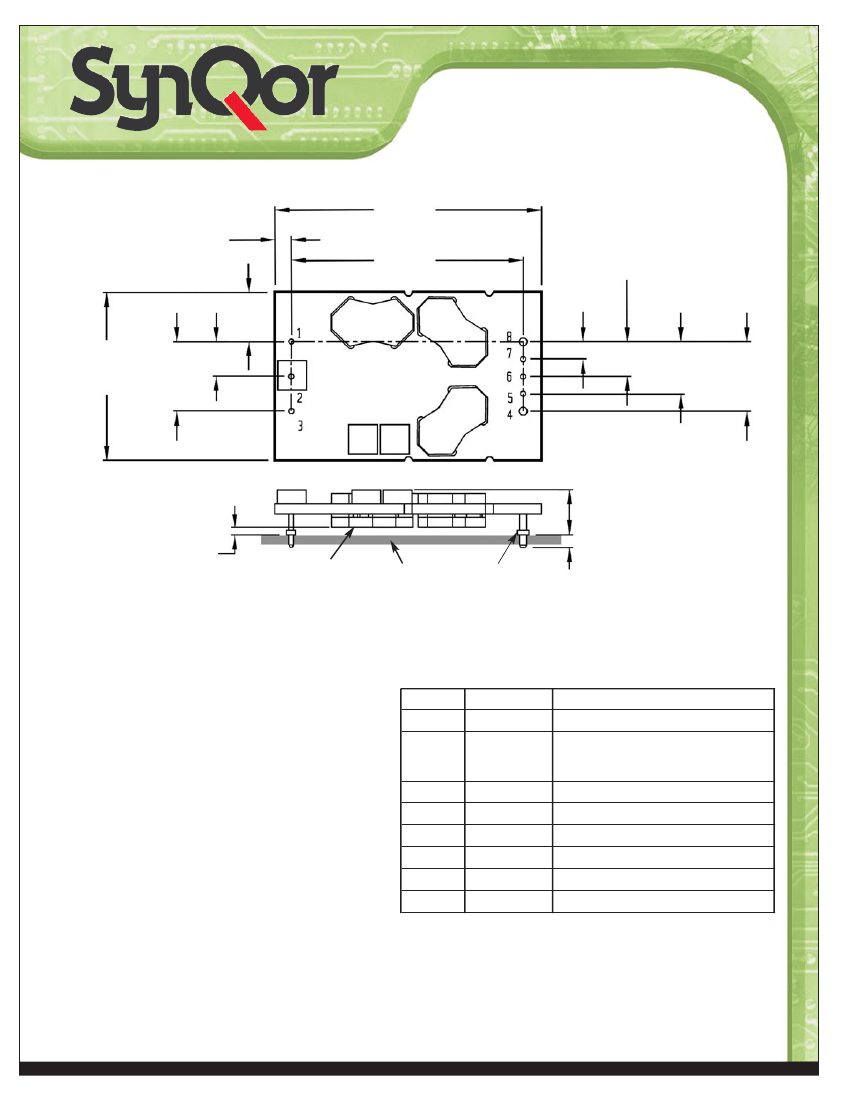

MECHANICAL
DIAGRAM
2.30
(58.4)
48Vin 18Vout 5.6A
0.14
(3.6)
2.00
(50.8)
0.300
(7.62)
0.150
0.43
(10.9)
(3.81)
1.45
(36.8)
0.300
0.600
(15.24)
(7.62)
0.450
Top View
(11.43)
0.600
(15.24)
Max. Height
0.40
Bottom side
Clearance
See Note 9
(10.2)
0.047+/-0.015
(1.19+/-0.38)
Lowest
Component
Load Board
Flanged Pin
See Note 10
Side View
0.145
(3.68)
See Note 3
NOTES
1) Pins 1-3, 5-7 are 0.040” (1.02mm) diameter with
0.080” (2.03 mm) diameter standoff shoulders.
2) Pins 4 and 8 are 0.062” (1.57 mm) diameter with
0.100” (2.54 mm) diameter standoff shoulders.
3) Other pin extension lengths available. Recommended pin
length is 0.03” (0.76mm) greater than the PCB thickness.
4) All Pins: Material - Copper Alloy
Finish - Tin/Lead over Nickel plate
5) Undimensioned components are shown for visual
reference only.
6) All dimensions in inches (mm)
Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm)
x.xxx +/-0.010 in. (x.xx +/-0.25mm)
7) Weight: 1.2 oz. (34 g) typical
8) Workmanship: Meets or exceeds IPC-A-610C Class II
9)
UL/TUV standards require a clearance greater than 0.04”
(1.02mm) between input and output for Basic insulation. This
issue should be considered if any copper traces are on the top
side of the user’s board. Note that the ferrite cores are consid-
ered part of the input/primary circuit.
PIN DESIGNATIONS
Pin No.
1
2
3
4
5
6
7
8
Notes:
1. If Sense regulation is needed, then pins 5 and 7 must be connected
to Vout(+/-) at the load.
2. Leave Pin 6 open for nominal output voltage.
Name
Vin(+)
ON/OFF
Vin(-)
Vout(-)
SENSE(-)
TRIM
SENSE(+)
Vout(+)
Function
Positive input voltage
TTL input to turn converter
on and off, referenced to
Vin(-), with internal pull up.
Negative input voltage
Negative output voltage
Negative remote sense
1
Output voltage trim
2
Positive remote sense
1
Positive output voltage
10) The flanged pins are designed to permit surface mount
soldeing (avoiding the wave soldering process) through
the use of the flanged pin-in-paste technique.
Product # PQ65180QGA06
Phone 1-888-567-9596
Doc.# 005-2QG581D Rev. B
9/14/04
Page 2
Technical Specification
Quarter
Brick
PQ65180QGA06 ELECTRICAL CHARACTERISTICS
Parameter
ABSOLUTE MAXIMUM RATINGS
48Vin 18Vout 5.6A
T
A
=25°C, airflow rate=300 LFM, V
in
=48Vdc unless otherwise noted; full operating temperature range is -40°C to +100°C ambient
temperature with appropriate power derating. Specifications subject to change without notice.
Min.
Typ.
Max.
100
80
100
2000
100
125
18
48
38
34.5
3.5
80
1.6
600
4
60
2.46\4.7
47
17.73
18.00
75
39
35.5
4.5
3.0
120
3
0.04
Units
V
V
V
V
°C
°C
V
V
V
V
V
A
mA
mA
A
2
s
mV
mA
mA
A
µF\µH
µF
V
%\mV
%\mV
mV
V
mV
mV
A
A
V
A
mA
µF
dB
mV
mV
µs
Notes & Conditions
continuous
continuous
100ms transient, square wave
Basic insulation, Pollution Degree 2
Input Voltage
Non-Operating
Operating
Operating Transient Protection
Isolation Voltage (input to output)
Operating Temperature
Storage Temperature
Voltage at ON/OFF input pin
Operating Input Voltage Range
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Voltage Hysteresis
Maximum Input Current
No-Load Input Current
Disabled Input Current
Inrush Current Transient Rating
Response to Input Transient
Input Reflected Ripple Current
Input Terminal Ripple Current
Recommended Input Fuse
Input Filter Component Values (C\L)
Recommended External Input Capacitance
Output Voltage Set Point
Output Voltage Regulation
Over Line
Over Load
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
1
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
Output DC Current-Limit Shutdown Voltage
Back-Drive Current Limit while Enabled
Back-Drive Current Limit while Disabled
Maximum Output Capacitance
Input Voltage Ripple Rejection
Output Voltage During Load Current Transient
For a Step Change in Output Current (0.1A/µs)
For a Step Change in Output Current (5A/µs)
Settling Time
Turn-On Transient
Turn-On Time
Start-Up Inhibit Time
Output Voltage Overshoot
100% Load
50% Load
Semiconductor Junction Temperature
Board Temperature
Transformer Temperature
Isolation Voltage (dielectric strength)
Isolation Resistance
Isolation Capacitance
2
-40
-55
-2
40
37
33.5
2.5
INPUT CHARACTERISTICS
100% Load, 40 Vin
20
1000V/ms input transient
P-P thru 10µH inductor; Figs. 13 & 15
RMS; Figs. 13 & 14
fast blow external fuse recommended
internal values, see Figure E
Typical ESR 0.1-0.2
Ω
, see Figure 13
Factory pre-set with Sense(+), Sense(-) open
OUTPUT CHARACTERISTICS
18.27
17.43
+0.04 \ 7 +0.2 \ 36
+0.04 \ 7 +0.2 \ 36
+112
+300
18.57
50
15
6.7
10
0.3
10
70
250
250
800
120
30
5.6
7.7
0.6
50
2,000
0
5.9
0.1
0
over sample, line, load, temperature & life
20MHz bandwidth; Fig. 13 & 16
Full Load, see Figures 13 & 16
Full Load, see Figures 13 & 16
Subject to thermal derating; Figs. 5-8
Output Voltage 10% Low; Figure 17
Negative current drawn from output
Negative current drawn from output
18Vout at 5.6A Resistive Load
120 Hz; Fig. 20
50% to 75% to 50% Iout max; Figure 11
50% to 75% to 50% Iout max; Figure 12
to within 1% Vout nom
Full load, Vout=90% nom.; Figs. 9 & 10
-40°C to +125°C; Figure F
2,000 µF load capacitance, Iout = 0A
Figures 1 - 4
Figures 1 - 4
Package rated to 150°C
UL rated max operating temp 130°C
See Figures 5 - 8 for derating curves
DYNAMIC CHARACTERISTICS
10
180
12
200
0
91.5
90.5
15
240
ms
ms
%
%
%
EFFICIENCY
TEMPERATURE LIMITS FOR POWER DERATING CURVES
125
125
125
2000
30
470
°C
°C
°C
V
M
Ω
pF
ISOLATION CHARACTERISTICS
Note 1: For applications requiring reduced output voltage ripple and noise, consult SynQor applications support (e-mail: support@synqor.com)
Note 2: Higher values of isolation capacitance can be added external to the module.
Product # PQ65180QGA06
Phone 1-888-567-9596
Doc.# 005-2QG581D Rev. B
9/14/04
Page 3
Technical Specification
Quarter
Brick
ELECTRICAL CHARACTERISTICS (Continued)
Parameter
P
FEATURE CHARACTERISTICS
48Vin 18Vout 5.6A
Units
kHz
V
V
V
V
V
kΩ
%
%
%
°C
°C
Min.
265
-2
2.4
2.4
-2
Typ.
290
Max.
355
0.8
18
18
0.8
Notes & Conditions
Regulation and Isolation stage
Switching Frequency
ON/OFF Control (Option P)
Off-State Voltage
On-State Voltage
ON/OFF Control (Option N)
Off-State Voltage
On-State Voltage
ON/OFF Control (Either Option)
Pull-Up Voltage
Pull-Up Resistance
Output Voltage Trim Range
Output Voltage Remote Sense Range
Output Over-Voltage Protection
Over-Temperature Shutdown
Over-Temperature Shutdown Restart Hysteresis
Load Current Scale Factor
Calculated MTBF (Telcordia)
Calculated MTBF (MIL-217)
Field Demonstrated MTBF
-20
117
Vin/6.5
40
122
125
10
175
2.8
1.8
9.2
+10
+10
127
Figures A, B
Measured across Pins 8 & 4; Figure C
Measured across Pins 8 & 4
Over full temp range; % of nominal Vout
Average PCB Temperature
See App Note: Output Load Current Calc.
RELIABILITY CHARACTERISTICS
10
6
Hrs.
TR-NWT-000332; 80% load,300LFM, 40oC Ta
10
6
Hrs.
MIL-HDBK-217F; 80% load, 300LFM, 40oC Ta
10
6
Hrs. See website for latest values
STANDARDS COMPLIANCE
Parameter
P
STANDARDS COMPLIANCE
Notes
File # E194341, Basic insulation & pollution degree 2
Certified by TUV
test on entire assembly; board & plastic components UL94V-0 compliant
ESD test, 8kV - NP, 15kV air - NP (Normal Performance)
Section 7 - electrical safety, Section 9 - bonding/grounding
UL/cUL 60950
EN60950
72/23/EEC
93/68/EEC
Needle Flame Test (IEC 695-2-2)
IEC 61000-4-2
GR-1089-CORE
Telcordia (Bellcore) GR-513
• An external input fuse must always be used to meet these safety requirements. Contact SynQor for official safety
certificates on new releases or download from the SynQor website.
QUALIFICATION TESTING
Parameter
P
QUALIFICATION TESTING
# Units
32
5
5
10
5
5
5
15 pins
Test Conditions
10-55Hz sweep, 0.060” total excursion,1 min./sweep, 120 sweeps for 3 axis
Life Test
Vibration
Mechanical Shock
Temperature Cycling
Power/Thermal Cycling
Design Marginality
Humidity
Solderability
95% rated V
in
and load, units at derating point, 1000 hours
100g minimum, 2 drops in x and y axis, 1 drop in z axis
-40°C to 100°C, unit temp. ramp 15°C/min., 500 cycles
T
operating
= min to max, V
in
= min to max, full load, 100 cycles
T
min
-10°C to T
max
+10°C, 5°C steps, V
in
= min to max, 0-105% load
85°C, 85% RH, 1000 hours, 2 minutes on and 6 hours off
MIL-STD-883, method 2003
•
Extensive characterization testing of all SynQor products and manufacturing processes is performed to ensure that we supply
robust, reliable product. Contact factory for official product family qualification document.
OPTIONS
SynQor provides various options for Logic Sense, Pin Length and
Feature Set for this family of DC/DC converters. Please consult the
last page of this specification sheet for information on available
options.
Product # PQ65180QGA06
Phone 1-888-567-9596
PATENTS
SynQor is protected under various patents, including but not lim-
ited to U.S. Patent numbers 5,999,417; 6,222,742 B1;
6,594,159 B2; 6,545,890 B2.
Doc.# 005-2QG581D Rev. B
9/14/04
Page 4

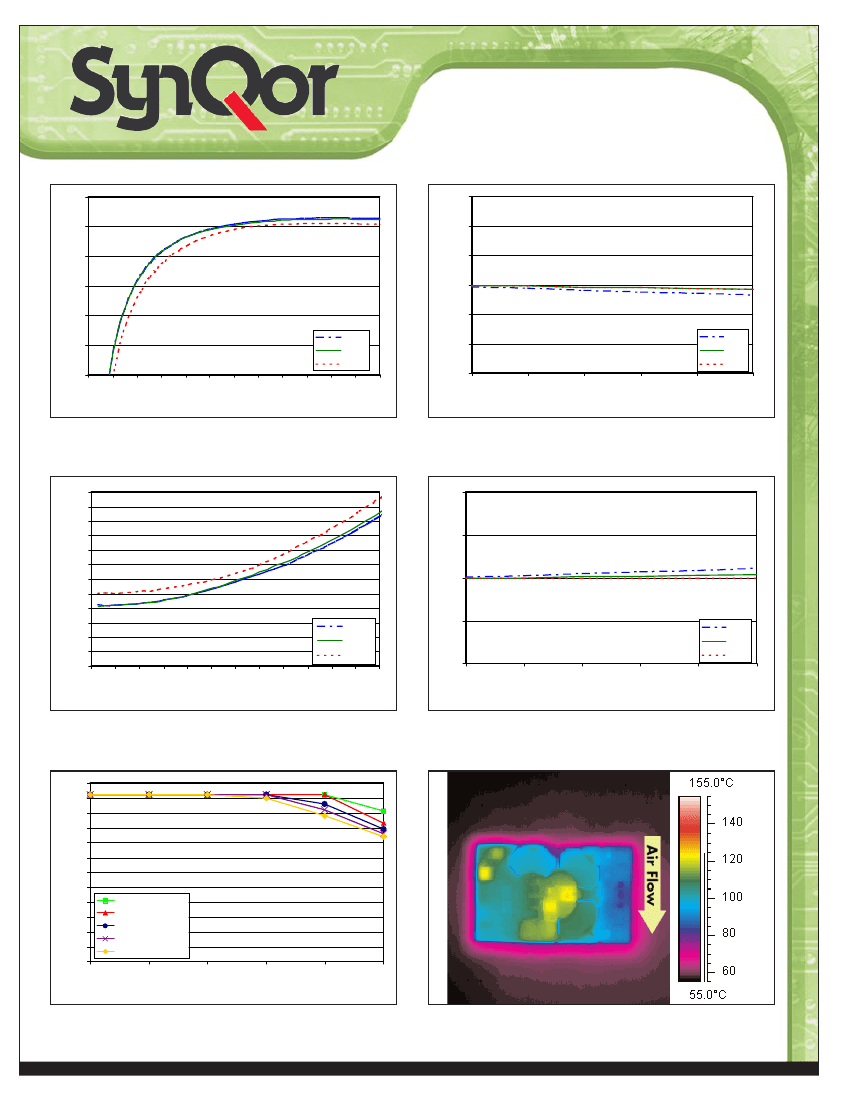

Performance Curves
Quarter
Brick
94
93
Efficiency (%)
95
90
85
80
75
70
65
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
40 Vin
48 Vin
75 Vin
48Vin 18Vout 5.6A
Efficiency (%)
92
91
90
89
88
0
100
200
300
400
Air Flow (LFM)
25 C
40 C
55 C
500
Load Current (A)
Figure 1:
Efficiency at nominal output voltage vs. load current for min-
imum, nominal, and maximum input voltage at 25
°
C.
Figure 2:
Efficiency at nominal output voltage and 60% rated power vs.
airflow rate for ambient air temperatures of 25
°
C, 40
°
C, and 55
°
C
(nominal input voltage).
8
12
11
10
Power Dissipation (W)
Power Dissipation (W)
9
8
7
6
5
4
3
2
1
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7
6
40 Vin
48 Vin
75 Vin
5
4
0
100
200
300
400
Air Flow (LFM)
25 C
40 C
55 C
500
Load Current (A)
Figure 3:
Power dissipation at nominal output voltage vs. load current
for minimum, nominal, and maximum input voltage at 25
°
C.
Figure 4:
Power dissipation at nominal output voltage and 60% rated
power vs. airflow rate for ambient air temperatures of 25
°
C, 40
°
C, and
55
°
C (nominal input voltage).
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
40
55
o
I
out
(A)
400 LFM (2.0 m/s)
300 LFM (1.5 m/s)
200 LFM (1.0 m/s)
100 LFM (0.5 m/s)
50 LFM (0.25 m/s)
70
85
Ambient Air Temperature ( C)
Semiconductor junction temperature is
within 1°C of surface temperature
Figure 5:
Maximum output power derating curves vs. ambient air tem-
perature for airflow rates of 50 LFM through 400 LFM with air flowing
across the converter from pin 1 to pin 3 (nominal input voltage).
Product # PQ65180QGA06
Phone 1-888-567-9596
Figure 6:
Thermal plot of converter at 6.1 amp load current (110W)
with 55
°
C air flowing at the rate of 200 LFM. Air is flowing across the
converter sideways from pin 1 to pin 3 (nominal input voltage).
Doc.# 005-2QG581D Rev. B
9/14/04
Page 5
京公网安备 11010802033920号
EEWORLD
