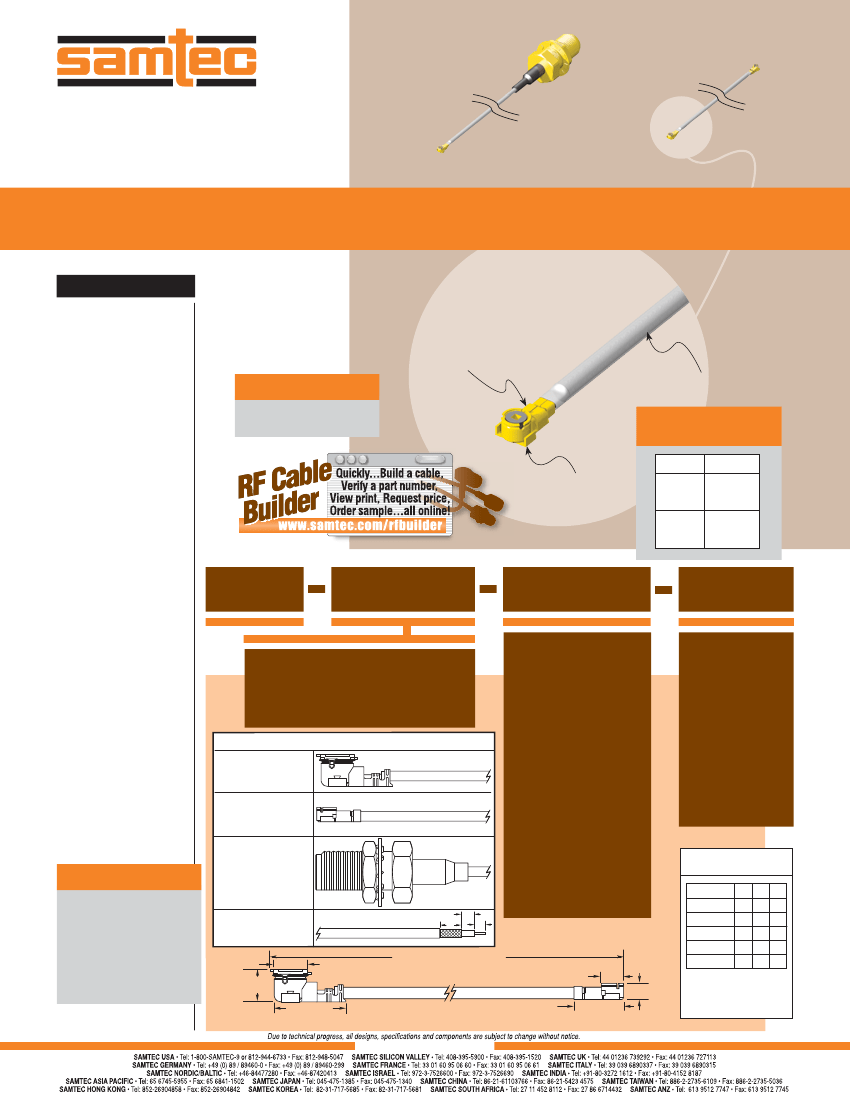

F-209-2
MH081–MH3RP–01BJ1–0300
MH081–MH3RP–MH3RP–0300
0,81
mm
MHF CABLE S
MH081* SERIES
SPECIFICATIONS
For complete specifications see
www.samtec.com?MH081 or
www.samtec.com?MH081
Outer Contact Material:
Au plated Phosphor Bronze
Center Contact Material:
Au plated Phosphor Bronze (MHX)
Au plated BeCu (SMA)
Insulator Material:
PBT (MHX)
PTFE (SMA)
Operating Temperature:
-40°C to +90°C
Voltage Rating:
170V max
Dielectric Withstanding
Voltage:
200 Vrms
Frequency Range:
0~3 GHZ
Contact Resistance:
Center Contact: 6mΩ max
Outer Contact: 2mΩ max
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
RoHS Compliant:
Yes
MH1RP End Mates with:
RSP-122811-01
MH3RP End Mates with:
RSP-122811-02
Micro High Frequency RF (End 1) and
MHF or SMA Bulkhead (End 2)
REMOVAL TOOL
–MH1RP = RSP-122893-01
–MH3RP = RSP-122893-02
(0,81mm) .032"
Diameter Cable
STANDARD PART
NUMBERS
-END 1
-END 2
-MH1RP
-01BJ1
-01BR1
-MH3RP
-01BJ1
-01BR1
Mating PCB
connectors
available
-MH1RP
-MH3RP
0,81mm Cable:
MH081
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
Impedance:
50Ω
Capacitance:
100pF/meter
Max Attenuation
(cable only):
3.1dB @ 1GHz
Conductor Size:
36 AWG, (0,81mm) .032" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
1.40Ω/meter max
Insulator Diameter:
(0,4mm) .016"
Insulator Material:
FEP
Shield Material:
Silver Plated Copper
Jacket Material:
FEP
Jacket Diameter:
(0,81mm) .032" dia.
Jacket Temp Rating:
-10°C to +90°C
RoHS Compliant:
–MH1RP
–MH1RP
= MHF1 Type Plug
= MHF1 Type Plug
–0050
= 1.97"
(50mm)
–MH3RP
= MHF3 Type Plug
–MH3RP
= MHF3 Type Plug
END OPTIONS
–MH1RP
(30µ" (0,76µm)
Gold on Center Contact,
Gold Flash on Shell)
–MH3RP
(30µ" (0,76µm)
Gold on Center Contact,
Gold Flash on Shell)
–01BJ1, –01BR1
&
–01SB1, –01SR1
(30µ" (0,76µm)
Gold on Center Contact,
Gold Flash on Shell)
XXXXXX
=
Stripped & Tinned
(End 2 callout)
(2,69) .105 DIA
(2,10)
.083
(6,96) .274
B
C
A
–0100
= 3.94"
(100mm)
–01BJ1
= SMA Bulkhead,
Straight Jack
–0150
= 5.91"
(150mm)
–01BR1
= SMA Bulkhead,
Straight Jack,
Reverse Polarity
–0300
= 11.81"
(300mm)
–01SB1
= SMA Sealed Bulkhead,
Straight Jack
ALSO AVAILABLE
• Micro RF PCB
connectors for Micro
High Frequency RF
• Additional end connector
combinations and
overall lengths
Contact:
RFgroup@samtec.com
*
MH081 Series was
previously RF081 Series
–01SR1
= SMA Sealed Bulkhead,
Straight Jack,
Reverse Polarity
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
XXXX = OAL (millimeters)
(1,64) .064 DIA
(1,20)
.047
(4,70) .185
Both center conductor
and braid shield are
Stripped and Tinned.
Call Samec for other sizes.
–MH1RP SHOWN
–MH3RP SHOWN
WWW.SAMTEC.COM
