GT6108A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> GT6108A

GT6108A: Description600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN; CategoryDiscrete semiconductor diode; File Size228KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

GT6108A Overview

600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN

GT6108A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	GLASS, CB-431, 2 PIN
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum breakdown voltage	12.6 V
Minimum breakdown voltage	11.4 V
Breakdown voltage nominal value	12 V
Shell connection	ISOLATED
Maximum clamping voltage	16.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	E-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	3 W
Maximum repetitive peak reverse voltage	9.1 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL

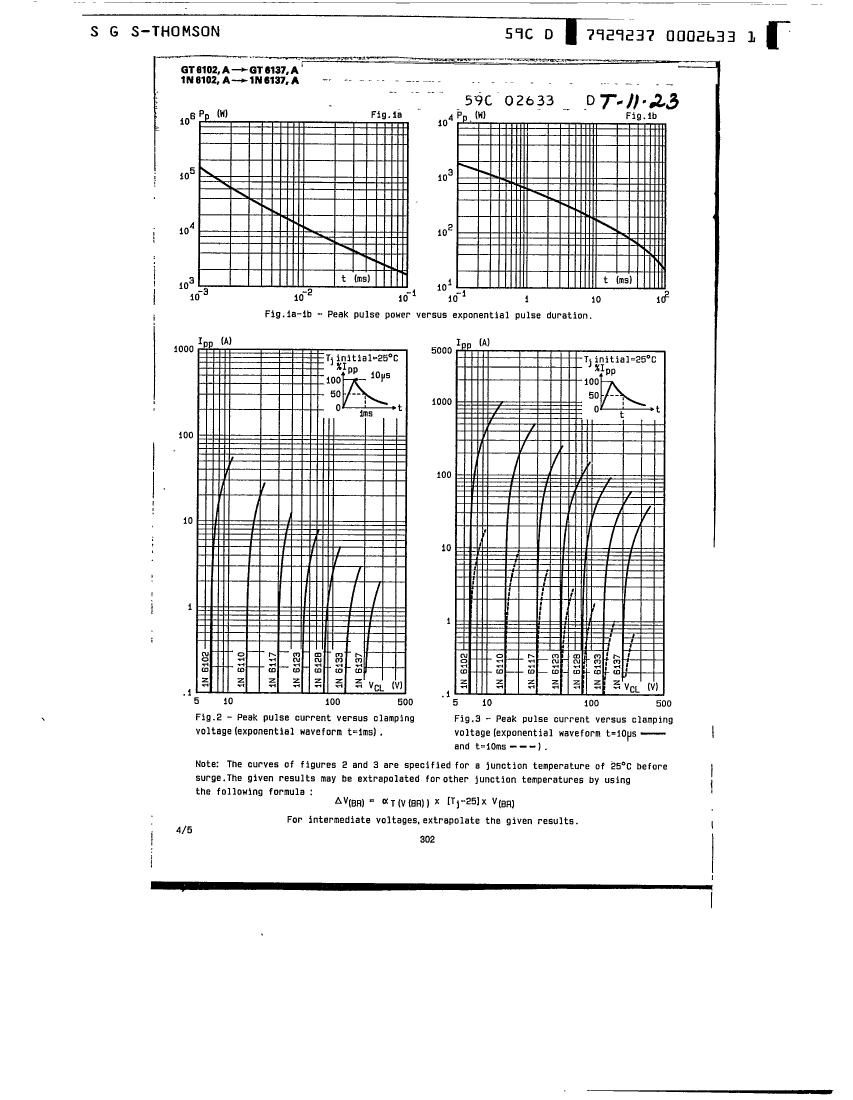

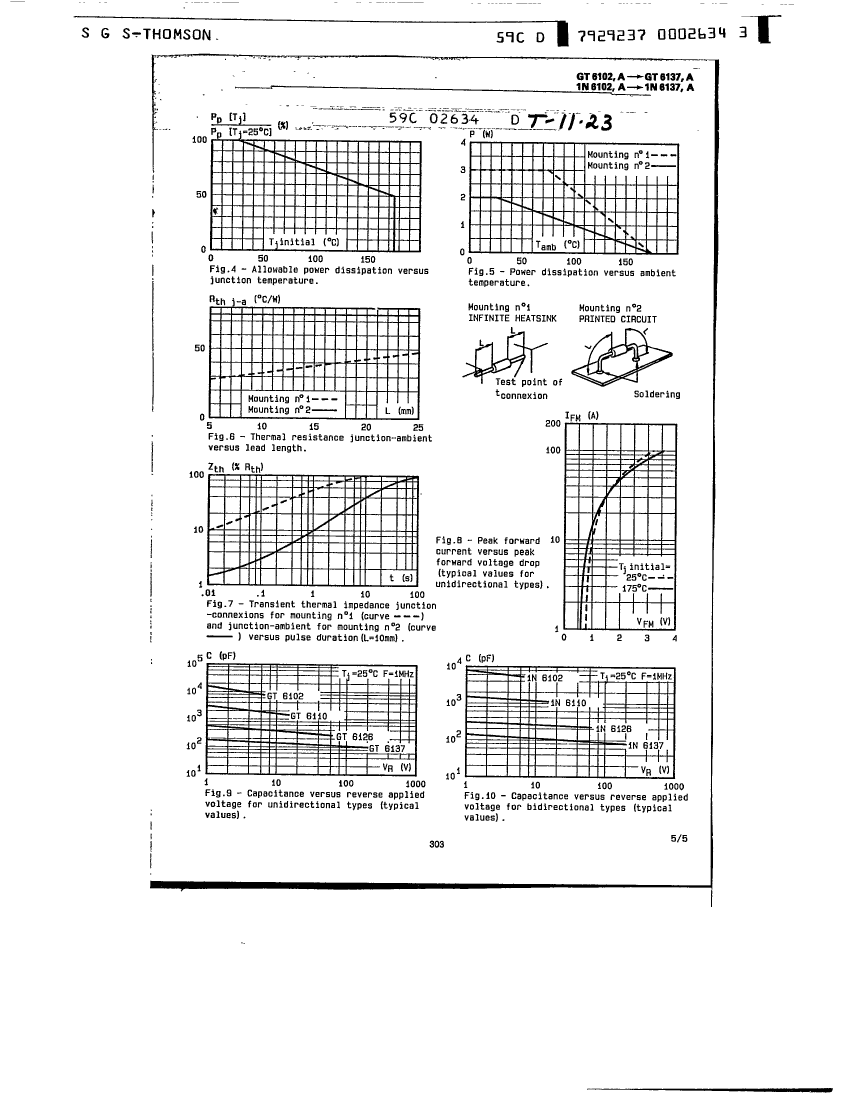

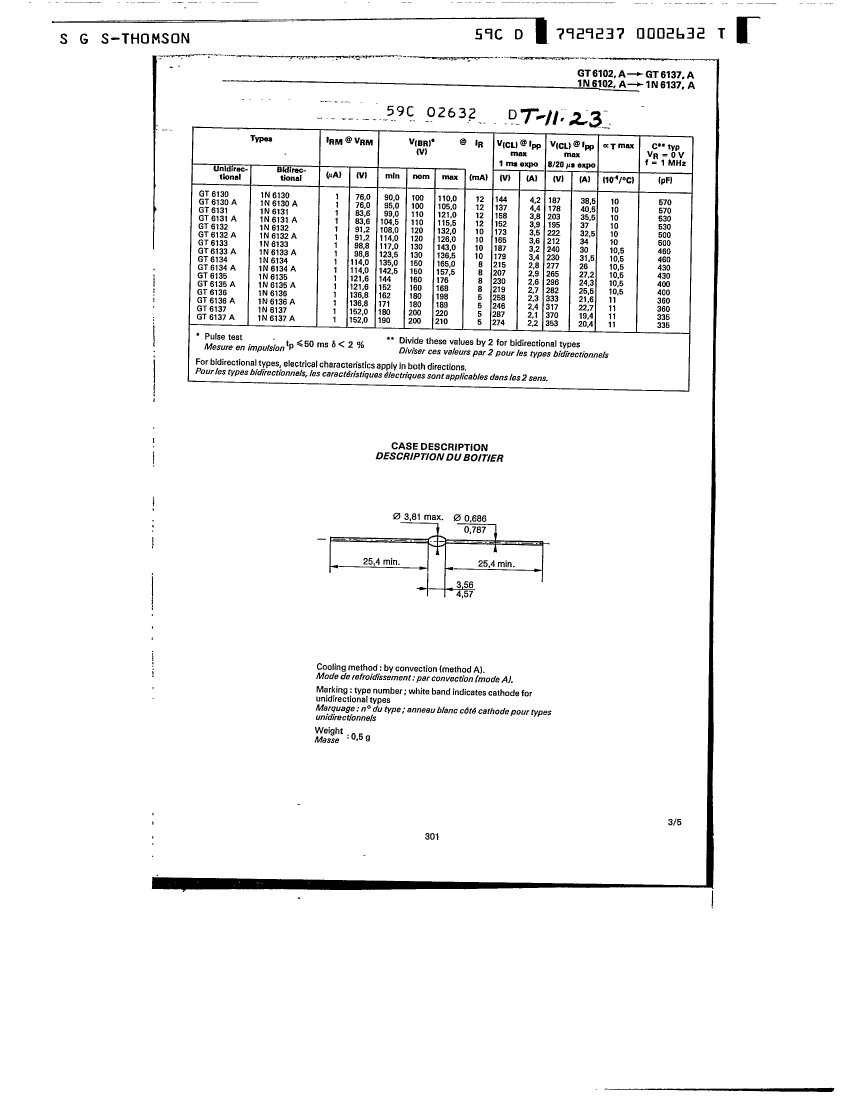

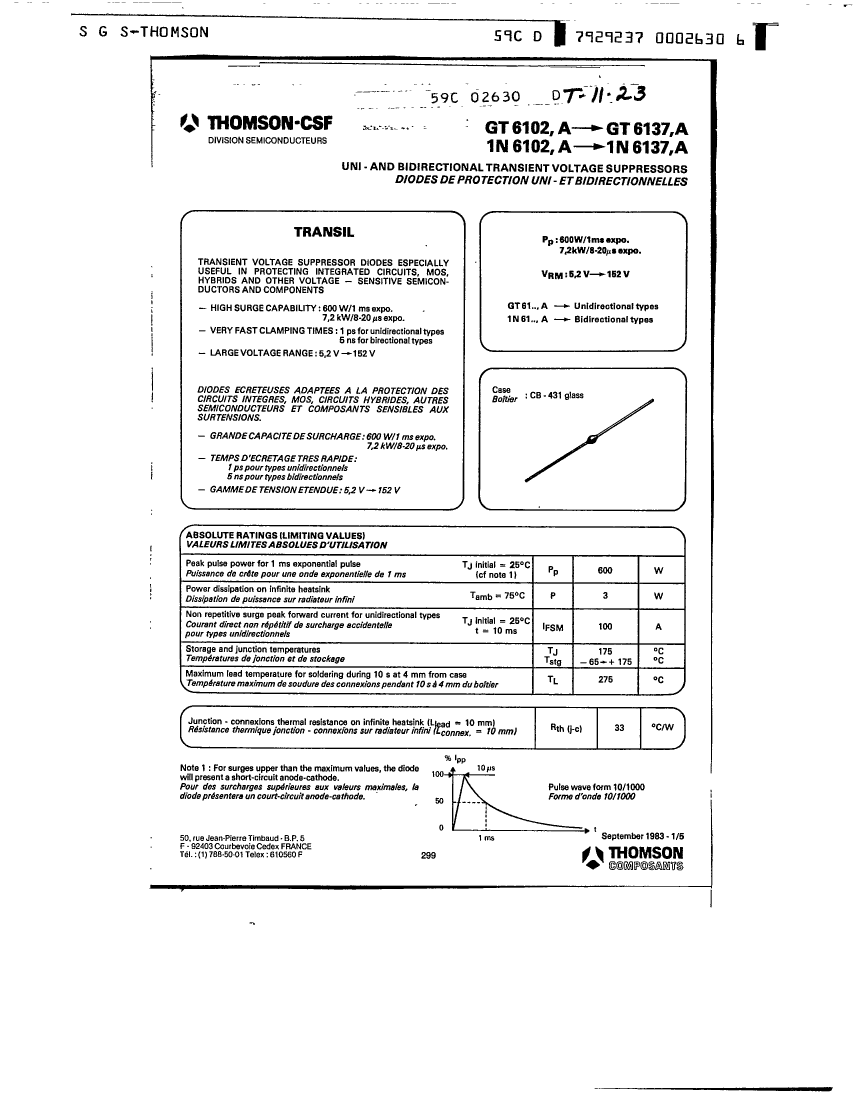

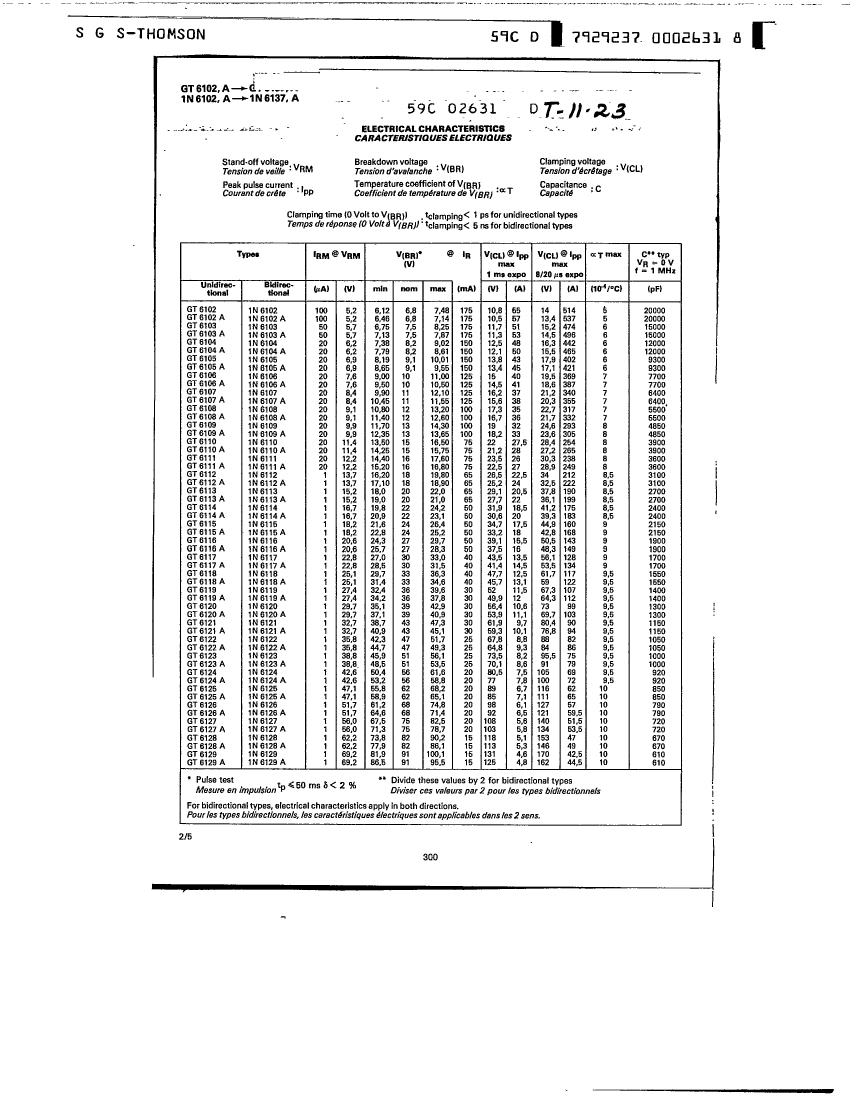

Preview

Download Datasheet

View All

GT6108A Related Products

	GT6108A	GT6109	GT6102	GT6107	GT6108	GT6106A	GT6109A
Description	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN	600W, UNIDIRECTIONAL, SILICON, TVS DIODE, GLASS, CB-431, 2 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	GLASS, CB-431, 2 PIN	GLASS, CB-431, 2 PIN	GLASS, CB-431, 2 PIN	GLASS, CB-431, 2 PIN	E-LALF-W2	E-LALF-W2	GLASS, CB-431, 2 PIN
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	12.6 V	14.3 V	7.48 V	12.1 V	13.2 V	10.5 V	13.65 V
Minimum breakdown voltage	11.4 V	11.7 V	6.12 V	9.9 V	10.8 V	9.5 V	12.35 V
Breakdown voltage nominal value	12 V	13 V	6.8 V	11 V	12 V	10 V	13 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum clamping voltage	16.7 V	19 V	10.8 V	16.2 V	17.3 V	14.5 V	18.2 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	E-LALF-W2	E-LALF-W2	E-LALF-W2	E-LALF-W2	E-LALF-W2	E-LALF-W2	E-LALF-W2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak reverse power dissipation	600 W	600 W	600 W	600 W	600 W	600 W	600 W
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	3 W	3 W	3 W	3 W	3 W	3 W	3 W
Maximum repetitive peak reverse voltage	9.1 V	9.9 V	5.2 V	8.4 V	9.1 V	7.6 V	9.9 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	STMicroelectronics	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
