2-530844-0 Overview

80 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AMP
body width	0.368 inch
subject depth	0.61 inch
body length	5.285 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	530844
Plug contact pitch	0.125 inch
Match contact row spacing	0.25 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	6.35 mm
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.187 inch
Terminal pitch	3.18 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

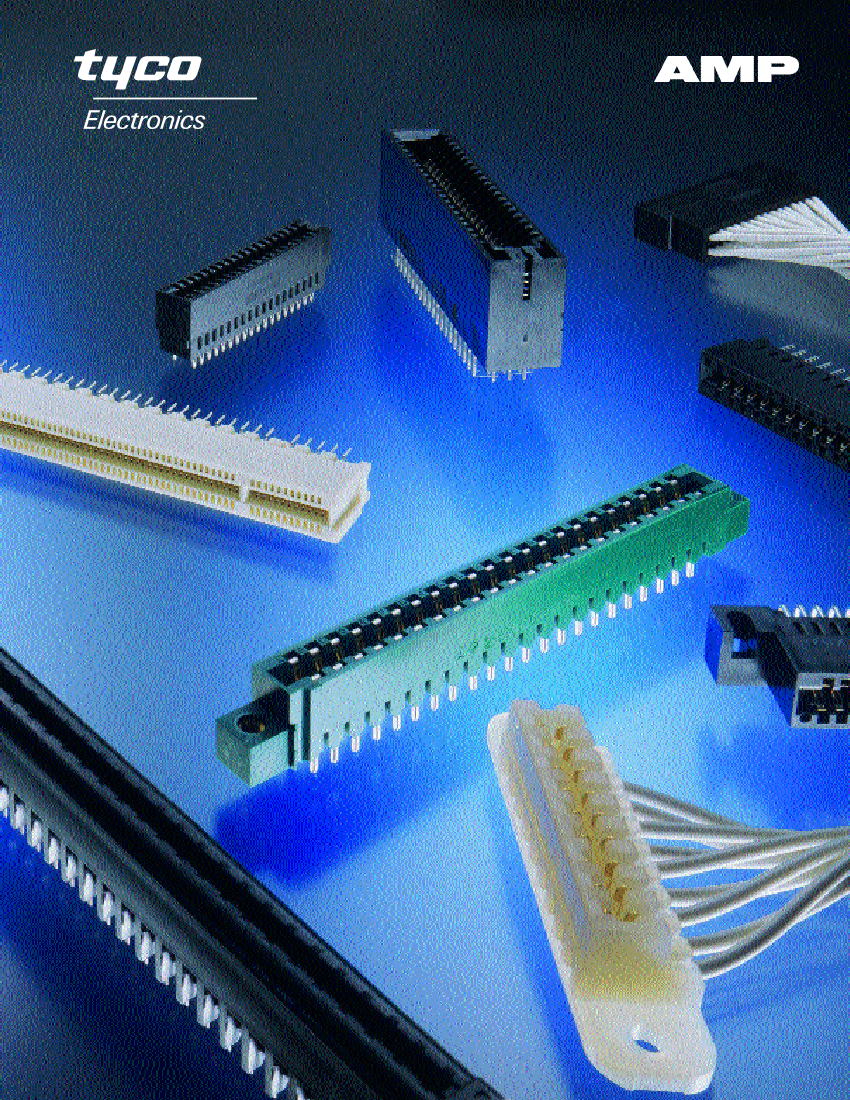

Card Edge Connectors

Catalog 1654080

Issued 7-03
