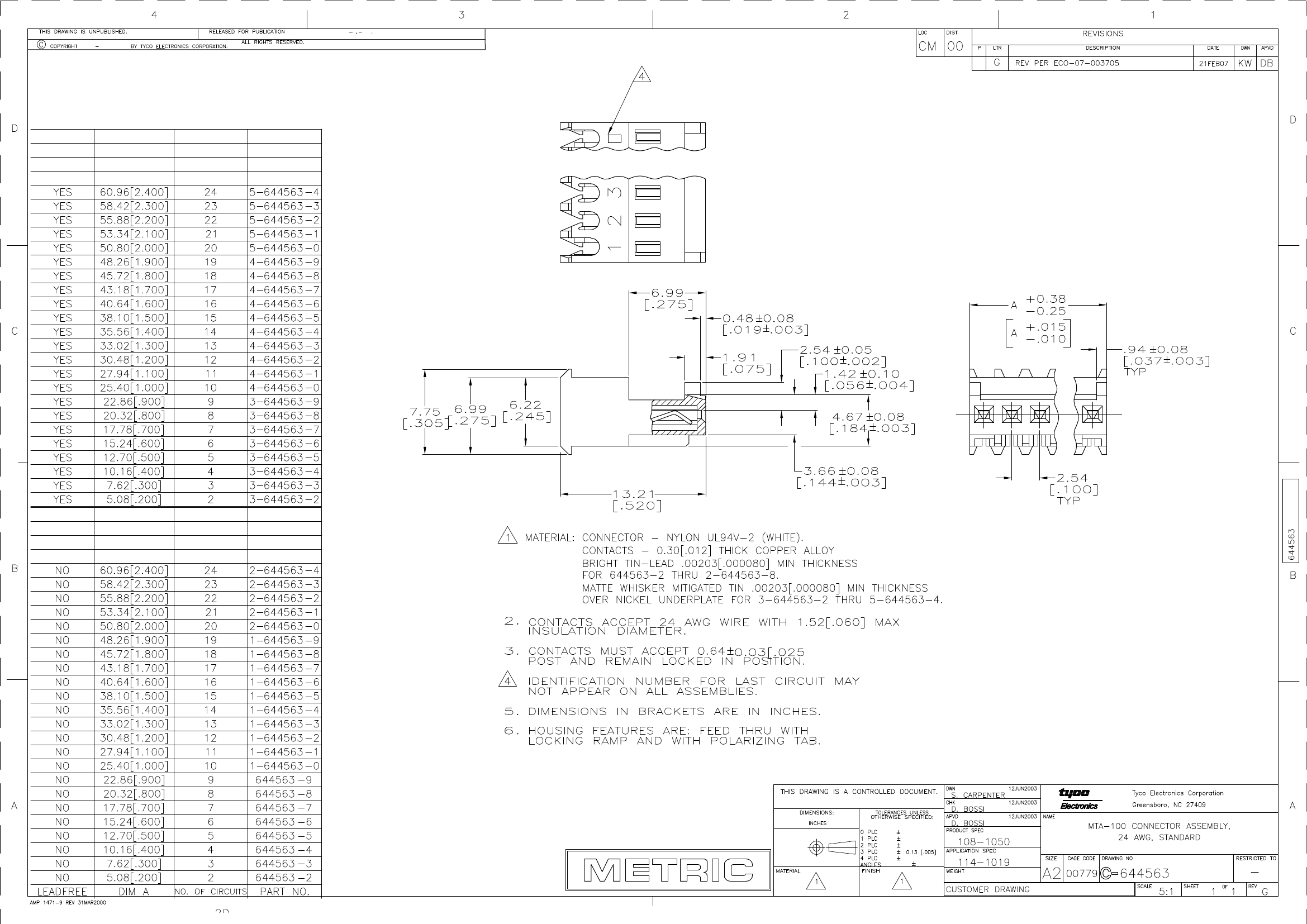

HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,POLARIZED LCK,WHITE
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknow |
| Other features | FEED THRU WITH POLARIZING TAB |
| body width | 0.305 inch |
| subject depth | 0.52 inch |
| body length | 2.4 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | SN |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 6 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 750VAC V |
| Durability | 25 Cycles |
| maximum insertion force | 8.896 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | WHITE |
| insulator material | NYLON |
| JESD-609 code | e3 |
| Plug contact pitch | 0.1 inch |
| Installation option 1 | POLARIZED LCK |
| Installation option 2 | LOCKING |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Plating thickness | 80u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Termination type | IDC |
| Total number of contacts | 24 |
| Maximum wire diameter | 22 AWG |
| Minimum wire diameter | 24 AWG |
| Evacuation force-minimum value | 3.614 N |
| Base Number Matches | 1 |
| 2-644563-4 | 2-644563-1 | 2-644563-2 | 2-644563-3 | ECS-196.6-10-46X-EN | |
|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,POLARIZED LCK,WHITE | HEADER CONNECTOR,CABLE MNT,PLUG,21 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,POLARIZED LCK,WHITE | HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,POLARIZED LCK,WHITE | HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,POLARIZED LCK,WHITE | Parallel - Fundamental Quartz Crystal, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | conform to |
| Reach Compliance Code | unknow | unknow | unknow | unknow | compliant |
| Other features | FEED THRU WITH POLARIZING TAB | FEED THRU WITH POLARIZING TAB | FEED THRU WITH POLARIZING TAB | FEED THRU WITH POLARIZING TAB | BULK |
| JESD-609 code | e3 | e3 | e3 | e3 | e2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -40 °C |
| body width | 0.305 inch | 0.305 inch | 0.305 inch | 0.305 inch | - |
| subject depth | 0.52 inch | 0.52 inch | 0.52 inch | 0.52 inch | - |
| body length | 2.4 inch | 2.1 inch | 2.2 inch | 2.3 inch | - |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | - |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contactor design | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | - |
| Contact to complete cooperation | SN | SN | SN | SN | - |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | - |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | - |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Contact resistance | 6 mΩ | 6 mΩ | 6 mΩ | 6 mΩ | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - |
| Dielectric withstand voltage | 750VAC V | 750VAC V | 750VAC V | 750VAC V | - |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles | - |
| maximum insertion force | 8.896 N | 8.896 N | 8.896 N | 8.896 N | - |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - |
| Insulator color | WHITE | WHITE | WHITE | WHITE | - |
| insulator material | NYLON | NYLON | NYLON | NYLON | - |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - |
| Installation option 1 | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | POLARIZED LCK | - |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | - |
| Installation type | CABLE | CABLE | CABLE | CABLE | - |
| Number of rows loaded | 1 | 1 | 1 | 1 | - |
| Plating thickness | 80u inch | 80u inch | 80u inch | 80u inch | - |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | - |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | - |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - |
| Termination type | IDC | IDC | IDC | IDC | - |
| Total number of contacts | 24 | 21 | 22 | 23 | - |
| Maximum wire diameter | 22 AWG | 22 AWG | 22 AWG | 22 AWG | - |
| Minimum wire diameter | 24 AWG | 24 AWG | 24 AWG | 24 AWG | - |
| Evacuation force-minimum value | 3.614 N | 3.614 N | 3.614 N | 3.614 N | - |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
