AM29803APCT

Description
Microprocessor Circuit, TTL, PDIP16
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size294KB,7 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric Compare View All

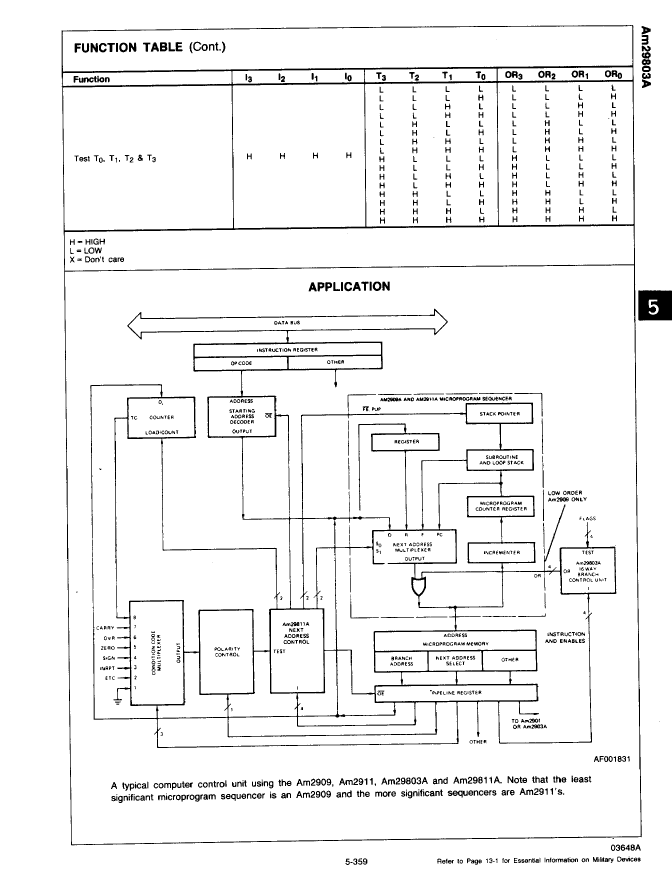

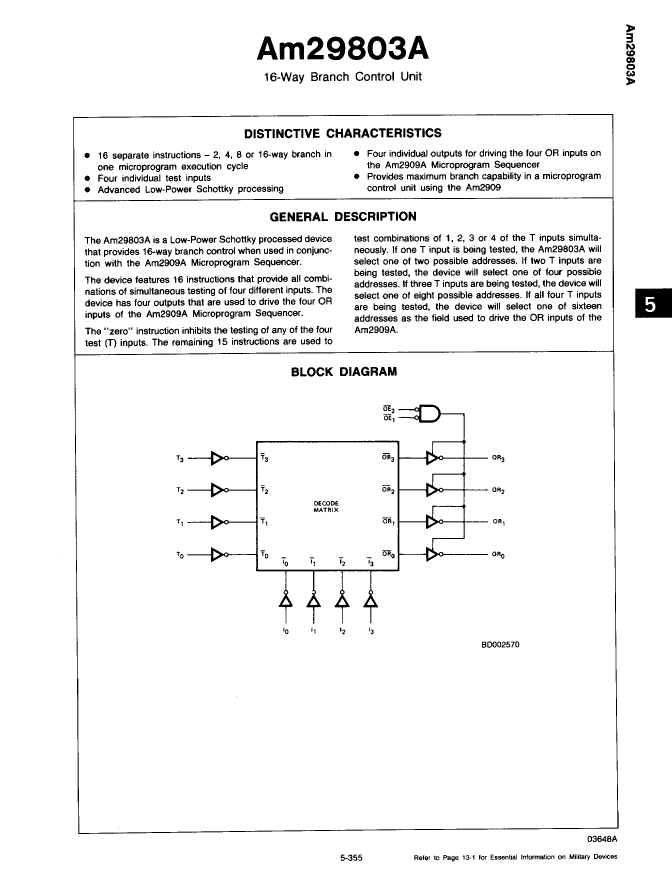

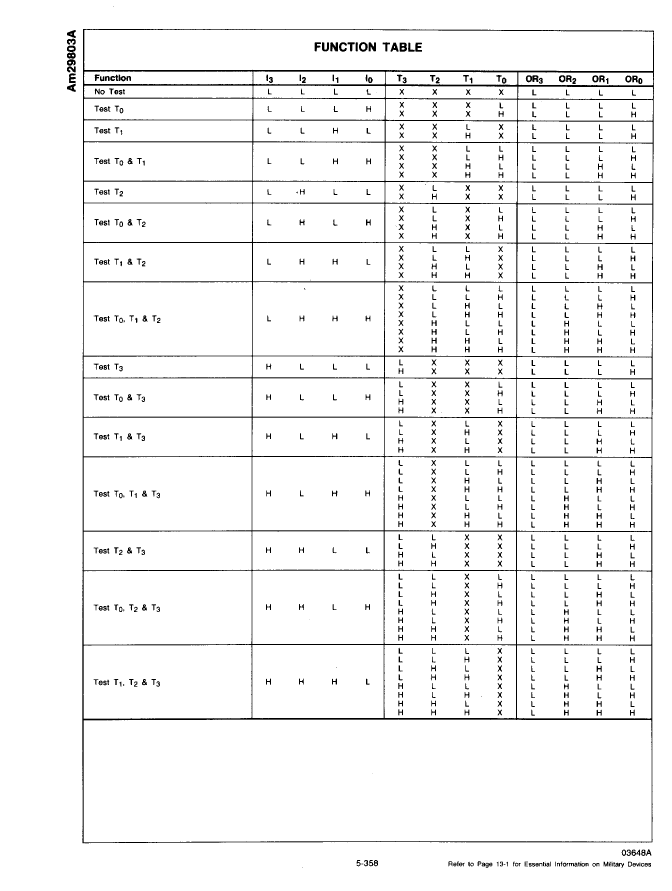

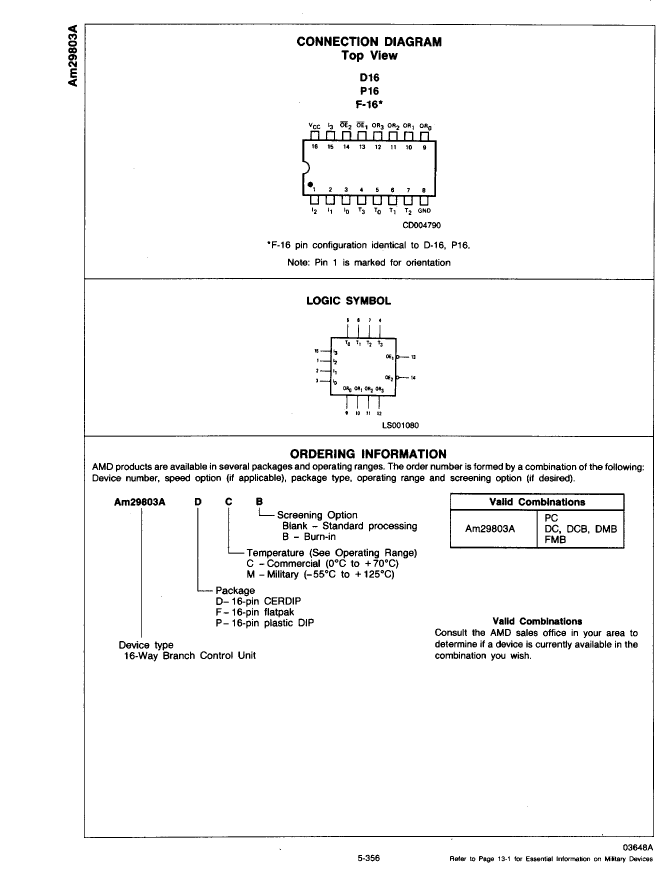

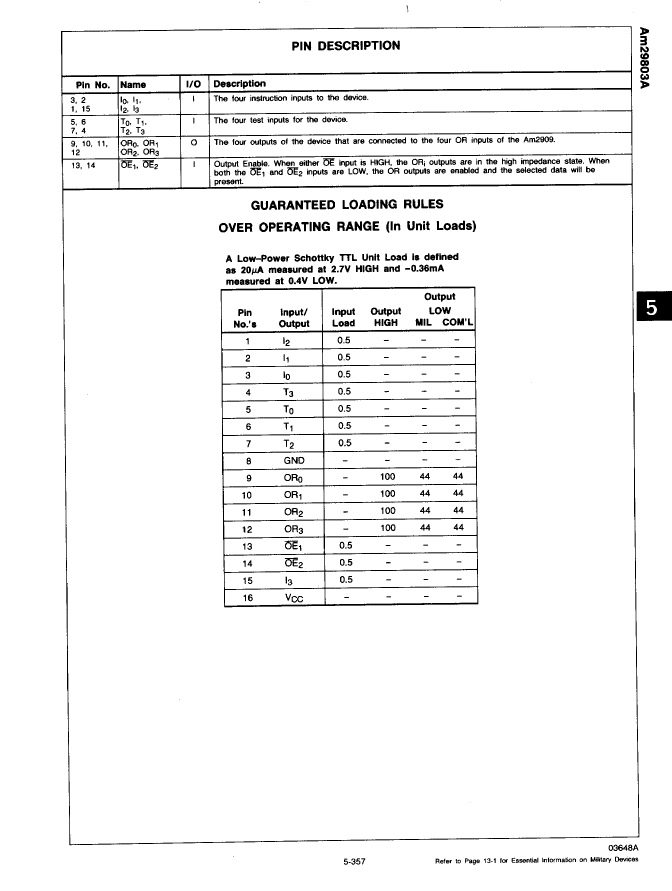

AM29803APCT Overview

Microprocessor Circuit, TTL, PDIP16

AM29803APCT Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAMD
package instructionDIP, DIP16,.3
Reach Compliance Codecompliant
JESD-30 codeR-PDIP-T16
JESD-609 codee0
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
uPs/uCs/peripheral integrated circuit typeMICROPROCESSOR CIRCUIT

AM29803APCT Related Products

AM29803APCT AM29803ADCTB AM29803ADCT AM29803AFM AM29803APCTB AM29803APCB
Description Microprocessor Circuit, TTL, PDIP16 Microprocessor Circuit, TTL, CDIP16 Microprocessor Circuit, TTL, CDIP16 Microprocessor Circuit, TTL, CDIP16 Microprocessor Circuit, TTL, PDIP16 Microprocessor Circuit, TTL, PDIP16
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
package instruction DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3
Reach Compliance Code compliant compliant compliant unknown compliant compliant
JESD-30 code R-PDIP-T16 R-XDIP-T16 R-XDIP-T16 R-XDIP-T16 R-PDIP-T16 R-PDIP-T16
JESD-609 code e0 e0 e0 e0 e0 e0
Number of terminals 16 16 16 16 16 16
Maximum operating temperature 70 °C 70 °C 70 °C 125 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP16,.3 DIP16,.3 DIP16,.3 DIP16,.3 DIP16,.3 DIP16,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
surface mount NO NO NO NO NO NO
technology TTL TTL TTL TTL TTL TTL
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL MILITARY COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
uPs/uCs/peripheral integrated circuit type MICROPROCESSOR CIRCUIT MICROPROCESSOR CIRCUIT MICROPROCESSOR CIRCUIT MICROPROCESSOR CIRCUIT MICROPROCESSOR CIRCUIT MICROPROCESSOR CIRCUIT
Maker AMD AMD AMD - AMD AMD
