2-640621-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-640621-8

2-640621-8: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,NATURAL; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-640621-8 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,NATURAL

2-640621-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	DAISY CHAIN
body width	0.52 inch
subject depth	0.275 inch
body length	2.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e4
Plug contact pitch	0.1 inch
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.275 inch
Total number of contacts	28
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

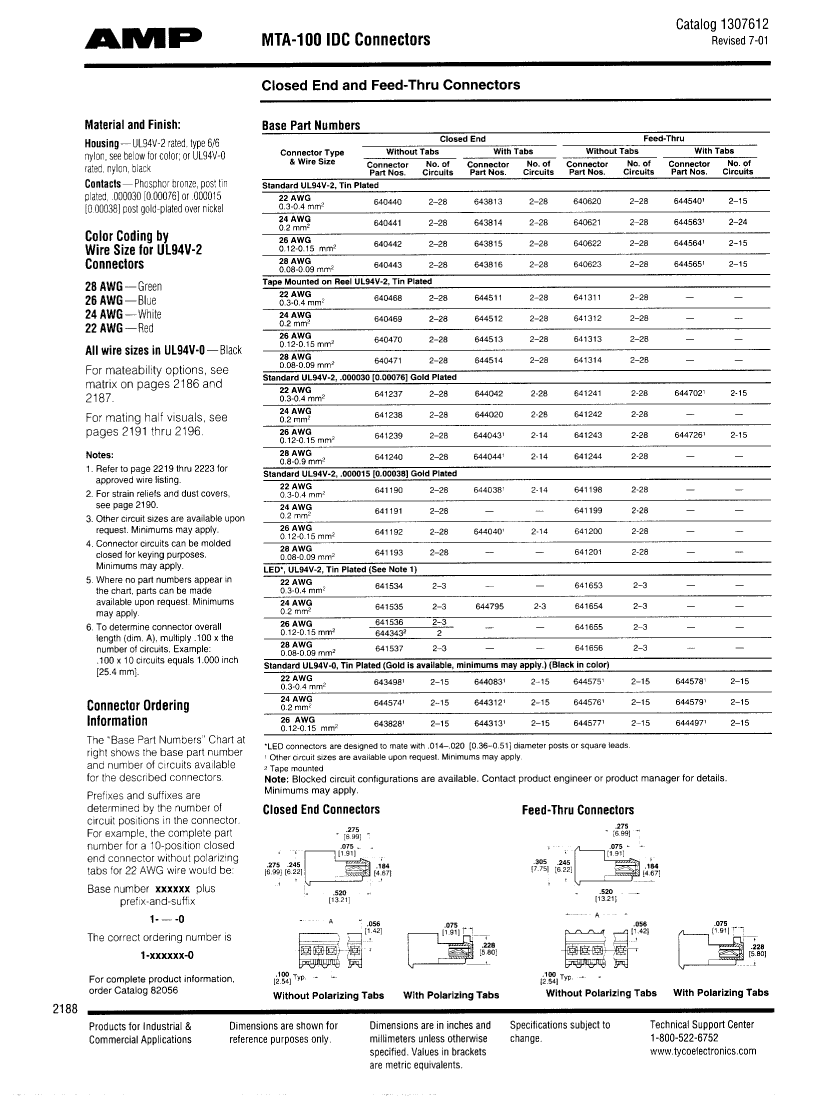

Preview

Download Datasheet

View All

2-640621-8 Related Products

	2-640621-8	2-640470-8	2-641191-8	2-640441-8	2-640443-8	2-643814-8	2-641238-8
Description	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,NATURAL	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,BLUE	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,WHITE	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,NATURAL	28 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, IDC	28 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	HEADER CONNECTOR,CABLE MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,NATURAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	compli	unknow	unknow	unknow
Other features	DAISY CHAIN	CLOSED END, TAPE MOUNTED	CLOSED END, LOOSE PIECE PKG.	CLOSED END, TERMINATION	AMP	POLARIZED	CLOSED END, TERMINATION
body width	0.52 inch	0.275 inch	0.275 inch	0.52 inch	0.275 inch	0.52 inch	0.52 inch
subject depth	0.275 inch	0.52 inch	0.52 inch	0.275 inch	0.52 inch	0.275 inch	0.275 inch
body length	2.8 inch	2.8 inch	2.8 inch	2.8 inch	2.8 inch	2.8 inch	2.8 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	AU ON NI	SN	TIN LEAD	TIN LEAD	AU ON NI
Contact completed and terminated	Gold (Au)	Tin (Sn)	GOLD	Gold (Au)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	6 mΩ	6 mΩ	5 mΩ	6 mΩ	5 mΩ	5 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	NATURAL	BLUE	WHITE	NATURAL	GREEN	NATURAL	NATURAL
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	4 A	5 A	5 A	4 A	5 A	4 A	4 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	28	28	28	28	28	28	28
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	28 AWG	26 AWG	24 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Base Number Matches	1	1	1	1	1	1	1
JESD-609 code	e4	e3	-	e4	e0	e0	-
Terminal length	0.275 inch	-	-	0.275 inch	-	0.275 inch	0.275 inch
Installation type	-	CABLE	CABLE	-	CABLE	CABLE	-
Plating thickness	-	80u inch	15u inch	-	80u inch	-	30u inch
Termination type	-	IDC	IDC	-	IDC	IDC	-
