HW-06-15-G-S-350-SM datasheet, PDF

Datasheet> All Categories > The connector> The connector> HW-06-15-G-S-350-SM

HW-06-15-G-S-350-SM: DescriptionBoard Stacking Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size879KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HW-06-15-G-S-350-SM Overview

Board Stacking Connector, 6 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

HW-06-15-G-S-350-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

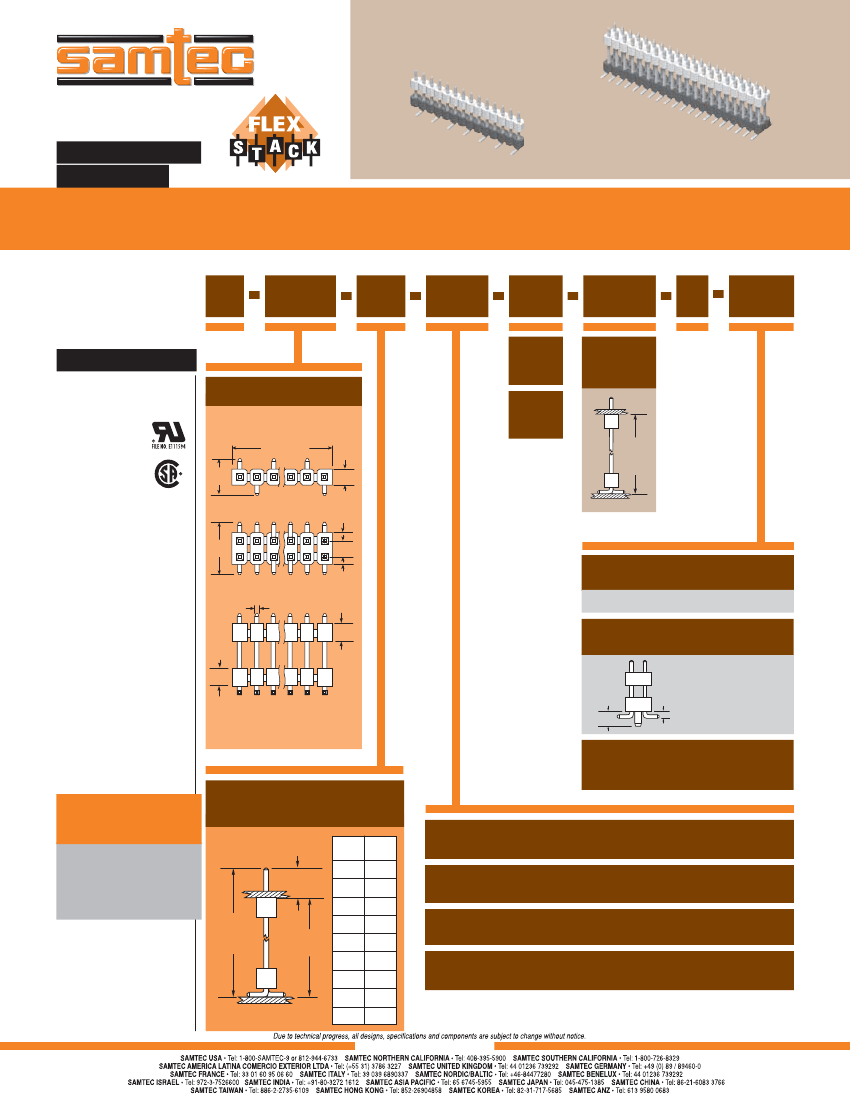

F-213-1

HW–14–08–G–S–350–SM

(2,54 mm) .100"

HW SERIES

HW–20–15–G–D–475–SM

FLEXIBLE .025" SQ BOARD STACKERS

Mates with:

SSW, SSQ, ESW, ESQ,

CES, SLW, BSW, BCS,

SSM, IDSS, IDSD, HLE,

PHF, SMSD, SMSS

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

OTHER

OPTIONS

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?HW-SM

Insulator Material:

Top: Natural LCP

Bottom: Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

3A per contact

@ 80°C ambient

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max

–S

= Single

Row

–“XXX”

= Stacker

Height

02 thru 36

(2,54) .100 x

No. of Positions

(2,54)

.100

–D

= Double

Row

STACKER

HEIGHT

(6,35)

.250

MIN

(4,70)

.185

(7,37)

.290

(2,54)

.100

(5,08)

.200

(0,64) .025 SQ TYP

(2,54)

.100

Processing:

–‘‘XXX’’

= Polarized

Specify omitted pin position

–A

= Alignment Pin

Double row only

(1,27)

.050

(2,54)

.100

(2,54)

.100

(Metal or plastic at

Samtec discretion)

–TR

= Tape & Reel Packaging (27 positions Max.)

(Not Available on Lead Styles 10, 11, 12 & 20)

APPLICATION

SPECIFIC

OPTION

Locking Clip (Manual

placement required)

available with

double row -SM.

Call Samtec.

Specify LEAD STYLE

from chart

LEAD

OAL

STYLE

(SMT)

–F

= Gold ﬂash on contact, Matte Tin on tail

POST

(0,00).000

MIN

– 08

– 09

–10

(11,81)

.465

(16,89)

.665

(19,43)

.765

(21,97)

.865

(24,51)

.965

(14,35)

.565

(9,65)

.380

(10,54)

.415

(27,05)

1.065

–L

= 10µ" (0,25 µm) Gold on contact area of longer tail, Matte Tin on tail

OVERALL

LENGTH

–11

STACKER

HEIGHT

–G

= 10µ" (0,25 µm) Gold on contact area of longer tail, Gold ﬂash on balance

Note:

For added mechanical

stability, Samtec recommends

mechanical board spacers be

used in applications with gold or

selective gold plated connectors.

Contact ipg@samtec.com for

more information.

Note:

This Series is

non-standard, non-returnable.

(OAL)

–12

–15

–16

–17

– 20

–T

= Matte Tin

Note:

Other Gold plating options available.

Contact Samtec.

WWW.SAMTEC.COM
