IDT54AHCT573LB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> IDT54AHCT573LB

Preview

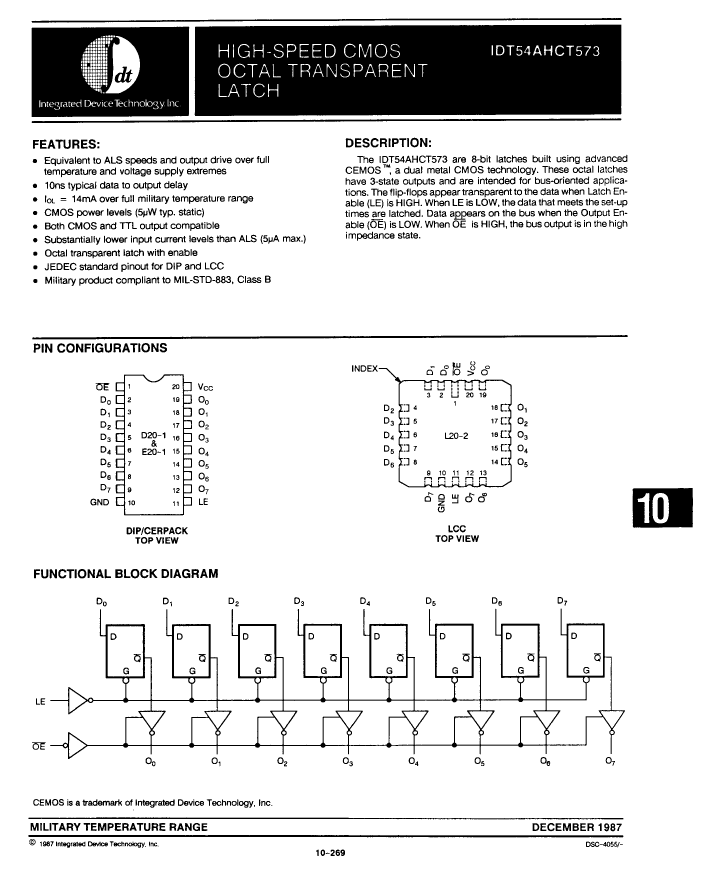

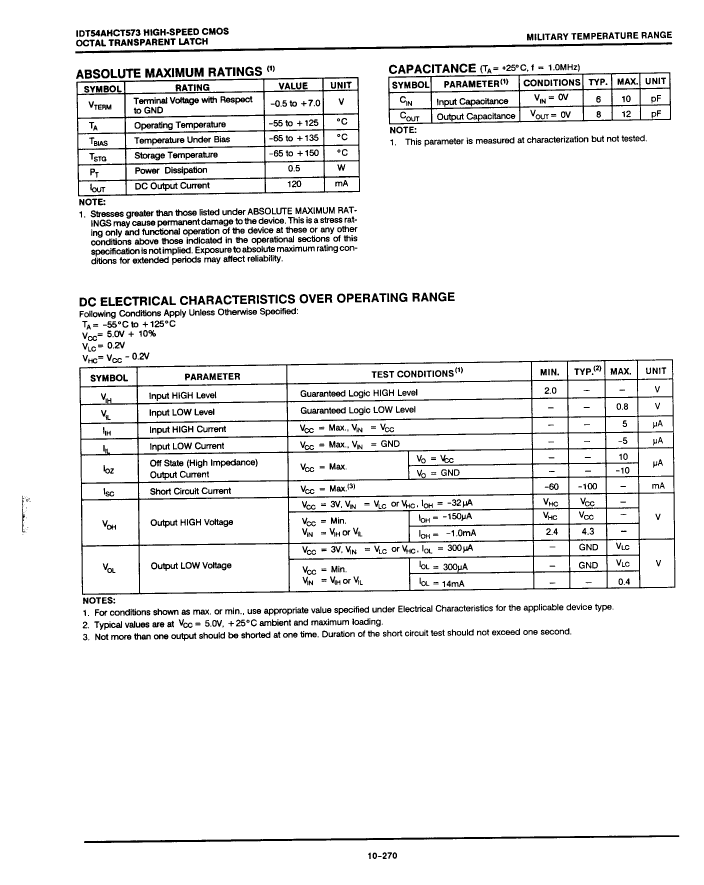

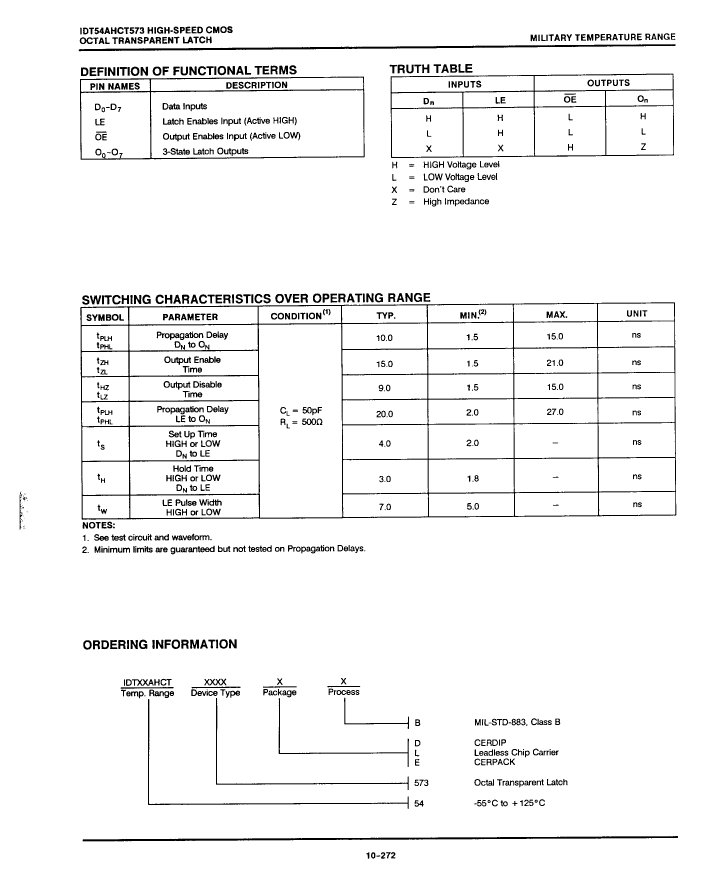

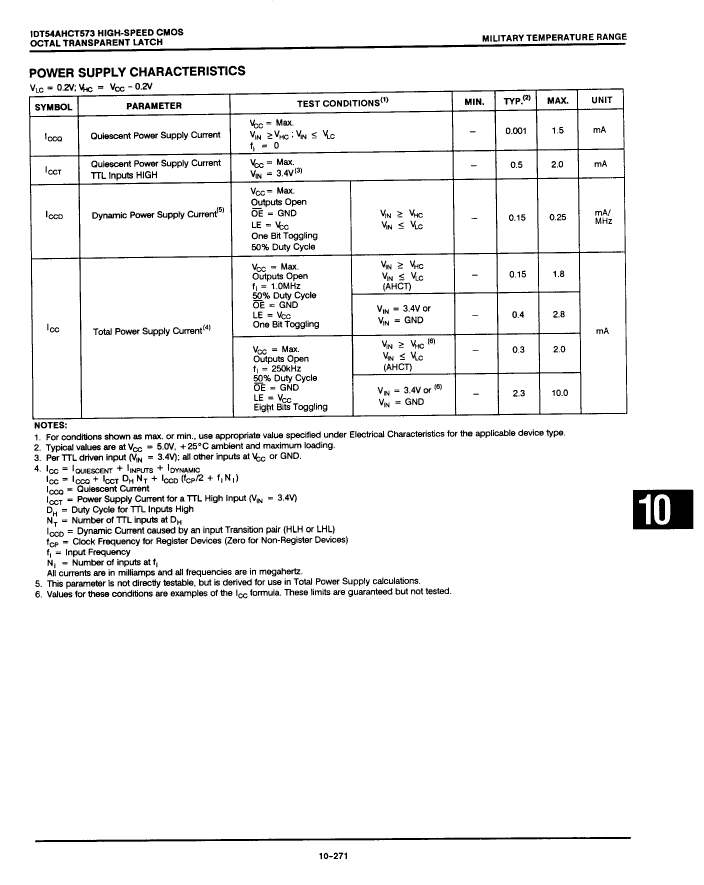

IDT54AHCT573LB: DescriptionD Latch, 1-Func, 8-Bit, CMOS, CQCC20; Categorylogic logic; File Size206KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54AHCT573LB Overview

D Latch, 1-Func, 8-Bit, CMOS, CQCC20

IDT54AHCT573LB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.014 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

IDT54AHCT573LB Related Products

	IDT54AHCT573LB	5962-01-305-5389	IDT54AHCT573DB	IDT54AHCT573EB	74AHCT573D	74AHCT573L	IDT74AHCT573L
Description	D Latch, 1-Func, 8-Bit, CMOS, CQCC20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CDFP20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CQCC20	D Latch, 1-Func, 8-Bit, CMOS, CQCC20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	_compli	not_compliant	not_compliant
JESD-30 code	S-XQCC-N20	R-XDIP-T20	R-XDIP-T20	R-XDFP-F20	R-XDIP-T20	S-XQCC-N20	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	BUS DRIVER	D LATCH	D LATCH
MaximumI(ol)	0.014 A	0.014 A	0.014 A	0.014 A	0.024 A	0.024 A	0.024 A
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	DIP	DFP	DIP	QCCN	QCCN
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3	DIP20,.3	FL20,.3	DIP20,.3	LCC20,.35SQ	LCC20,.35SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	225	225	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	30	30	30	6	6	6	6
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	-
package instruction	QCCN, LCC20,.35SQ	-	DIP, DIP20,.3	DFP, FL20,.3	DIP, DIP20,.3	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-	-
