UPD42S17800LG5-A80-7JD datasheet, PDF

Datasheet> All Categories > storage> storage> UPD42S17800LG5-A80-7JD

UPD42S17800LG5-A80-7JD: DescriptionFast Page DRAM, 2MX8, 80ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28; Categorystorage storage; File Size475KB，32 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD42S17800LG5-A80-7JD Overview

Fast Page DRAM, 2MX8, 80ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28

UPD42S17800LG5-A80-7JD Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	TSOP
package instruction	TSOP2,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
JESD-30 code	R-PDSO-G28
length	18.41 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm

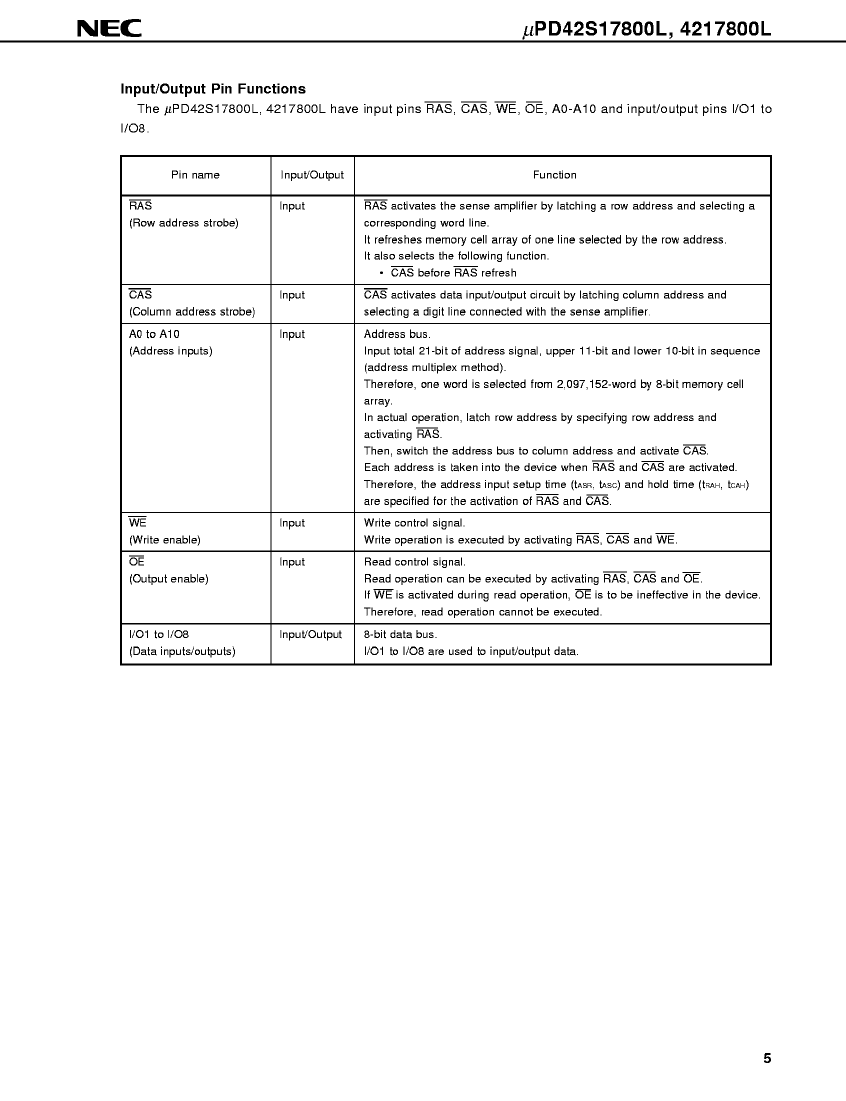

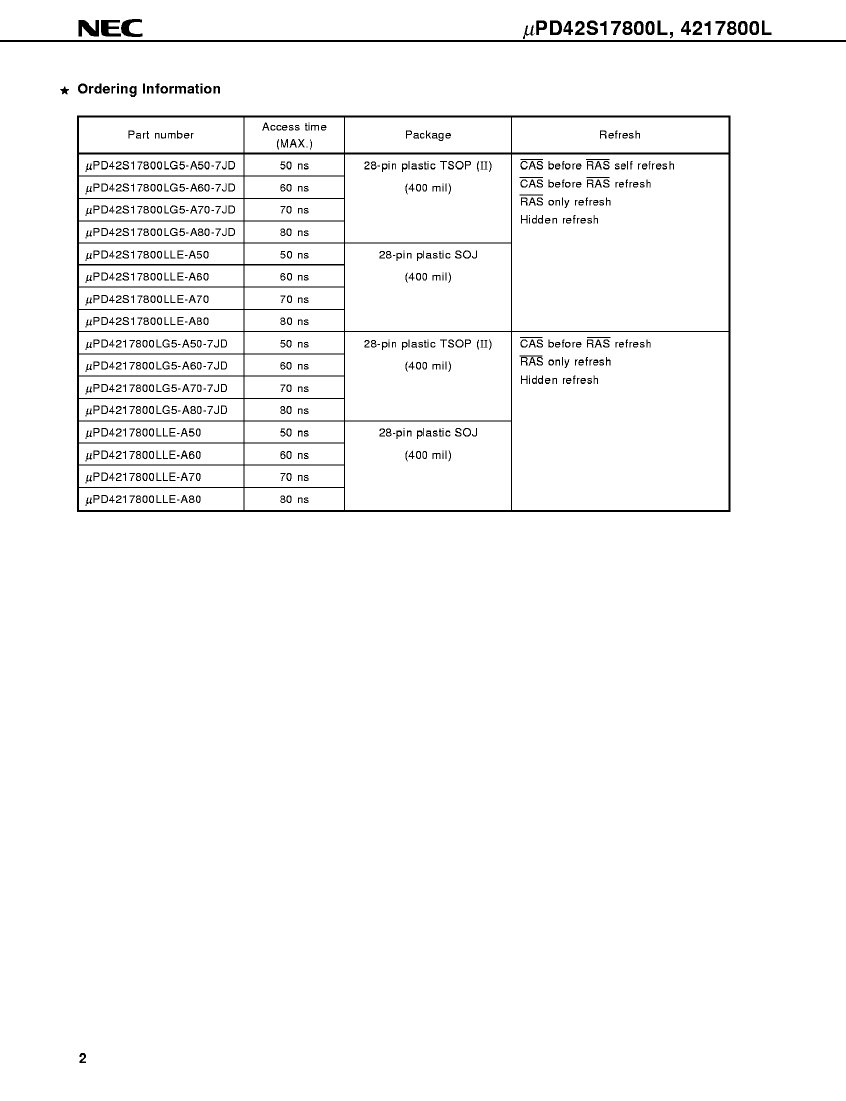

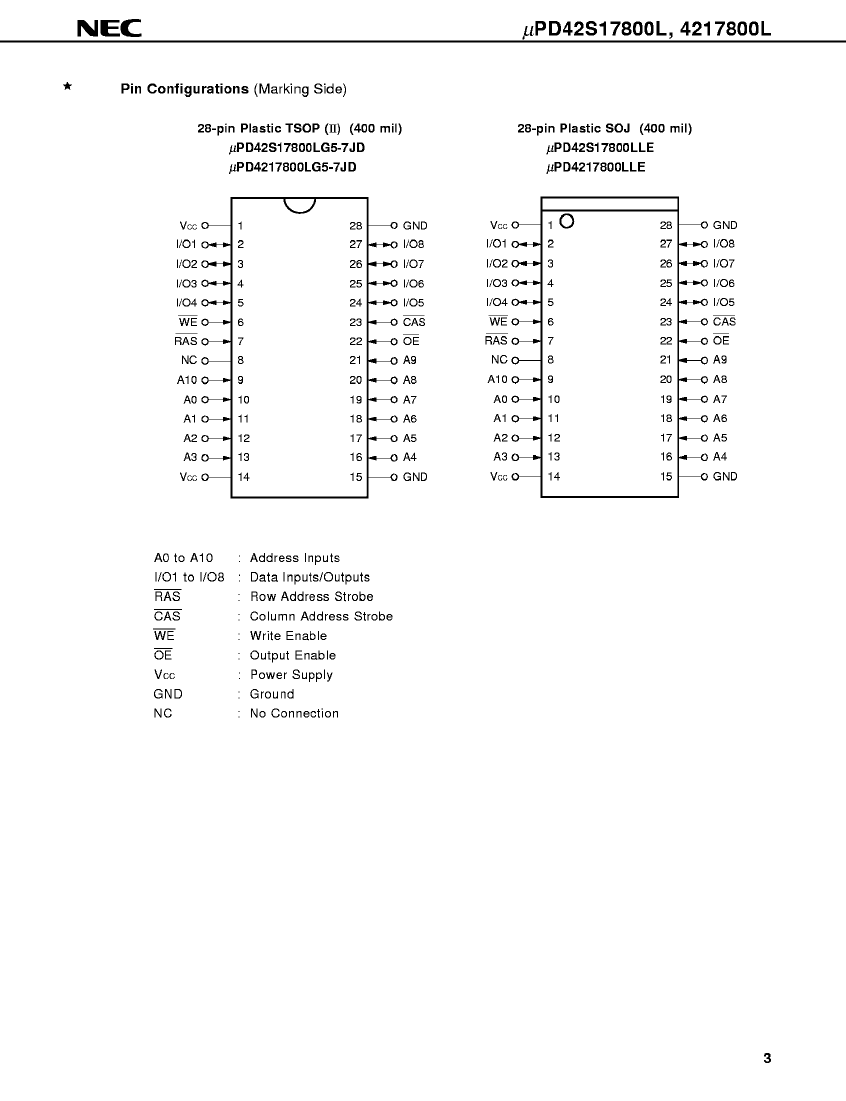

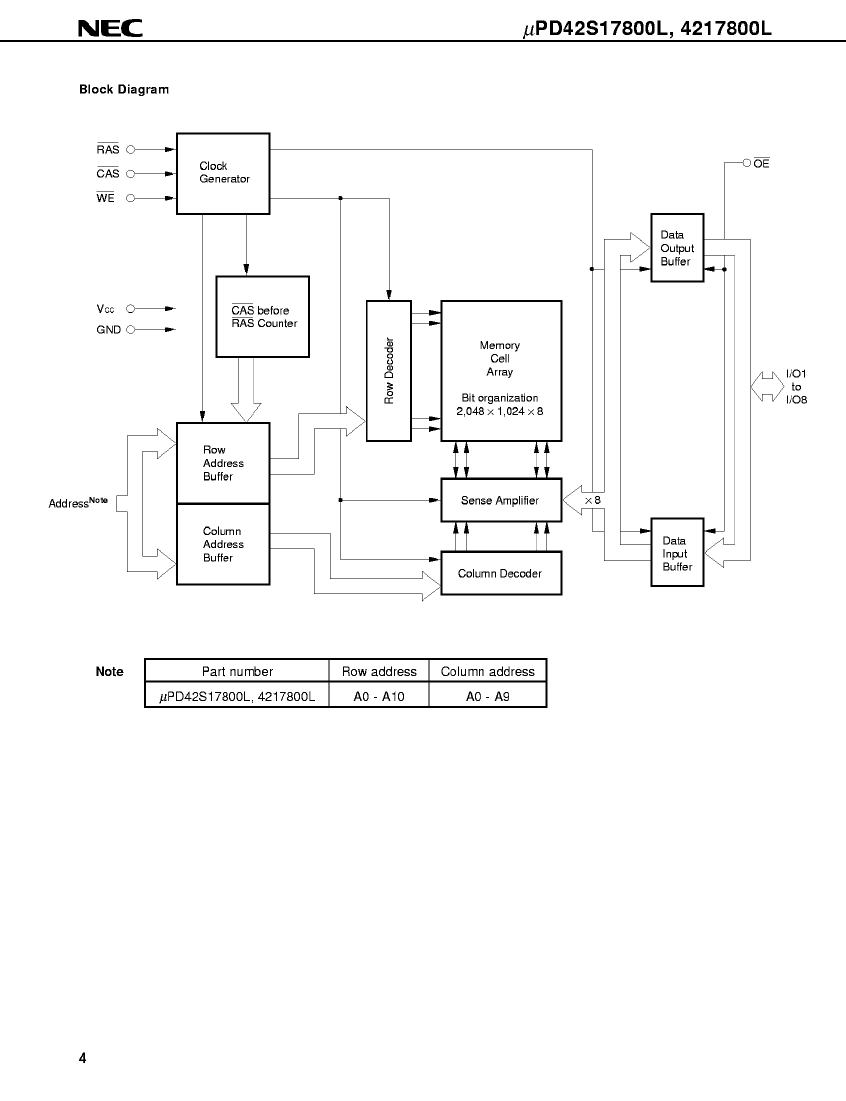

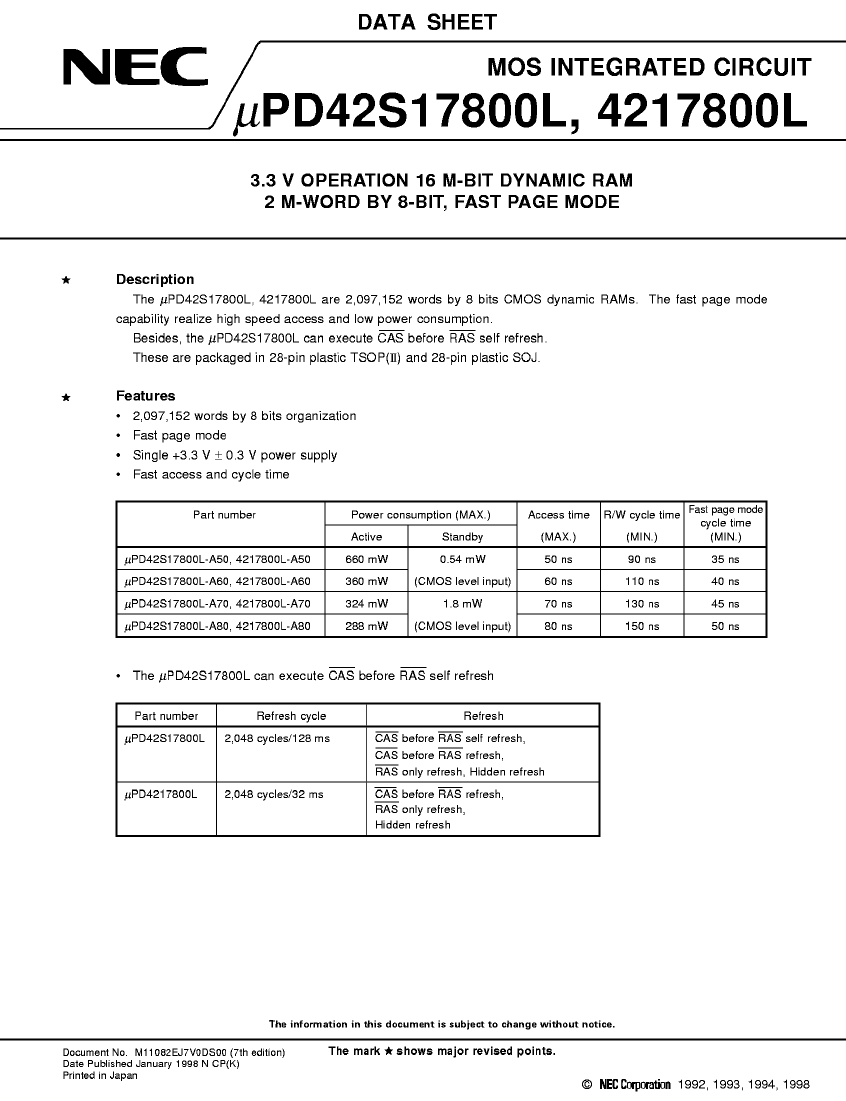

Preview

Download Datasheet

View All

UPD42S17800LG5-A80-7JD Related Products

	UPD42S17800LG5-A80-7JD	UPD42S17800LG5-A50-7JD	UPD4217800LG5-A70-7JD
Description	Fast Page DRAM, 2MX8, 80ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28	Fast Page DRAM, 2MX8, 50ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28	Fast Page DRAM, 2MX8, 70ns, CMOS, PDSO28, 0.400 INCH, PLASTIC, TSOP2-28
Maker	NEC Electronics	NEC Electronics	NEC Electronics
Parts packaging code	TSOP	TSOP	TSOP
package instruction	TSOP2,	TSOP2,	TSOP2,
Contacts	28	28	28
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	50 ns	70 ns
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
length	18.41 mm	18.41 mm	18.41 mm
memory density	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	8	8	8
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	28	28	28
word count	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm
Base Number Matches	-	1	1
