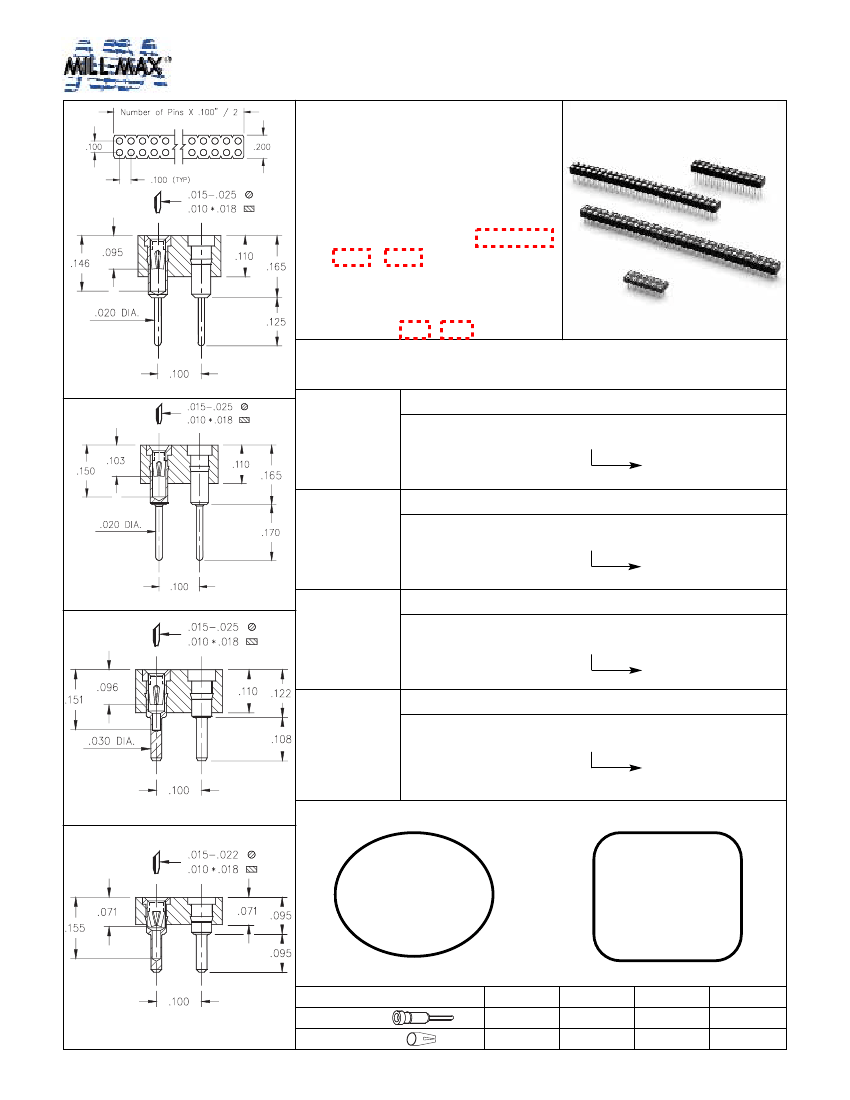

SINGLE-IN-LINE SOCKETS
Solder Tail
Double Row
•
Series 41X double row strip
sockets are on .100” grid.
•
Various solder pins available
(standard, long for multi-layer
boards, very low and ultra low).
Using Mill-Max pin #’s 1001, 0134,
0501 & 0703.
Hi-Rel, 4-finger BeCu #30 & #12
clips are rated at 3 amps.
See pages 207 & 208 for details.
Series 410, 411, 415
•
Ordering Information
Fig. 1
Series 410...001
Standard Solder Tail
Fig. 1
410-XX-2_ _-41-001
Specify # of pins
Series 411...001
02-64
Long Solder Tail
Fig. 2
Fig. 2
411-XX-2_ _-41-001
Specify # of pins
Series 415...001
02-64
Very Low Profile
Fig. 3
415-XX-2_ _-41-001
Specify # of pins
Series 415...003
02-64
Ultra Low Profile
Fig. 4
415-XX-2_ _-41-003000
Specify # of pins
02-72
(Standard Insulator is High Temperature)
Fig. 3
XX= Plating Code
See Below
For High
Temperature
Insulators Add
‘100’
To End Of
Part Numbers
13
10µ” Au
30µ” Au
93
200µ” Sn/Pb
30µ” Au
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Fig. 4
Contact (Clip)
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
51
