IDT71682LA45F datasheet, PDF - EEWORLD Datasheet

IDT71682LA45F: DescriptionStandard SRAM, 4KX4, 45ns, CMOS, CDFP24, FP-24; Categorystorage storage; File Size243KB，11 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

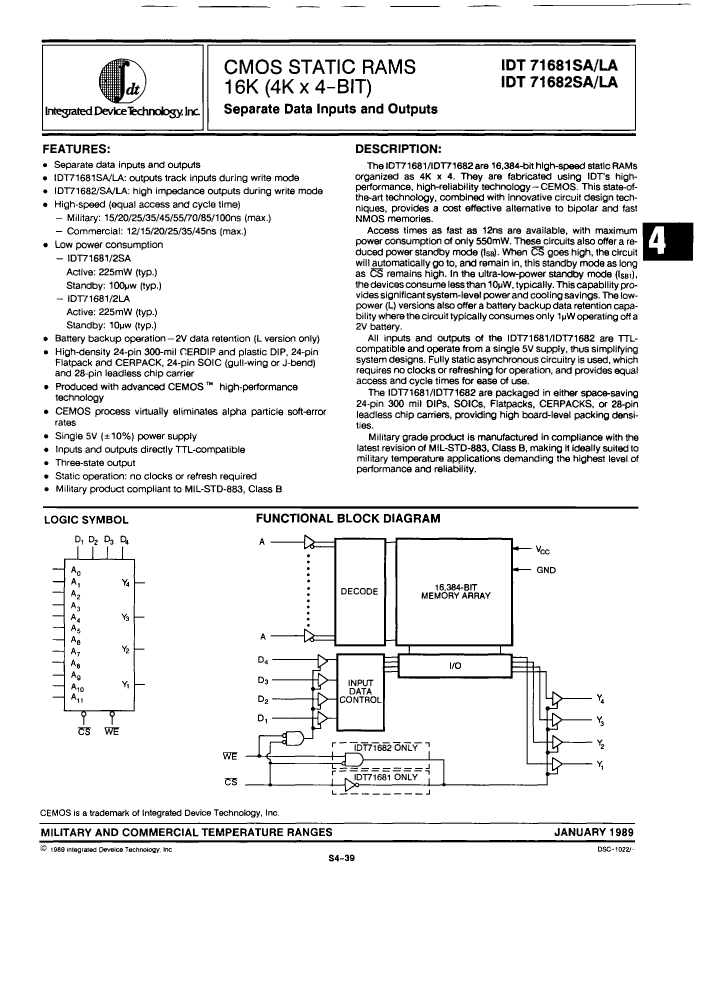

IDT71682LA45F Overview

Standard SRAM, 4KX4, 45ns, CMOS, CDFP24, FP-24

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)

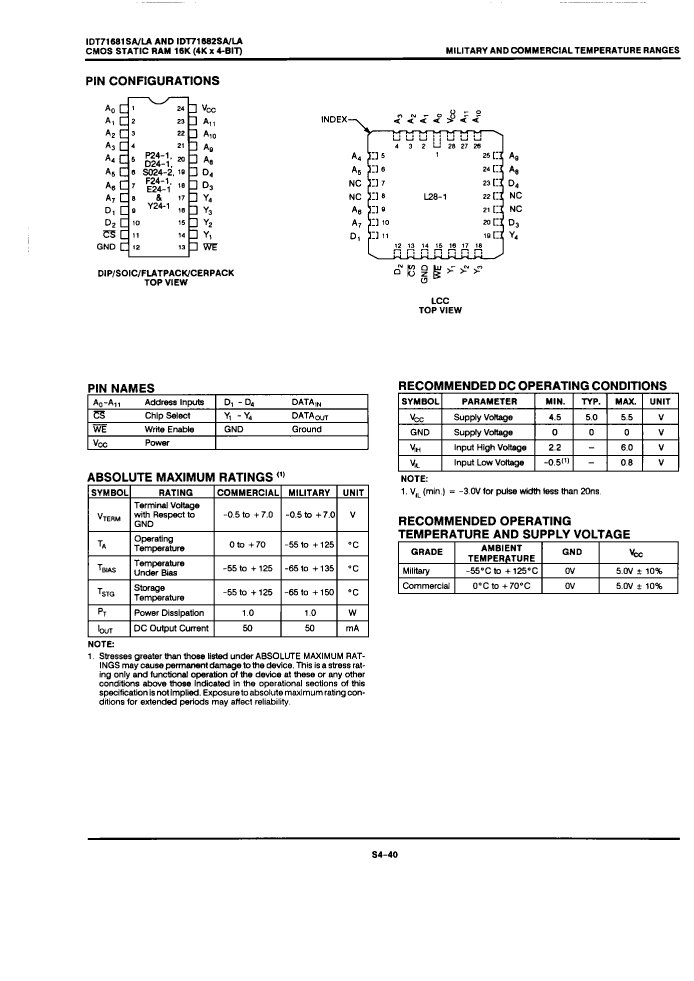

Parts packaging code	DFP
package instruction	FP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99

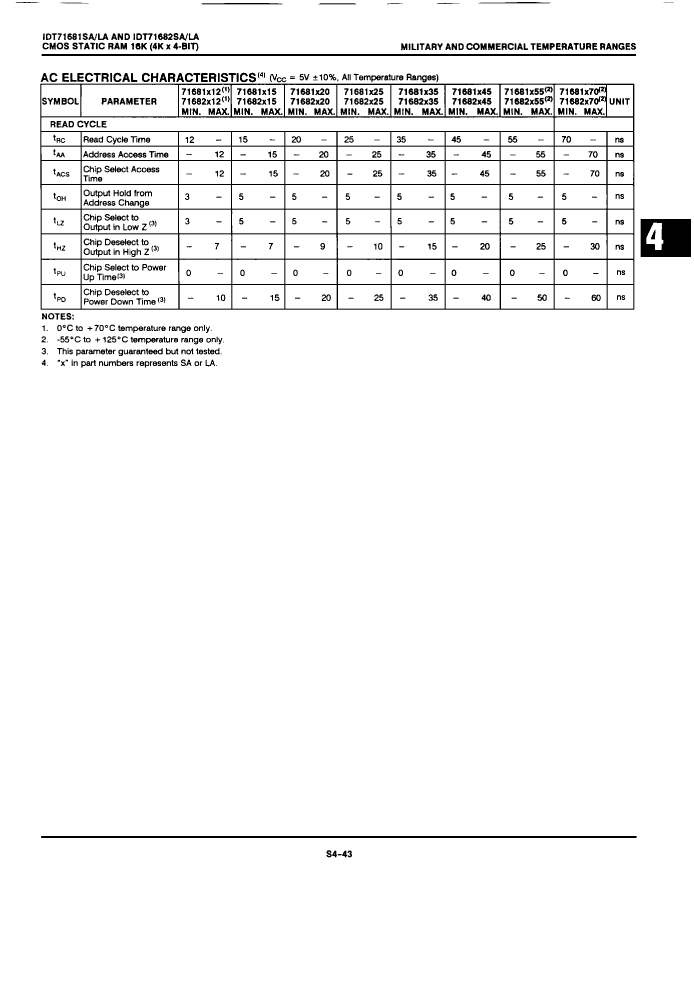

Maximum access time	45 ns
I/O type	SEPARATE
JESD-30 code	R-CDFP-F24
JESD-609 code	e0
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX4
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

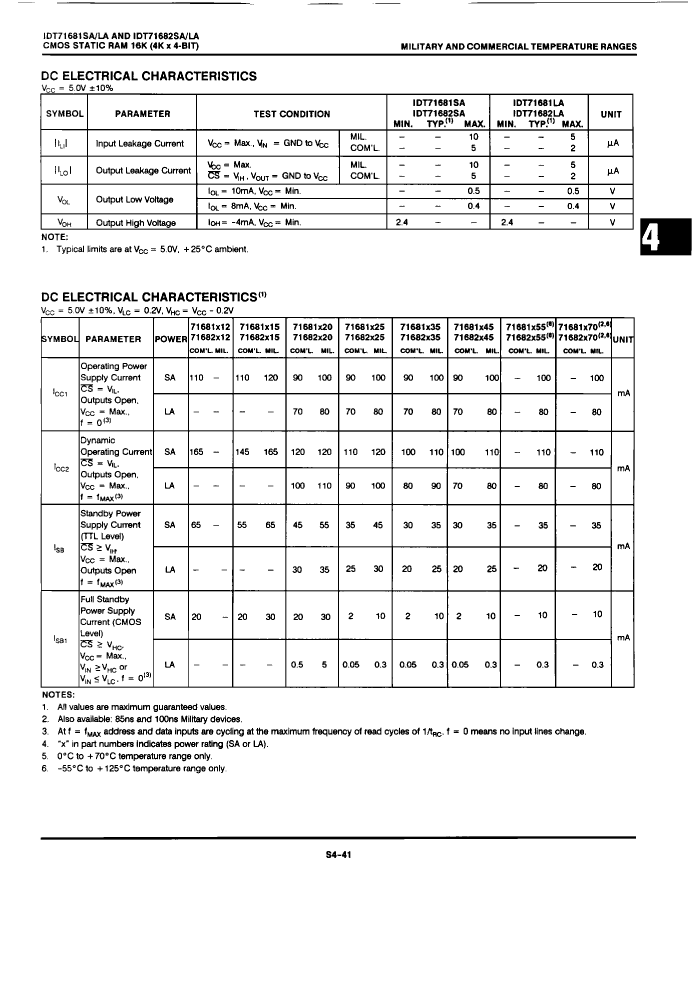

power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.286 mm

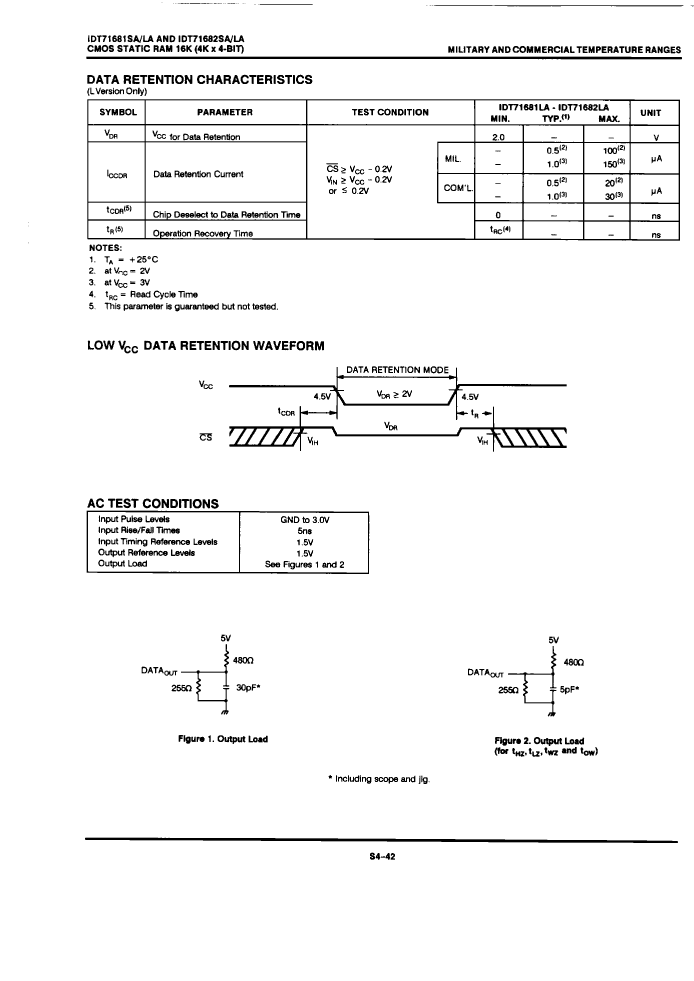

Minimum standby current	2 V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	9.9 mm
