935284953557: DescriptionLVC/LCX/Z SERIES, QUAD 8-BIT TRANSCEIVER, TRUE OUTPUT, PBGA96, 13.50 X 5.50 MM, 1.05 MM HEIGHT, PLASTIC, SOT536-1, LFBGA-96; Categorylogic logic; File Size107KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

935284953557 Overview

LVC/LCX/Z SERIES, QUAD 8-BIT TRANSCEIVER, TRUE OUTPUT, PBGA96, 13.50 X 5.50 MM, 1.05 MM HEIGHT, PLASTIC, SOT536-1, LFBGA-96

935284953557 Parametric

Parameter Name	Attribute value
package instruction	LFBGA,
Reach Compliance Code	unknow
series	LVC/LCX/Z
JESD-30 code	R-PBGA-B96
JESD-609 code	e0
length	13.5 mm
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	4
Number of ports	2
Number of terminals	96
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	LFBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH
propagation delay (tpd)	4.7 ns
Maximum seat height	1.5 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
width	5.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74LVC32245A

32-bit bus transceiver with direction pin; 5 V tolerant; 3-state

Rev. 2 — 8 November 2011

Product data sheet

1. General description

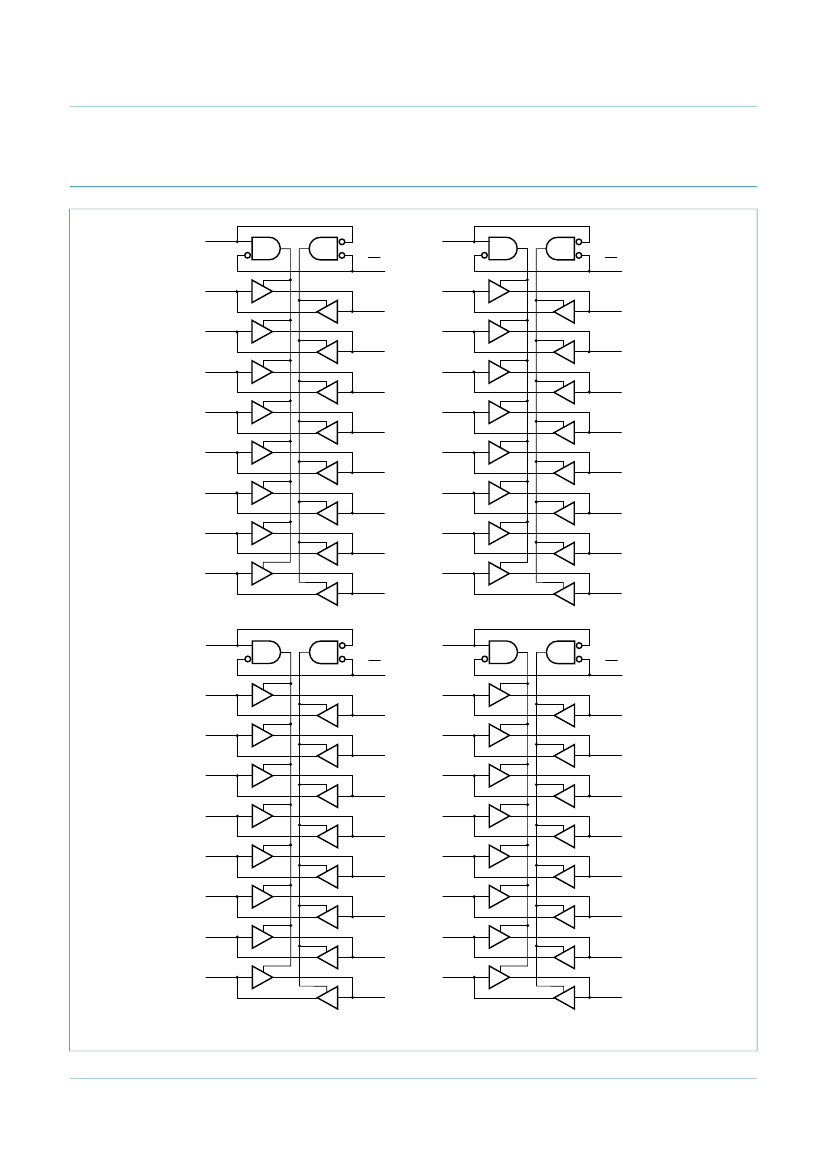

The 74LVC32245A is a 32-bit transceiver featuring non-inverting 3-state bus compatible

outputs in both send and receive directions. The device features four output enable (nOE)

inputs for easy cascading and four send/receive (nDIR) inputs for direction control.

Pin nOE controls the outputs so that the buses are effectively isolated.

Inputs can be driven from either 3.3 V or 5 V devices. When disabled, up to 5.5 V can be

applied to the outputs. These features allow the use of these devices in mixed

3.3 V and 5 V applications.

To ensure the high-impedance state during power-up or power-down, pin nOE should be

tied to V

through a pull-up resistor; the minimum value of the resistor is determined by

the current-sinking capability of the driver.

2. Features and benefits



5 V tolerant inputs/outputs for interfacing with 5 V logic

Wide supply voltage range from 2.3 V to 3.6 V

CMOS low power consumption

MULTIBYTE flow-through standard pin-out architecture

Low inductance multiple power and ground pins for minimum noise and ground

bounce

Direct interface with TTL levels

Inputs accept voltages up to 5.5 V

High-impedance when V

= 0 V

Complies with JEDEC standard:



JESD8-7A (1.65 V to 1.95 V)



JESD8-5A (2.3 V to 2.7 V)



JESD8-C/JESD36 (2.7 V to 3.6 V)

ESD protection:



HBM JESD22-A114F exceeds 2000 V



MM JESD22-A115B exceeds 200 V



CDM JESD22-C101E exceeds 1000 V

Specified from

40 C

to +85

C

and

40 C

to +125

C

Packaged in plastic fine-pitch ball grid array package


