REVISION BQ
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. MINIMUM PUSH OUT FORCE: .5 LB.
3. MAXIMUM BURR ALLOWED: .002[.05].
4. MAXIMUM CUT FLASH ALLOWED IN NON- CRITICAL AREA: .010[.25],
NO CUT FLASH ALLOWED IN CRITICAL AREAS AS SHOWN.
5. MAXIMUM HEIGHT VARIATION .005[.13] BETWEEN ROWS.
6. APPLIES TO FIRST AND LAST PIN OF EACH ROW.
PATENT NUMBERS
5713755 / 5961339
FTSH-1XX-XX-XXX-DH-XX
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-01: .120 [3.05]
-02: .075 [1.91]
-04: .150 [3.81]
OPTIONS
-TR: TAPE AND REEL
-A: ALIGNMENT PIN
(SEE FIG 2, SHEET 2 & FIG 3, SHEET 3)
(MOLDED TO POSITION
OR STAKED)
(SAMTEC DISCRETION WHICH
-A PIN IS USED)
(STAKED 6 POSITION MIN. SEE FIG 3,
SHEET 3, USE FTSH-50-DH)
(MOLDED 5 POSITION MIN. SEE FIG 2,
SHEET 2, USE FTSH-50-DH-AXX)
-C: POLYIMIDE FILM
(USE K-DOT-.197-.344-.005)
(SEE FIG 4, SHEET 3)
TAIL OPTION
-DH: DOUBLE HORIZONTAL
PLATING SPECIFICATION
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10+/-5%) TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
.000±.002 0.00±0.05
(SEE NOTE 6)
(No OF POS x .0500[1.270])
+.005[0.13]
-.010[0.25]
(No OF POS x .0500[1.270] - .0500[1.270])
02
04
DETAIL 'B'
SCALE 20 : 1
SEE NOTE 4
C
.099 2.51 REF
2 MAX SWAY
(EITHER DIRECTION)
C
"A"
T-1S15-17-XXX
SEE NOTE 3
C
.070 1.78 REF
(CONTACT AREA)
.006[0.15]
.032 0.82
.21 5.3
'B'
.0500 1.270
01
03
.135 3.43
REF
FTSH-50-DH
.016 0.41 SQ REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
CRITICAL AREA
(SEE NOTE 4)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
FTSH-1XX-XX-XXX-DH SHOWN

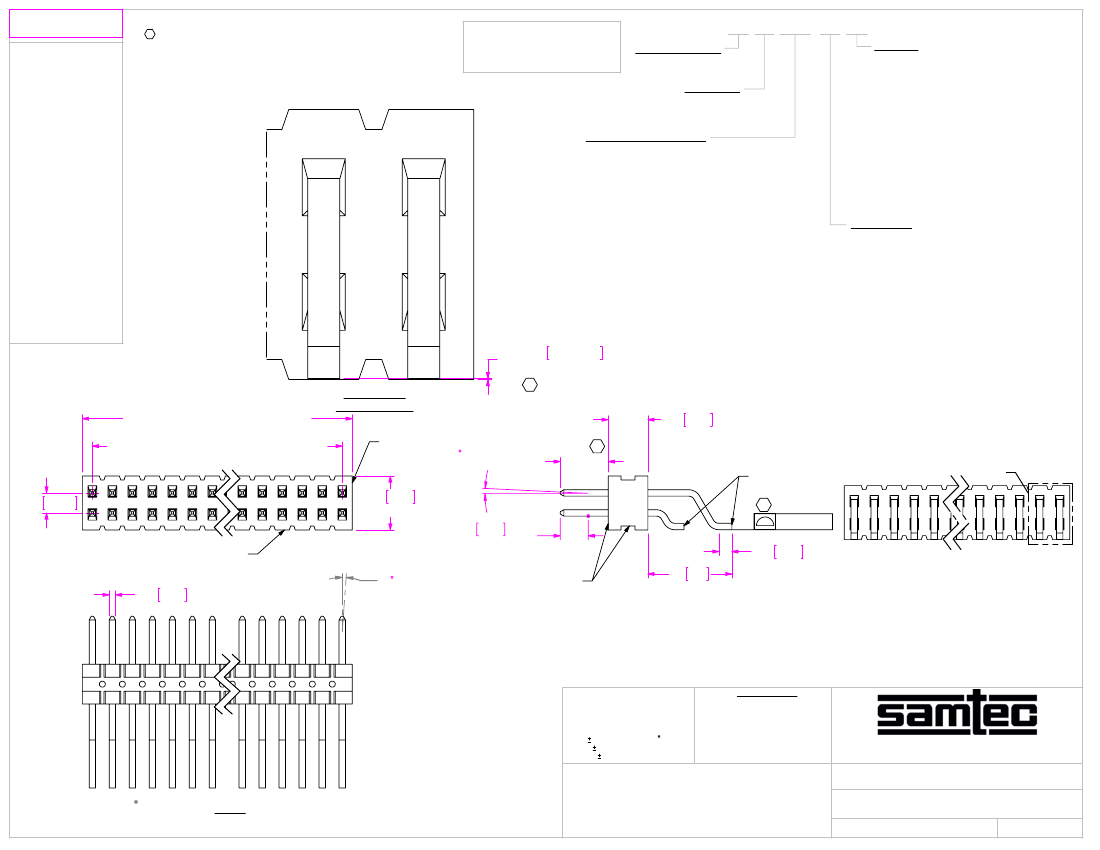

FIG 1
INSULATOR:
LCP, UL 94-V0 COLOR: BLACK
TERMINAL:
PHOSPHOR BRONZE, ALLOY No. 510, GRADE A, FED. SPEC.
QQ-B-750, SPRING TEMPER
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
BY:
BRATCHER 01/04/1995
FTSH-1XX-XX-XXX-DH-XX
SHEET
1
OF
3
REVISION BQ
.099 2.51 REF
"A"
(SEE TABLE 1)
.102 2.59
IN-PROCESS 1
"A"
(SEE TABLE 1)
.099 2.51 REF
'C'
.09 2.3
.022 0.56 REF
.000
+.003
0.010
+0.08
- .001
- 0.03
C
IN-PROCESS 2
FTSH-50-DH-AXX
"A"
(SEE TABLE 1)
.099 2.51 REF
.255 6.48
IN-PROCESS 3
(No OF POS - 2) x .050 [1.27] REF
.040 1.02 REF

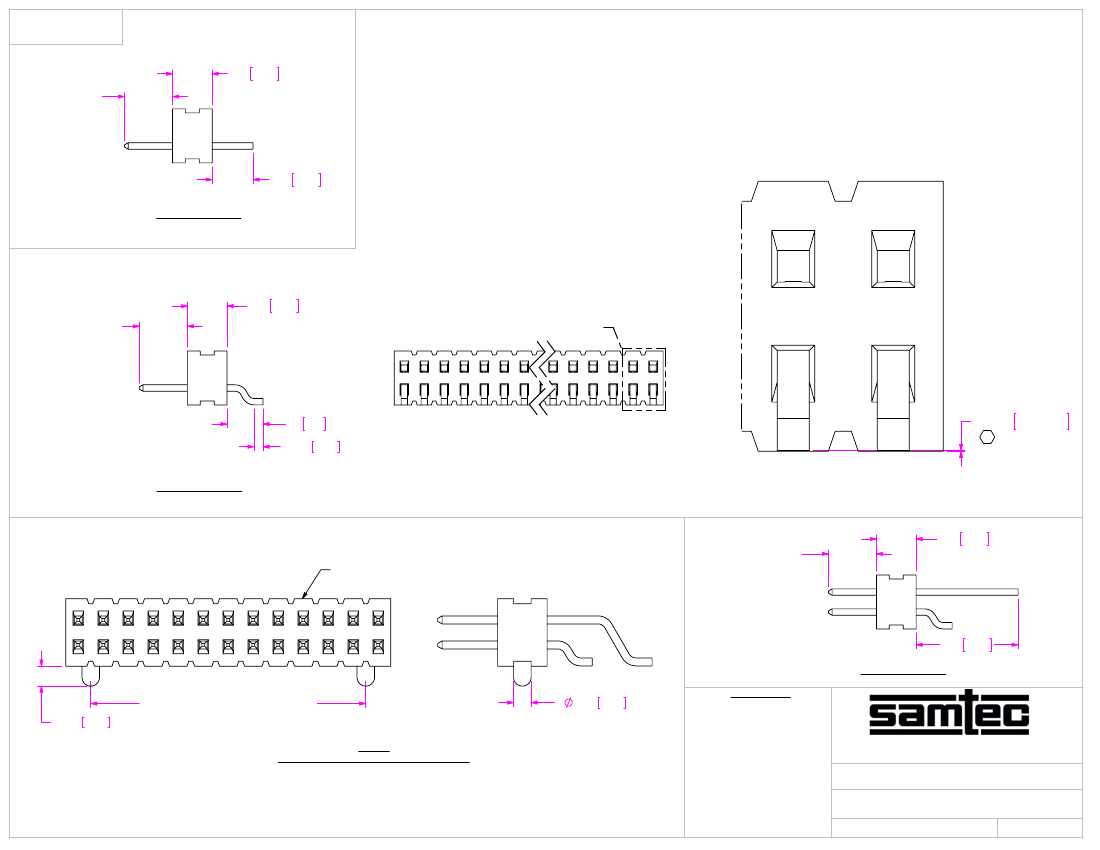

-A: ALIGNMENT PIN (MOLDED) OPTION
DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 1
.035 0.89 REF
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
FIG 2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
BY:
BRATCHER 01/04/1995
FTSH-1XX-XX-XXX-DH-XX
SHEET
2
OF
3
REVISION BQ
C
.040 1.02
C
(No OF POS - 2) x .050 [1.27] REF
SM-A9H

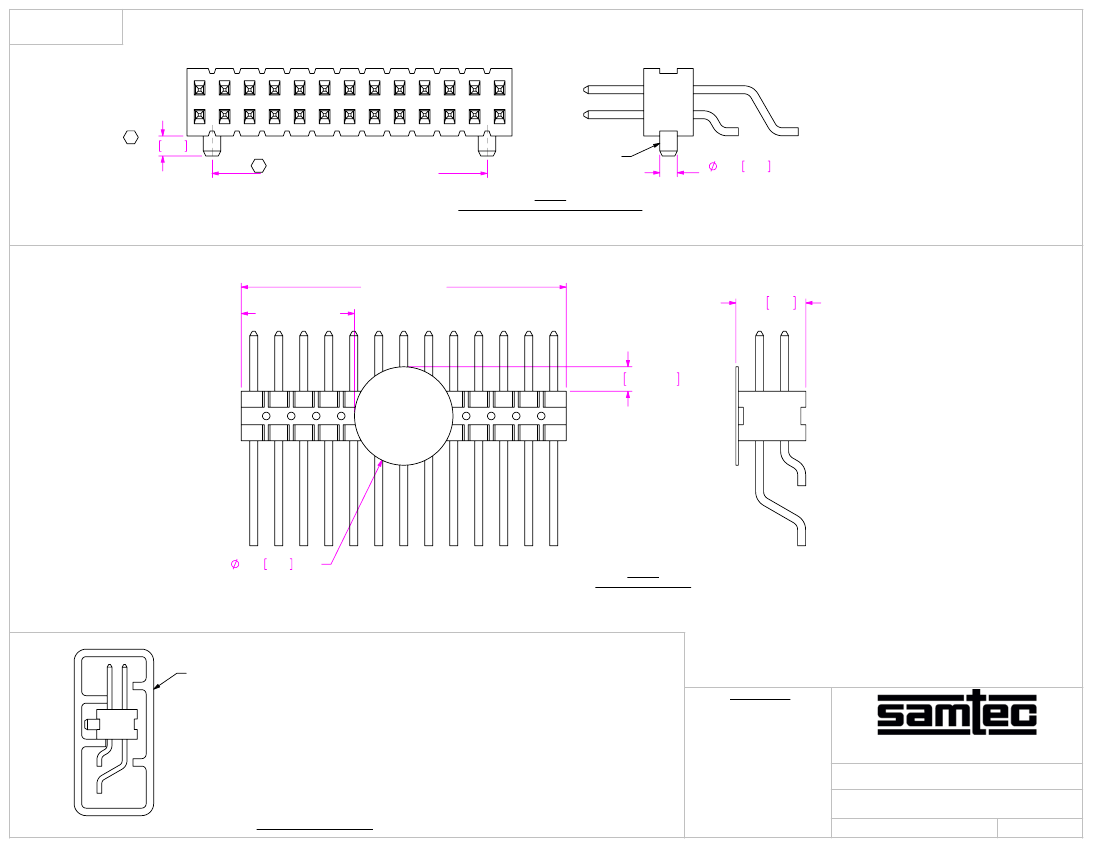

-A: ALIGNMENT PIN (STAKED) OPTION
DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 2
FIG 3
.035 0.89
REF
"R" (SEE NOTE)
"S" (SEE NOTE)
.140 3.56
.049±.020 1.24±0.51
.197 5.00 REF
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = (("R" - .1969 [5.001]) / 2) ±.020 [.51]
-C: POLYIMIDE FILM
FIG 4
PT-FTSH001-DH
PACKAGING NOTES:
1. PACKAGE POSITIONS 10 THROUGH 50 IN TUBES.
2. POSITIONS 02 THROUGH 09 ARE TO BE
LAYER PACKAGED. EXCEPT FOR -C OPTION,
TUBE POSITIONS 05 THROUGH 50.
3. ALL PART POSITIONS 05 THROUGH 50 USE
PT-FTSH001-DH.
4. USE TP-24 PLUG.
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
PACKAGING VIEW
FTSH-1XX-XX-XXX-DH-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
BY:
BRATCHER 01/04/1995
