FIBERGLASS OMNIDIRECTIONAL -
A N T E N E X
®

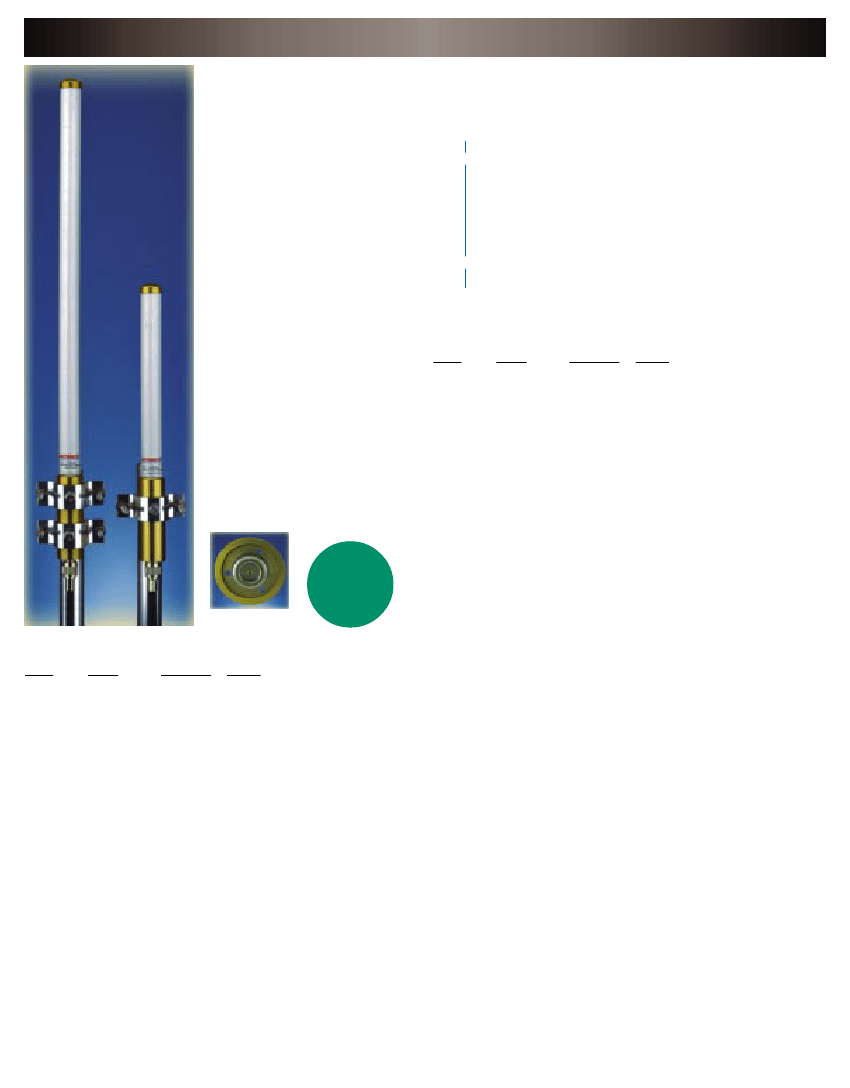

Gold Fiberglass
Base Station antennas are collinear
designs enclosed in a high density
fiberglass , which is covered with
an ultraviolet inhibiting layer of
protective coating.
VHF, UHF, 800 & 900 MHz
Ordering Guide
-
Clear, Easy & Sensible!
FG1523
= Omnidirectional Fiberglass 152-156 MHz, 3 dB.
FG
152
Mount Style
Frequency
FG
= Fiberglass - Gold Sleeve
Frequency component of part number in bold below:
136-140
140-144
144-148
148-152
152-156
156-162
162-168
168-174
220-225
360-380
380-390
406-416
410-420
420-430
430-440
440-450
450-460
460-470
470-480
480-490
490-500
500-512
806-866
824-896
851-896
869-902
896-940
902-928
928-970
936-970
1240-1300
0
= Unity
6
= 6 dB
3
= 3 dB
7
= 7 dB
5
= 5 dB
The radiating elements are made
from high efficiency copper and are
carefully phased to provide
maximum gain in the horizontal
plane. The mounting sleeves are
tuned to eliminate RF currents from
the transmission line resulting in a
“cold” sleeve allowing great
freedom in mounting. This high
quality and well-focused beam
provides the highest gain and best
efficiency.
Every FG fiberglass base antenna
is tested on a HP
®
network analyzer
before shipping to assure the best
VSWR performance.
See the
ANTENEX
®
Freedom
™
Series of mounts for a variety of
mounting options on page 18.
3
BLANK
Gain
Special
W
= 20 MHz Wide Bandwidth. Only on selected models.
Model
FG3603
FG3803
FG4063
FG4103
FG4203
FG4303
FG4403
FG4503
FG4603
FG4703
FG4803
FG4903
FG5003
Frequency
Range
360-380 MHz
380-390 MHz
406-416 MHz
410-420 MHz
420-430 MHz
430-440 MHz
440-450 MHz
450-460 MHz
460-470 MHz
470-480 MHz
480-490 MHz
490-500 MHz
500-512 MHz
Tuned
Frequency
370 MHz
385 MHz
411 MHz
415 MHz
425 MHz
435 MHz
445 MHz
455 MHz
465 MHz
475 MHz
485 MHz
495 MHz
506 MHz
Length
44”
44”
44”
44”
44”
44”
44”
44”
44”
44”
44”
44”
44”
UHF 3 dB GAIN MODELS
Special
Tuning
Available
for $20.00
UHF 5 dB GAIN MODELS
FG4065
FG4105
FG4205
FG4305
FG4405
FG4505
FG4505W
FG4605
FG4705
FG4805
FG4905
FG5005
406-416 MHz
410-420 MHz
420-430 MHz
430-440 MHz
440-450 MHz
450-460 MHz
450-470 MHz
460-470 MHz
470-480 MHz
480-490 MHz
490-500 MHz
500-512 MHz
411 MHz
415 MHz
425 MHz
435 MHz
445 MHz
455 MHz
460 MHz
465 MHz
475 MHz
485 MHz
495 MHz
506 MHz
76”
76”
76”
76”
76”
76”
76”
76”
76”
76”
76”
76”
FG8066 & FG8063
w/FM2 Mounting Option
Model
Frequency
Range
Tuned
Frequency
Base
Connector
Length
VHF UNITY GAIN MODELS
FG1360
FG1400
FG1440
FG1480
FG1520
FG1560
FG1620
FG1680
FG2200
136-140 MHz
140-144 MHz
144-148 MHz
148-152 MHz
152-156 MHz
156-162 MHz
162-168 MHz
168-174 MHz
220-225 MHz
138 MHz
142 MHz
146 MHz
150 MHz
154 MHz
159 MHz
165 MHz
171 MHz
222.5 MHz
68”
68”
68”
68”
68”
68”
68”
68”
68”
UHF 7 dB GAIN MODELS
FG4407
FG4507
FG4607
FG4707
FG4807
FG4907
FG5007
440-450 MHz
450-460 MHz
460-470 MHz
470-480 MHz
480-490 MHz
490-500 MHz
500-512 MHz
445 MHz
455 MHz
465 MHz
475 MHz
485 MHz
495 MHz
506 MHz
107”
107”
107”
107”
107”
107”
107”
VHF 3 dB GAIN MODELS
FG1403
FG1443
FG1483
FG1523
FG1563
FG1623
FG1683
FG2203
140-144 MHz
144-148 MHz
148-152 MHz
152-156 MHz
156-162 MHz
162-168 MHz
168-174 MHz
220-225 MHz
142 MHz
146 MHz
150 MHz
154 MHz
159 MHz
165 MHz
171 MHz
222.5 MHz
107”
107”
107”
107”
107”
107”
107”
107”
800/900 MHz UNITY GAIN MODELS
FG8060
FG8240
FG8510
FG8690
FG8960
FG9020
FG9280
FG9360
806-866 MHz
824-896 MHz
851-896 MHz
869-902 MHz
896-940 MHz
902-928 MHz
928-970 MHz
936-970 MHz
813.5 MHz
835 MHz
858 MHz
882 MHz
898 MHz
915 MHz
930 MHz
953 MHz
15”
15”
15”
15”
15”
15”
15”
15”
UHF UNITY GAIN MODELS
FG3600
FG3800
FG4060
FG4100
FG4300
FG4500
FG4700
FG4900
360-380 MHz
380-406 MHz
406-416 MHz
410-430 MHz
430-450 MHz
450-470 MHz
470-490 MHz
490-512 MHz
370 MHz
393 MHz
411 MHz
420 MHz
440 MHz
460 MHz
480 MHz
501 MHz
26”
26”
26”
26”
26”
26”
26”
26”
800/900 MHz 3 dB GAIN MODELS
FG8063
FG8243
FG8513
FG8693
FG8963
FG9023
FG9283
FG9363
806-866 MHz
824-896 MHz
851-896 MHz
869-902 MHz
896-940 MHz
902-928 MHz
928-970 MHz
936-970 MHz
813.5 MHz
835 MHz
858 MHz
882 MHz
898 MHz
915 MHz
930 MHz
947 MHz
25”
25”
25”
25”
25”
25”
25”
25”
6
Model
Frequency
Range
Tuned
Frequency
ANTENEX
TM
®
INC.
Length
CENTER: 154.000 MHz
SPAN:
SPAN:
10.000 MHz
2.0
VSWR
2.0
800/900 MHz 6 dB GAIN MODELS
FG8066
FG8246
FG8516
FG8696
FG8966
FG9026
FG9286
FG9366
806-866 MHz
824-896 MHz
851-896 MHz
869-902 MHz
896-940 MHz
902-928 MHz
928-970 MHz
936-970 MHz
813.5 MHz
835 MHz
858 MHz
882 MHz
898 MHz
915 MHz
930 MHz
947 MHz
65”
65”
65”
65”
65”
65”
65”
65”
CH1 RFL SWR
250 m / REF 1.5
CENTER: 154.000 MHz
SPAN:
SP
5.000 MHz
CH1 RFL SWR
250 m / REF 1.5
FG1520
1.5
1.5
FG1523
2
1
3
Cor
2
1
3
Cor
1.0
1.0
2: 1.4655
152.000 MHz
1: 1.0895
154.000 MHz
3: 1.4655
156.000 MHz
2: 1.4655
153.263 MHz
1: 1.0895
154.000 MHz
3: 1.4655
156.263 MHz
1.2 GHz GHz UNITY MODELS
FG12400 1240-1300 MHz
1270 MHz
25”
2.0
CENTER: 455.000 MHz
SPAN:
SP
25.000 MHz
CH1 RFL SWR
250 m / REF 1.5
CENTER: 455.000 MHz
SPAN:
SP
25.000 MHz
2.0
CH1 RFL SWR
250 m / REF 1.5
FG4505
2
1
3
FG4507
2
1
3
1.2 GHz GHz 3 dB MODELS
FG12403 1240-1300 MHz
1270 MHz
25”
1.5
1.5
Cor
Cor
1.2 GHz GHz 6 dB MODELS
FG12406 1240-1300 MHz
Model
MBC
Description
1270 MHz
65”
1.0
1.0
2: 1.5252
448.66 MHz
1: 1.1285
455.00 MHz
3: 1.5384
462.34 MHz
2: 1.4974
450.00 MHz
1: 1.1285
455.00 MHz
3: 1.5114
14
460.00 MHz
MOBILE TO BASE CONVERTER
Mobile-to-base Converter for VHF and
UHF, S0239 Terminated
MBCN Mobile-to-base Converter for VHF and
UHF, N Terminated
MBC800 Mobile-to-base Converter for 800 and
900 MHz, N Terminated
Stainless Steel U-Bit Mount (2)
Fiberglass Mounting Bracket (2)
Heavy Duty Mounting Bracket (2)
Welded Heavy Duty Bracket (2)
Freedom Eave Mount
9 Inch Standoff (2)
4 Inch Wall Mount
CENTER: 813.500 MHz
SPAN:
SPAN:
50.000 MHz
2.0
CH1 RFL SWR
250 m / REF 1.5
2.0
CENTER: 1 280.000 MHz
SPAN:
SP
40.000 MHz
CH1 RFL SWR
250 m / REF 1.5
FG8066
1.5
FG12406
2
3
1.5
Cor
2
1
3
Cor
1
1.0
1.0
2: 1.4925
793.310 MHz
1: 1.0865
813.500 MHz
3: 1.5044
826.050 MHz
2: 1.4989
1 269.325 MHz
1: 1.2579
1 277.000 MHz
3: 1.4955
1285.000 MHz
FIBERGLASS BASE ANTENNAS MOUNTING OPTIONS
FM1
FM2
FM3
FM3W
FME34
FMS9
FMW4

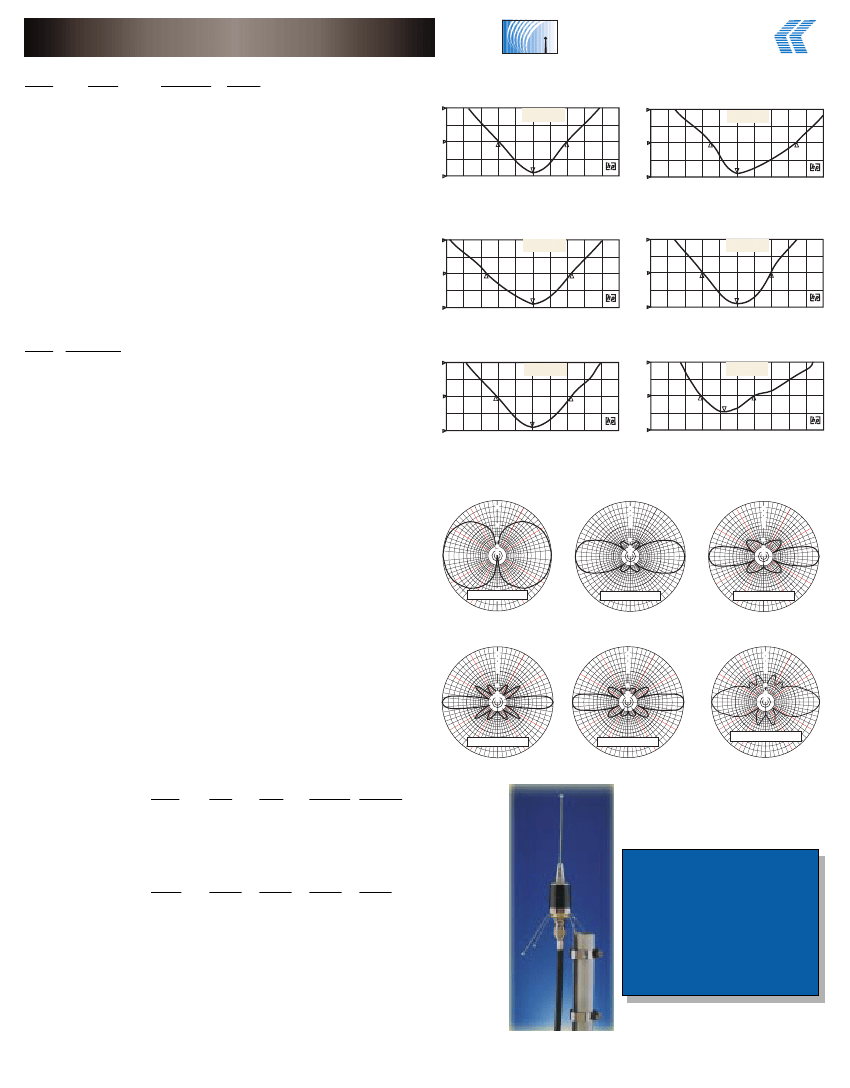

Vertical Field Patterns
0
0
0
330
30
-2
330
30
-2
-4
-6
-8
-10
330
30
-2
-4
-6
-8
-10
300
-10
60
300
60
300
60
-20
-30
-40
-50
-20
-30
-40
-50
-20
-30
-40
-50
270
90
270
90
270
90
Technical Data
-
Product Features & Information
l
VSWR:
l
Maximum Power:
l
Impedance:
l
Mounting Sleeve:
l
Radiator:
l
Mounts to:
l
Antenna Length:
240
-4
-6
Normalized to 0 dB
-8
120
240
120
240
120
VHF — 3 dB - 2:1, All other models — 1.5:1
200 watts - UHF and 800 models
250 watts - VHF models
Normalized to 3 dBd
150
210
180
150
Normalized to 5.0 dBd
210
180
150
210
180
FG1520
0
FG1523
0
FG4505
0
330
30
-2
-4
-6
-8
-10
330
30
-2
-4
-6
-8
-10
330
30
-2
-4
-6
-8
-10
50 ohms, Models with DC continuity
Heavy wall, gold anodized 1 1/4” aluminum.
Precision copper clad elements sealed in white
ultraviolet-inhibiting fiberglass radome.
See optional mounting kits listed above.
Gain
Unity
3 dBd
5 dBd
6 dBd
7 dBd
Unity
75
VHF
68”
107”
N/A
N/A
N/A
3 dBd
33
UHF
26”
44”
76”
N/A
107”
5 dBd
20
800/900
15”
25”
N/A
65”
N/A
6 dBd
17
1.2 GHz
25”
25”
N/A
65”
N/A
7 dBd
14
300
60
300
60
300
60
-20
-30
-40
-50
-20
-30
-40
-50
-20
-30
-40
-50
270
90
270
90
270
90
240
120
240
120
240
120
Normalized to 7.0 dBd
210
180
150
210
Normalized to 6.0 dBd
150
180
Normalized to 6.0 dBd
210
180
150
FG4507
FG8066
FG12406
l
Vertical Beam
Width:
l
Antenna Weight:
l
Termination:
l
Wind Survival:
l
Polarization:
VHF 3 dBd & UHF 7 dBd = 8 lbs. All others = 6
lbs. (or less)
Recessed type “N” female connector.
125 M.P.H.
Vertical Polarization
MBC800 —
Mobile to
Base
Converter
For a quick
base
antenna
anywhere,
anytime!
“We use the FG8060 ex-
clusively for our Nextel
control station applica-
tions and have never ex-
perienced a failure.”
John, Coupe Communica-
tions Inc.
MBC800 Show w/
optional B8063
7
