HSW1034-01-300 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> HSW1034-01-300

Preview

HSW1034-01-300: DescriptionSlide Switch, 4PDT, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size44KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

HSW1034-01-300 Overview

Slide Switch, 4PDT, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight

HSW1034-01-300 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
body width	6.5 mm
body height	5 mm
Body length or diameter	16 mm
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@15VDC
Maximum contact voltage (DC)	15 V
Electrical life	10000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
surface mount	NO
Switch action	LATCHED
switch function	4PDT
Switch type	SLIDE SWITCH
Termination type	SOLDER

HSW1034-01-300 Preview

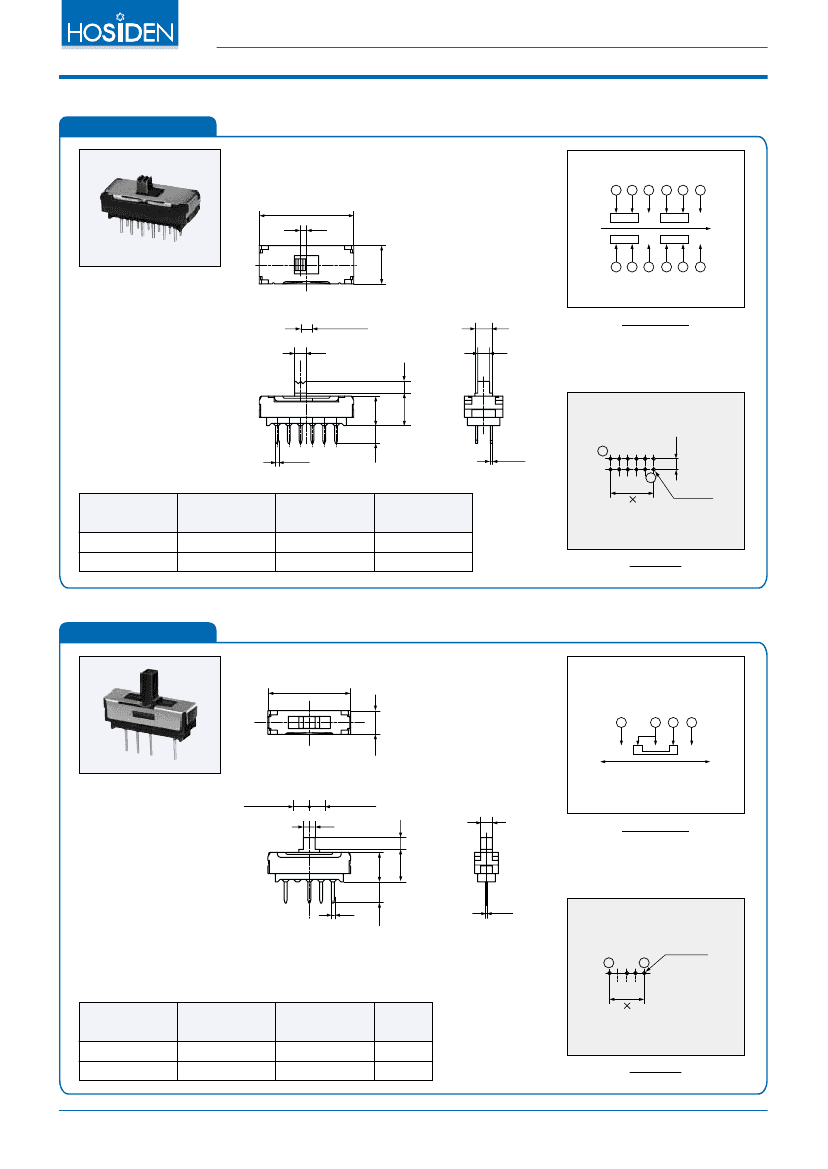

Slide Switches (DIP Vertical Type)

Unit:mm

HSW1034

1

16

1

C

2

3

4

C

5

6

6.5

7

HSW1034

Travel : 2

2

3

2

8

C

9

10 11 12

C

Circuit Diagram

5.5

5

0.5

0.35

3

1

12

10

(2 5)

2.5

12-

φ

0.8

Hole Layout

1

C

2

3

4

Circuit Diagram

4-

φ

0.8

1

8

(2 4)

4

Hole Layout

Model No.

HSW1034-01-300

HSW1034-01-400

Pole-Position

4P-2T

Switching Mode

Non-Shorting

Terminals

Ag Plated

Au Plated

HSW1025

14

HSW1025

Travel : 2

2

Travel : 2

2

L

5.5

5

4.2

3.6

0.5

0.35

L

Model No.

HSW1025-01-400

HSW1025-01-410

Pole-Position

1P-3T

Switching Mode

Not Specified

(mm)

2

4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HSW1034-01-300 Related Products

	HSW1034-01-300	HSW1025-01-400	HSW1034-01-400	HSW1025-01-410
Description	Slide Switch, 4PDT, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight	Slide Switch, SP3T, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight	Slide Switch, 4PDT, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight	Slide Switch, SP3T, Latched, 0.5A, 15VDC, Solder Terminal, Through Hole-straight
Maker	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	6.5 mm	4.2 mm	6.5 mm	4.2 mm
body height	5 mm	5 mm	5 mm	5 mm
Body length or diameter	16 mm	14 mm	16 mm	14 mm
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@15VDC	.5A@15VDC	.5A@15VDC	.5A@15VDC
Maximum contact voltage (DC)	15 V	15 V	15 V	15 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	4PDT	SP3T	4PDT	SP3T
Switch type	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
