PT07SP-18-11S(003) datasheet, PDF

Datasheet> All Categories > The connector> The connector> PT07SP-18-11S(003)

PT07SP-18-11S(003): DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT07SP-18-11S(003) Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

PT07SP-18-11S(003) Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 10-257982-16F, POLARIZATION AVAILABLE
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	PT07SP
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	11

Preview

Download Datasheet

View All

PT07 SE (MS3124)

SP07 SE

jam nut receptacle

TERMINATION ASSEMBLIES

“SE”, MS / “E” Open Wire Seal

“SE” (SR), MS / “F” Strain Relief

“SP”, MS / “P” Potting Boot

PT07SE-XX-XXX

SP07SE-XX-XXX

MS3124E-XX-XXX

PT07SE-XX-XXX (SR)

SP07SE-XX-XXX (SR)

MS3124F-XX-XXX

PT07SP-XX-XXX

SP07SP-XX-XXX

MS3124P-XX-XXX

To complete part number see how to order on page 32.

All lockwire holes are .044 Dia. Min.

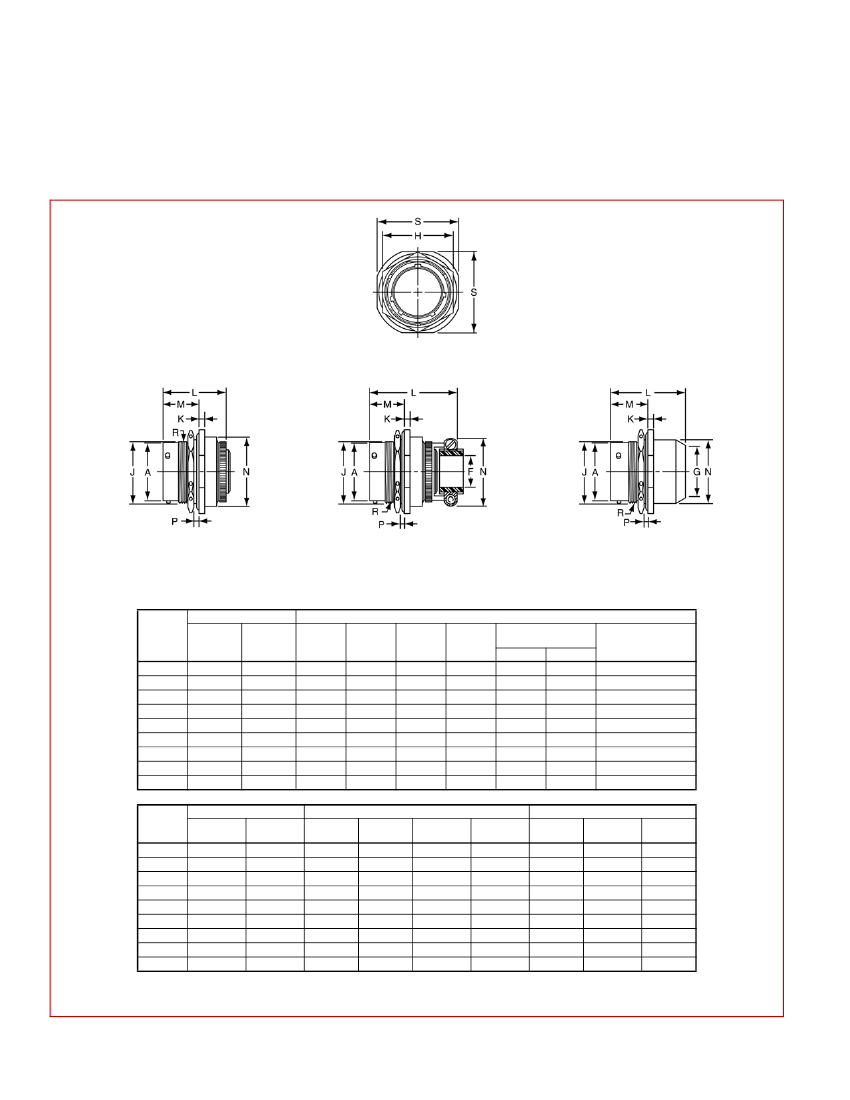

Receptacle Front View

Shell

Size

H Hex

Max.

A Dia.

+.001

–.005

J Flat

+.000

–.010

+.011

–.010

Receptacle Side View

Panel Thickness

±.005

Min.

Max.

Thread

Class 2A

.767

.892

1.079

1.205

1.329

1.455

1.579

1.705

1.829

.954

1.078

1.266

1.391

1.516

1.641

1.828

1.954

2.078

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

.530

.655

.818

.942

1.066

1.191

1.316

1.441

1.566

.125

.156

.696

.884

.917

.062

.125

.250

.5625-24 UNEF

.6875-24 NEF

.8750-20 UNEF

1.0000-20 UNEF

1.1250-18 NEF

1.2500-18 NEF

1.3750-18 NEF

1.5000-18 NEF

1.6250-18 NEF

Shell

Size

Class “SE”, MS / “E”

Max.

Min.

Class “SE” (SR), MS / “F”

G Dia.

Free

Max.

Dia.

Class “SP”, MS /”P”

N Dia.

Max.

1.438

1.625

1.688

.749

.874

.999

1.124

1.249

1.374

1.530

1.655

1.780

.234

.297

.422

.547

.609

.734

.922

.984

.125

.188

.312

.375

.500

.625

.750

.800

1.922

2.000

2.172

2.234

.828

.891

1.016

1.141

1.203

1.469

1.656

1.750

–

.444

.558

.683

.808

.909

1.034

1.159

1.284

–

1.656

1.922

1.951

–

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.
