2.0 x 6.5 mm, 5.0 A, Horizontal, Through Hole, Dc Power Jack Connector
PJ-002AH Parametric
Parameter Name
Attribute value
Is it Rohs certified?
conform to
Maker
CUI Devices
Reach Compliance Code
compliant
Samacsys Description
DC Power Connectors Power Jacks
body width
0.354 inch
subject depth
0.567 inch
body length
0.433 inch
Body/casing type
JACK
Connector type
CIRCULAR DC POWER CONENCTOR
Contact to complete cooperation
SILVER
Contact completed and terminated
Silver (Ag)
Contact material
BRASS
JESD-609 code
e4
Installation type
BOARD
Maximum operating temperature
85 °C
Minimum operating temperature
-25 °C
Options
GENERAL PURPOSE
Pin diameter
2 mm
Rated current (power)
5 A
Rated voltage
24 V
Guideline
UL
Termination type
SOLDER
PJ-002AH Preview
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
date
page
10/30/2019
1 of 3
MODEL:
PJ-002AH
│
DESCRIPTION:
DC POWER JACK
FEATURES
• 2.0 mm center pin
• 5.0 A rating
• right-angle orientation
• through hole
SPECIFICATIONS
parameter
rated input voltage
rated input current
contact resistance
1
insulation resistance
voltage withstand
insertion/withdrawal force
terminal strength
operating temperature
life
flammability rating
RoHS
Note:
conditions/description
min
typ
24
max
5.0
units
Vdc
A
mΩ
mΩ
MΩ
Vac
kg
g
°C
cycles
between terminal and mating plug
between terminal in a closed circuit
at 500 Vdc
at 50/60Hz for 1 minute
0.3
any direction for 10 seconds
-25
5,000
UL94V-0
yes
100
50
30
500
3
500
85
1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
MODEL:
PJ-002AH
│
DESCRIPTION:
DC POWER JACK
date
10/30/2019│
page
2 of 3

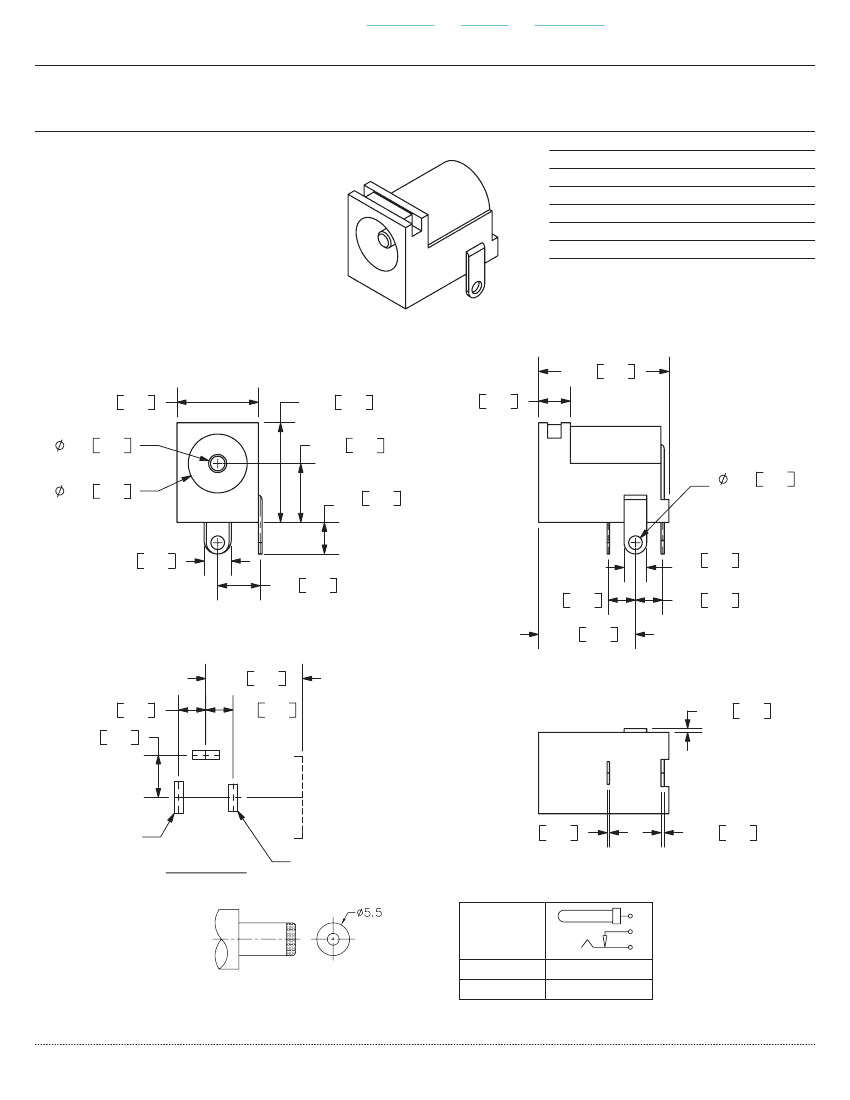

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel
silver
silver
silver
14.4 0.57
9.0 0.35
2.00 0.08
6.50 0.26
11.0 0.43
6.50 0.26
1.50 0.06
(3 PLCS)
3.50 0.14
3.5 0.14
(TYP)
2 3
4.7 0.19
1
3.00 0.12
3.0 0.12
2.5 0.10
(2 PLCS)
3.0 0.12
10.7 0.42
10.7 0.42
3.0 0.12
4.7 0.19
3
1
2
0.25 0.01
PCB LAYOUT
TOP VIEW
1.00X3.00
(2 PLCS)
2
3.0 0.12
3
1
0.40 0.02
1.00X3.50
0.36 0.01
SCHEMATIC
Model
Center Pin
PJ-002AH
Ø2.0 mm
1
3
2
MATING PLUG
Jack Insertion Depth: 9.0 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
MODEL:
PJ-002AH
│
DESCRIPTION:
DC POWER JACK
date
10/30/2019│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
1.04
description
initial release
changed pin thickness layout
applied new spec template
updated datasheet
brand update
date
04/17/2006
08/31/2006
01/08/2015
05/12/2016
10/30/2019
The revision history provided is for informational purposes only and is believed to be accurate.
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
