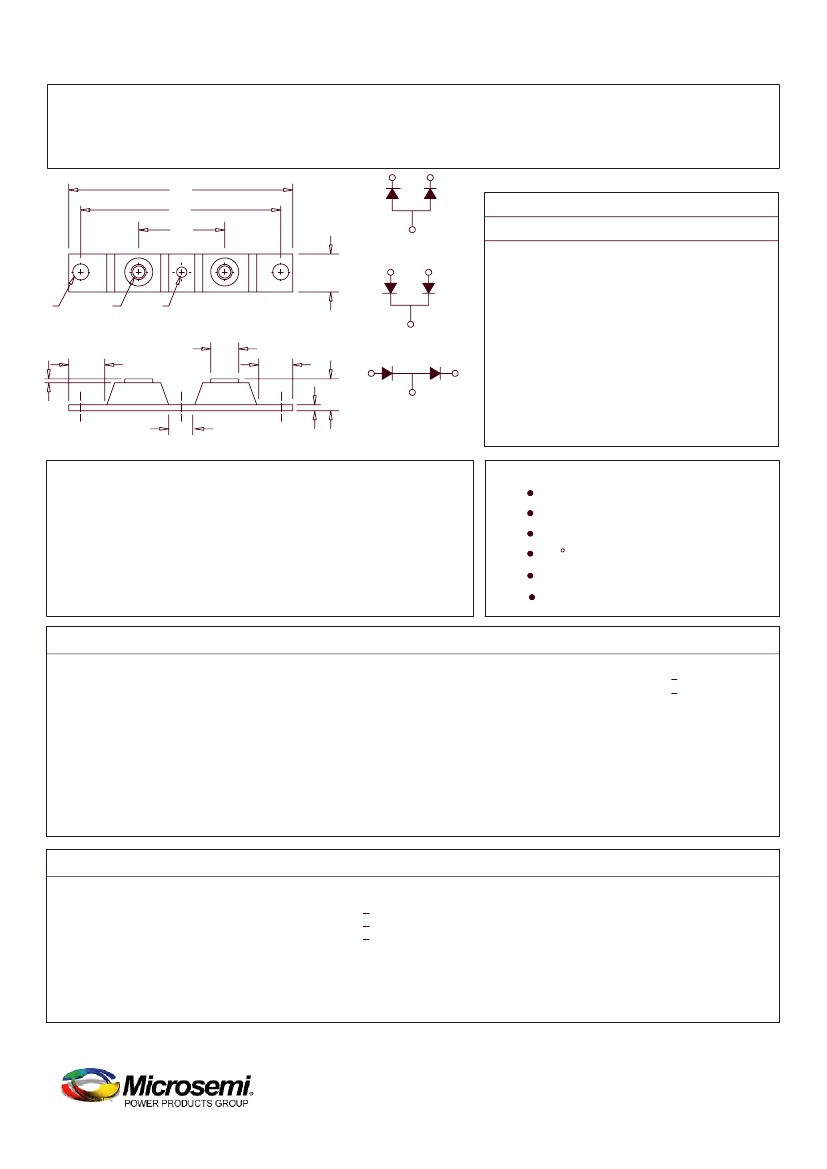

CPT20080-CPT200100
A
R
G
Baseplate
A=Common Anode
B
Q
N
W
Baseplate
Common Cathode
U
C
H
V
E
Notes:
Baseplate: Nickel plated
copper
Baseplate
D=Doubler
Schottky PowerMod
Dim. Inches
Min.
A
B
C
E
F
G
H
N
Q
R
U
V
W
Millimeters
Min.
Max.
Notes
Max.
F
U
---
3.630
0.800
0.700
0.630
---
0.130
0.120
0.510
0.490
1.375 BSC
---
0.010
---
---
0.275
0.290
3.150 BSC
0.600
---
0.312
0.340
0.180
0.195
---
92.20
17.78
20.32
---
16.00
3.30
3.05
12.45
12.95
34.92 BSC
---
0.25
---
---
6.99
7.37
80.01 BSC
15.24
---
7.92
8.64
4.57
4.95
1/4-20
Dia.
Dia.
Microsemi
Catalog Number
CPT20080*
CPT20090*
CPT200100*
Industry
Part Number
203CNQ080
MBR12080CT
MBR20080CT
203CNQ100
MBR120100CT
MBR200100CT
Working Peak Repetitive Peak
Reverse Voltage Reverse Voltage
80V
90V
100V
80V
90V
100V
Schottky Barrier Rectifier
Guard Ring Protection
200 Amperes/ 80 to 100 Volts
175 C Junction Temperature
Reverse Energy Tested
ROHS Compliant
*Add Suffix A for Common Anode, D for Doubler
Electrical Characteristics
I F(AV) 200 Amps
Average forward current per pkg
I F(AV) 100 Amps
Average forward current per leg
I FSM
2000 Amps
Maximum surge current per leg
Maximum repetitive reverse current per leg I R(OV) 2 Amps
VFM
0.98 Volts
Max peak forward voltage per leg
VFM
.86 Volts
Typical forward voltage per leg
I RM
75 mA
Max peak reverse current per leg
I RM
4.0 mA
Max peak reverse current per leg
CJ
3000 pF
Typical junction capacitance per leg
TC = 135°C, Square wave, R 0JC =0.20°C/W
TC = 135°C, Square wave, R0JC =0.40°C/W
8.3ms, half sine,T J = 175°C
f = 1 KHZ, 25°C, 1µsec square wave
I FM = 200A: J = 25°C*
T
I FM = 200A: J = 175°C*
T
VRRM, TJ = 125°C*
VRRM, TJ = 25°C
VR = 5.0V,TC = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Max thermal resistance per leg
Max thermal resistance per pkg
Typical thermal resistance (greased)
Terminal Torque
Mounting Base Torque (outside holes)
Mounting Base Torque (center hole)
center hole must be torqued first
Weight
T STG
TJ
R OJC
R OJC
R OCS
-55°C to 175°C
-55°C to 175°C
0.40°C/W Junction to case
0.20°C/W Junction to case
0.08°C/W Case to sink
35-50 inch pounds
30-40 inch pounds
8-10 inch pounds
2.8 ounces (75 grams) typical
www.microsemi.com
January, 2010 - Rev. 4
CPT20080-CPT200100

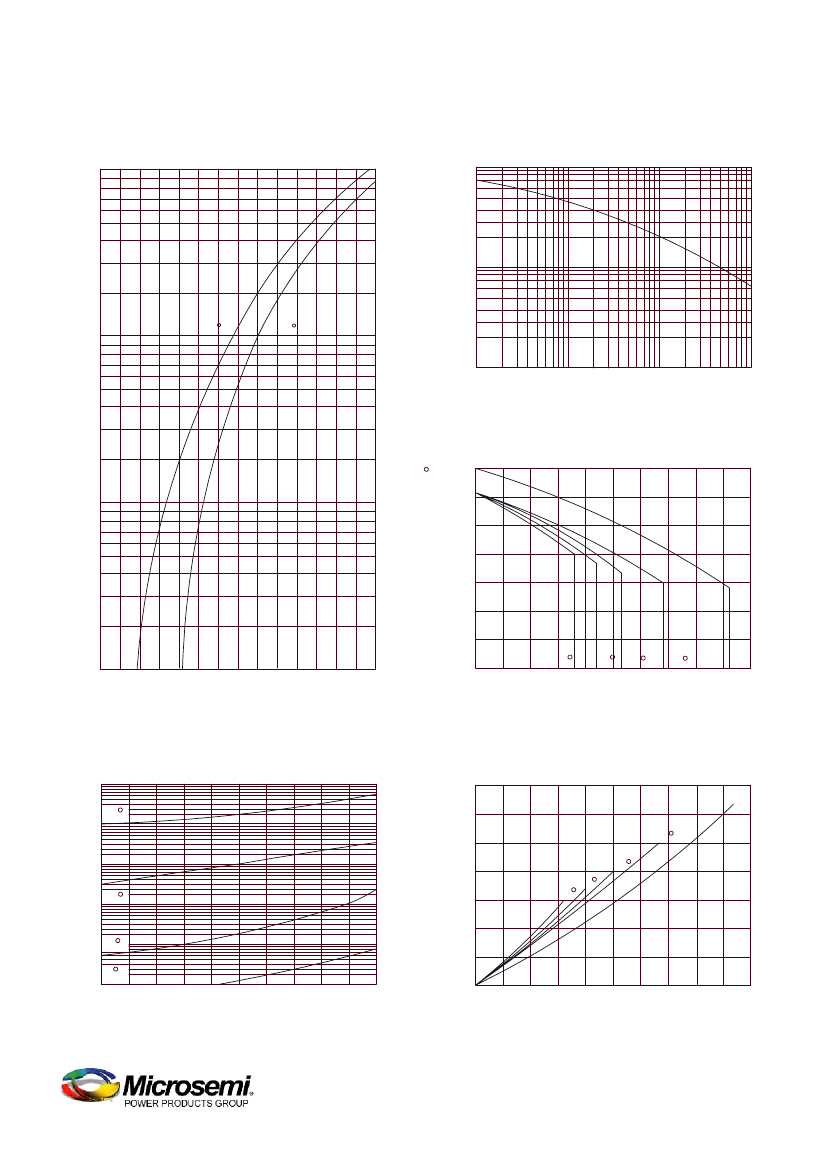

Figure 1
Typical Forward Characteristics - Per Leg
1000
800
600
Junction Capacitance - pF
400
Figure 3
Typical Junction Capacitance - Per Leg
10,000
6000
4000
2000
1000
600
400
200
100
0.1
200
175 C
25 C
100
80
60
40
Instantaneous Forward Current - Amperes
0.5
1.0
5.0
10
50
100
Reverse Voltage - Volts
Figure 4
20
Maximum Allowable Case Temperature - C
Forward Current Derating - Per Leg
175
165
155
145
135
125
115
105
60
0
30
60
90
120
90
180
120
DC
150
10
8.0
6.0
4.0
2.0
1.0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward Voltage - Volts
Average Forward Current - Amperes
Figure 2
Typical Reverse Characteristics - Per Leg
1000
Typical Reverse Current - mA
100
10
1.0
125 C
175 C
Maximum Power Dissipation - Watts
Figure 5
Maximum Forward Power Dissipation - Per Leg
105
90
75
60
45
30
15
0
0
30
60
90
120
150
Average Forward Current - Amperes
60
120
90
180
DC
0.1 75 C
.01
25 C
0
20
40
60
80
100
Reverse Voltage - Volts
www.microsemi.com
January, 2010 - Rev. 6
