25RIA160S90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 25RIA160S90

25RIA160S90: DescriptionSilicon Controlled Rectifier, 40A I(T)RMS, 25000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-208AA, ROHS COMPLIANT, TO-48, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size214KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance; Related ProductsFound1parts with similar functions to 25RIA160S90

Download Datasheet Parametric Compare View All

25RIA160S90 Overview

Silicon Controlled Rectifier, 40A I(T)RMS, 25000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-208AA, ROHS COMPLIANT, TO-48, 2 PIN

25RIA160S90 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-48
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
Configuration	SINGLE
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	130 mA
JEDEC-95 code	TO-208AA
JESD-30 code	O-MUPM-D2
Maximum leakage current	10 mA
On-state non-repetitive peak current	440 A
Number of components	1
Number of terminals	2
Maximum on-state current	25000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	40 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

Bulletin I2402 rev. C 05/06

25RIA SERIES

MEDIUM POWER THYRISTORS

Stud Version

Features

Improved glass passivation for high reliability

and exceptional stability at high temperature

High di/dt and dv/dt capabilities

Standard package

Low thermal resistance

Metric threads version available

Types up to 1600V V

DRM

/ V

RRM

RoHS Compliant

25A

Typical Applications

Medium power switching

Phase control applications

Can be supplied to meet stringent military,

aerospace and other high-reliability requirements

Major Ratings and Characteristics

Parameters

T(AV)

@ T

T(RMS)

TSM

@ 50Hz

@ 60Hz

@ 50Hz

@ 60Hz

DRM

RRM

typical

25RIA

10 to 120

140 to 160

420

440

867

790

100 to 1200

110

- 65 to 125

398

415

795

725

1400 to 1600

Units

°C

μs

°C

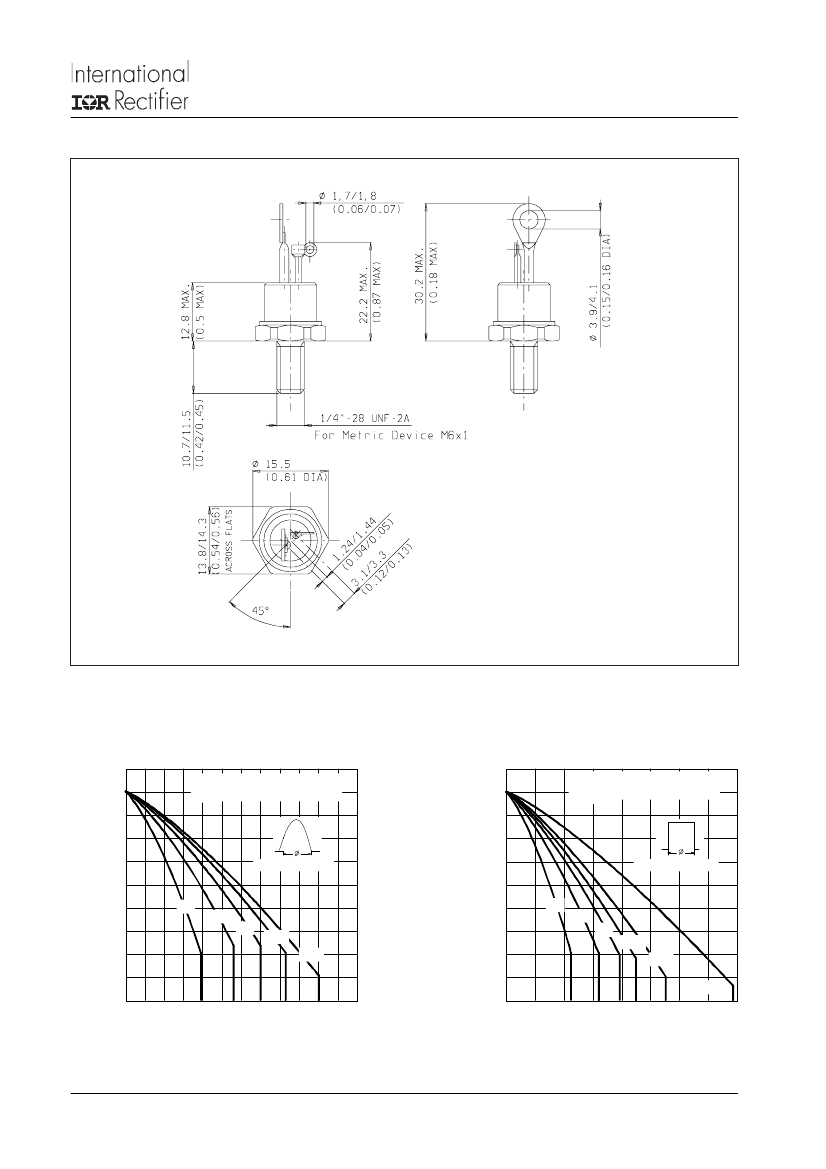

Case Style

TO-208AA (TO-48)

Document Number: 93701

www.vishay.com
