BC488L: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 1-Element, PNP, Silicon, TO-92, PLASTIC, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size98KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

BC488L Overview

Small Signal Bipolar Transistor, 1A I(C), 1-Element, PNP, Silicon, TO-92, PLASTIC, TO-92, 3 PIN

BC488L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CDIL[Continental Device India Pvt. Ltd.]
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
Maximum collector current (IC)	1 A
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.625 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz

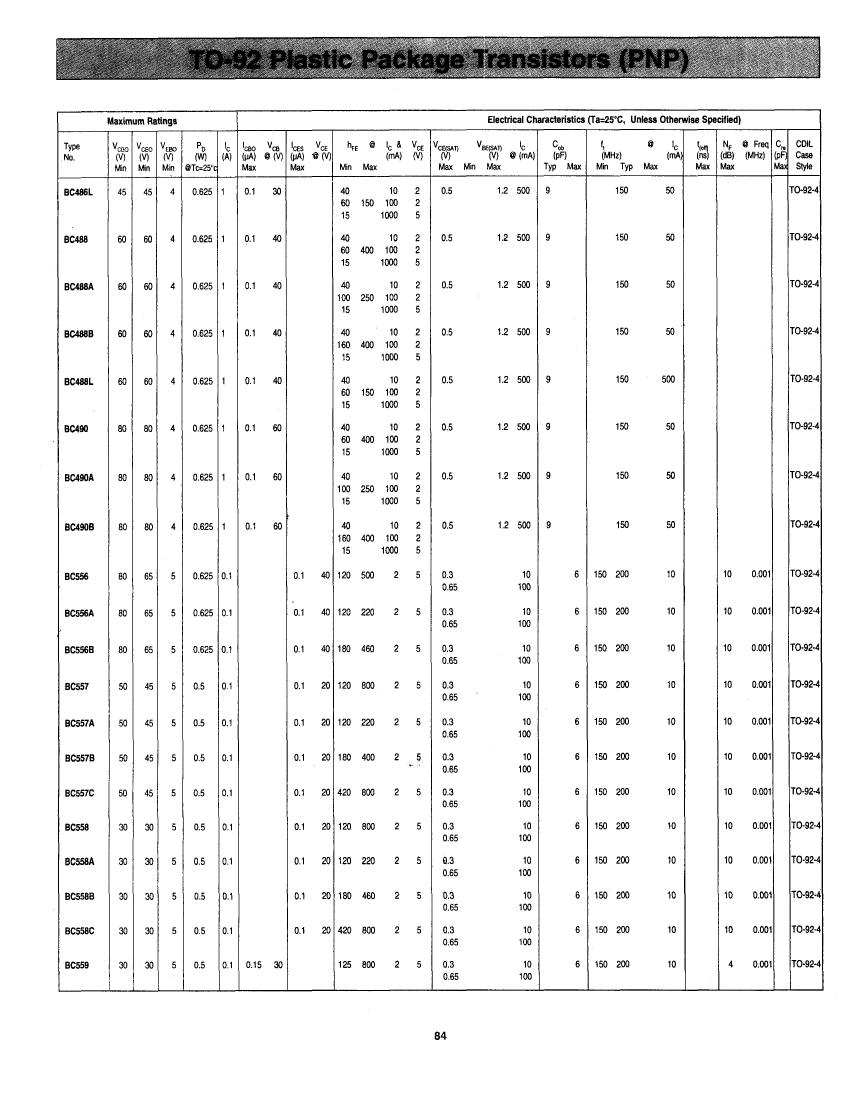

Preview

Download Datasheet

View All

BC488L Related Products

	BC488L	BC556B	RCWP2512220RJMEB	BC558	BC556A	BC490	BC490A	BC490B	BC488	BC488A
Description	Small Signal Bipolar Transistor, 1A I(C), 1-Element, PNP, Silicon, TO-92, PLASTIC, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3	RESISTOR, METAL GLAZE/THICK FILM, 1 W, 5 %, 300 ppm, 220 ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT	Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), PNP	Small Signal Bipolar Transistor, 1A I(C), 1-Element, PNP, Silicon, TO-92, PLASTIC, TO-92, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	incompatible	conform to
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	SMT, 2512	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	,	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	150 °C	150 °C	155 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
surface mount	NO	NO	YES	NO	NO	NO	NO	NO	NO	NO
Maker	CDIL[Continental Device India Pvt. Ltd.]	-	-	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]
Maximum collector current (IC)	1 A	0.1 A	-	0.1 A	0.1 A	1 A	1 A	1 A	1 A	1 A
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	Single	SINGLE
Minimum DC current gain (hFE)	15	200	-	75	110	15	15	15	60	15
JEDEC-95 code	TO-92	TO-92	-	TO-92	TO-92	TO-92	TO-92	TO-92	-	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	-	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	-	O-PBCY-T3
Number of components	1	1	-	1	1	1	1	1	-	1
Number of terminals	3	3	2	3	3	3	3	3	-	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	-	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	SMT	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL
Polarity/channel type	PNP	PNP	-	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.625 W	0.625 W	-	0.625 W	0.625 W	0.625 W	0.625 W	0.625 W	0.625 W	0.625 W
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON
Nominal transition frequency (fT)	150 MHz	100 MHz	-	100 MHz	100 MHz	150 MHz	150 MHz	150 MHz	-	150 MHz
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
Collector-emitter maximum voltage	-	65 V	-	30 V	65 V	80 V	80 V	80 V	-	-
