D15S14A4PV00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15S14A4PV00

D15S14A4PV00: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S14A4PV00 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal

D15S14A4PV00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D15S14A4PV00
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

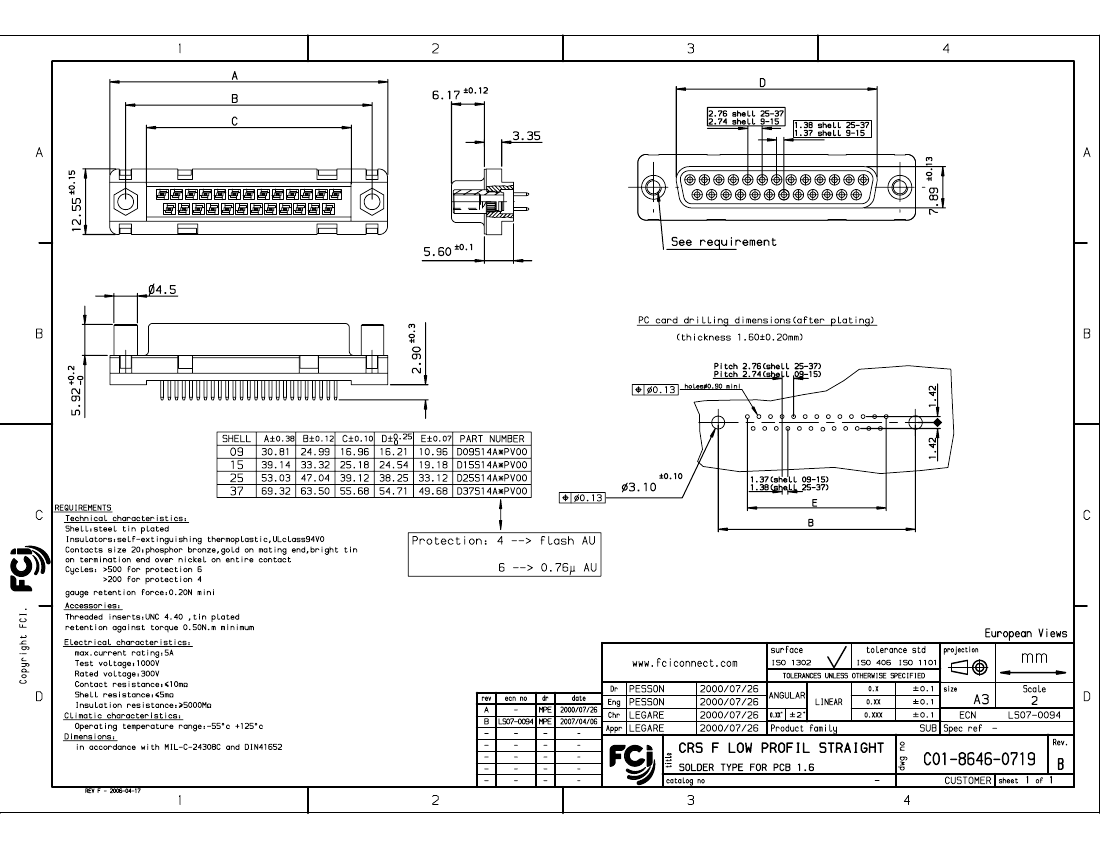

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Apr 25, 2007

D15S14A4PV00 Related Products

	D15S14A4PV00	D25S14A4PV00	D25S14A6PV00	D37S14A4PV00	D37S14A6PV00	D09S14A4PV00	D09S14A6PV00	D15S14A6PV00
Description	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D15S14A4PV00	D25S14A4PV00	D25S14A6PV00	D37S14A4PV00	D37S14A6PV00	D09S14A4PV00	D09S14A6PV00	D15S14A6PV00
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	3/B	3/B	4/C	4/C	1/E	1/E	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	25	37	37	9	9	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
