ABM53CA-FREQ1-12-E datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM53CA-FREQ1-12-E

ABM53CA-FREQ1-12-E: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size151KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM53CA-FREQ1-12-E Overview

Parallel - Fundamental Quartz Crystal, 8MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ABM53CA-FREQ1-12-E Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT CUT CRYSTAL; BULK
Ageing	10 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	12 pF
Manufacturer's serial number	ABM53CA
Installation features	SURFACE MOUNT
Maximum operating frequency	11.999 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L5.0XB3.2XH1.2 (mm)/L0.197XB0.126XH0.047 (inch)
Series resistance	120 Ω
surface mount	YES

Preview

Download Datasheet

View All

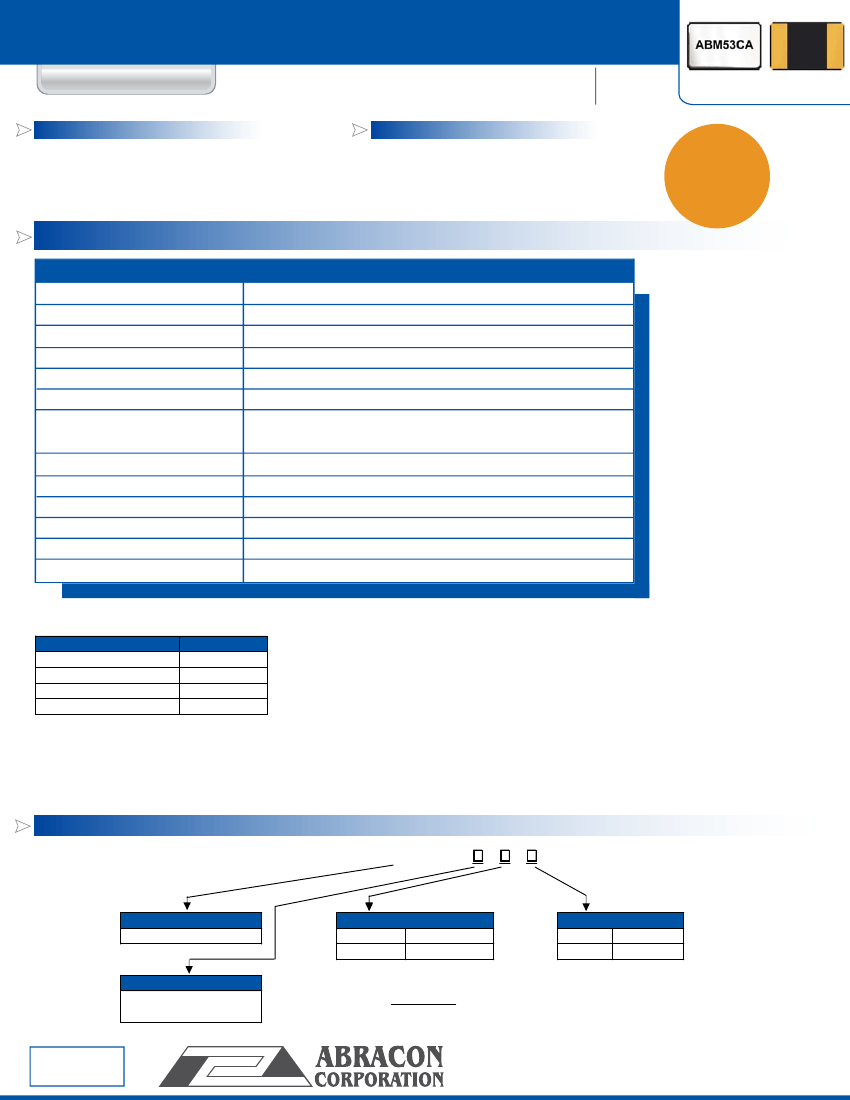

COMMERCIAL GRADE CERAMIC SMD CRYSTAL

ABM53CA

FEATURES:

• Industrial standard package 5.0x3.2, 2 pads

• Ideal for Cost Sensitive Commercial Electronics

• Suitable for High Volume Applications

Pb in glass

(exempt per RoHS 2002/95/EC Annex (5))

RoHS

Compliant

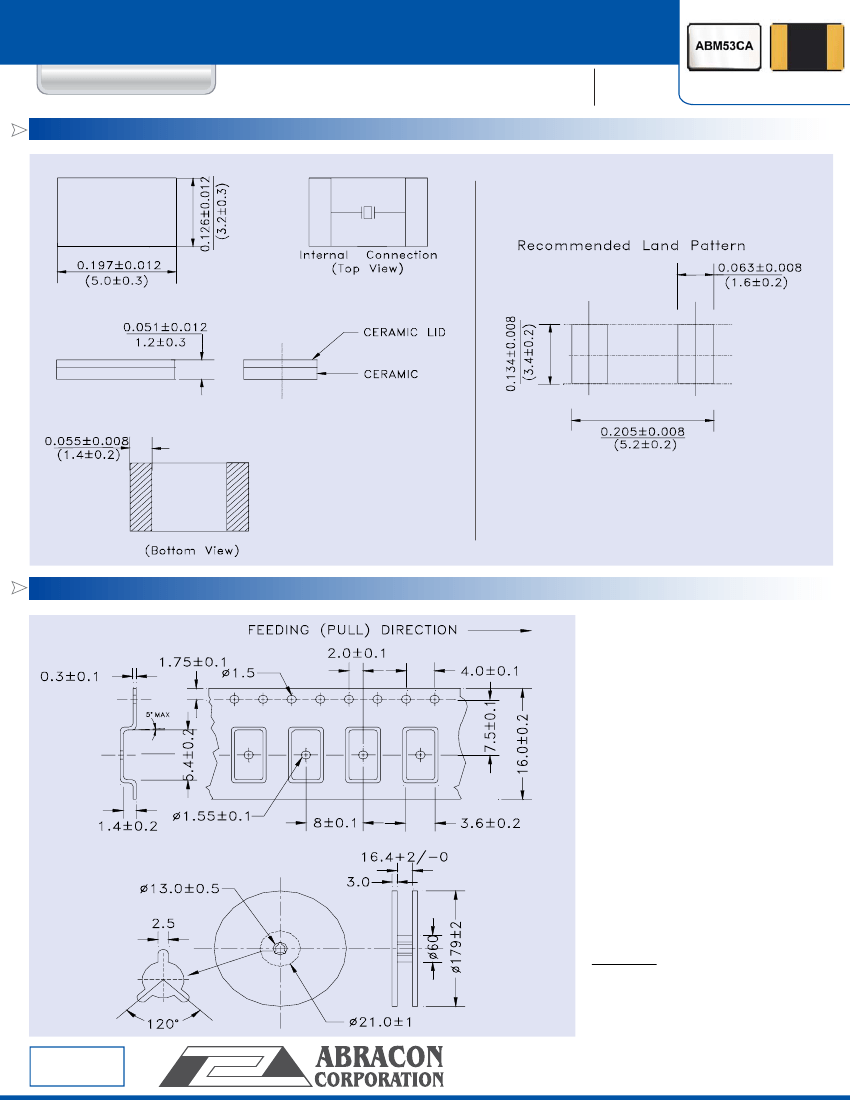

5.0 x 3.2 x 1.2 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Laptop computers

• Computer peripherals

• Home network modem

NEW!

Low Cost

Commercial

Grade SMD

Crystal

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operation Mode:

Operating temperature:

Storage temperature:

Freq. Tolerance at +25° C:

Freq. stability over operating

temperature (Ref to +25° C):

Equivalent series resistance:

Shunt capacitance C0:

Load capacitance CL:

Drive Level:

Aging @ 25°C per year:

Insulation Resistance:

TABLE 1

Frequency (MHz)

8.000 - 11.999

12.000 - 14.399

14.400 - 36.000

36.001 - 48.000

ABM53CA Series

12.0 MHz to 48 MHz

AT-cut (Fundamental for <36MHz, 3rd OT for >36MHz)

-10°C to + 60°C (see options)

-40°C to +85°C

± 30ppm max. (Contact ABRACON for tighter tolerance)

± 50ppm max. (Contact ABRACON for tighter stability)

See Table 1

7pF max

18pF (see option)

100uW max

±10ppm max

500Mohms min at 100Vdc ± 15V

ESR (Ω )

120

Contact ABRACON

Test Condition

Parts shall be tested under the condition of +20±15°C of the temperature, +65%±20%RH of the humidity unless

the standard condition of +25±2°C of the temperature, +65%±5%RH of the humidity is specified.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ABM53CA - Frequency -

Frequency

XX.XXXX MHz

Operating Temp.

0°C ~ +70°C

-20°C ~ +70°C

Packaging

Blank

Bulk

Tape & Reel

Load Capacitance

Please specify CL in pF

(From 12 to 30)

Please NOTE: This part is not recommended for high reliability applications such as

automotive, medical, or safety related applications. Please contact ABRACON for

information regarding our high reliability products and for application assistance.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 07.05.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
