B22B-PADSS-1F

Description
Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size105KB,3 Pages
ManufacturerJST
Download Datasheet Parametric View All

B22B-PADSS-1F Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

B22B-PADSS-1F Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLARIZED, SHROUDED, TOP ENTRY
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberPAD
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
PAD
CONNECTOR

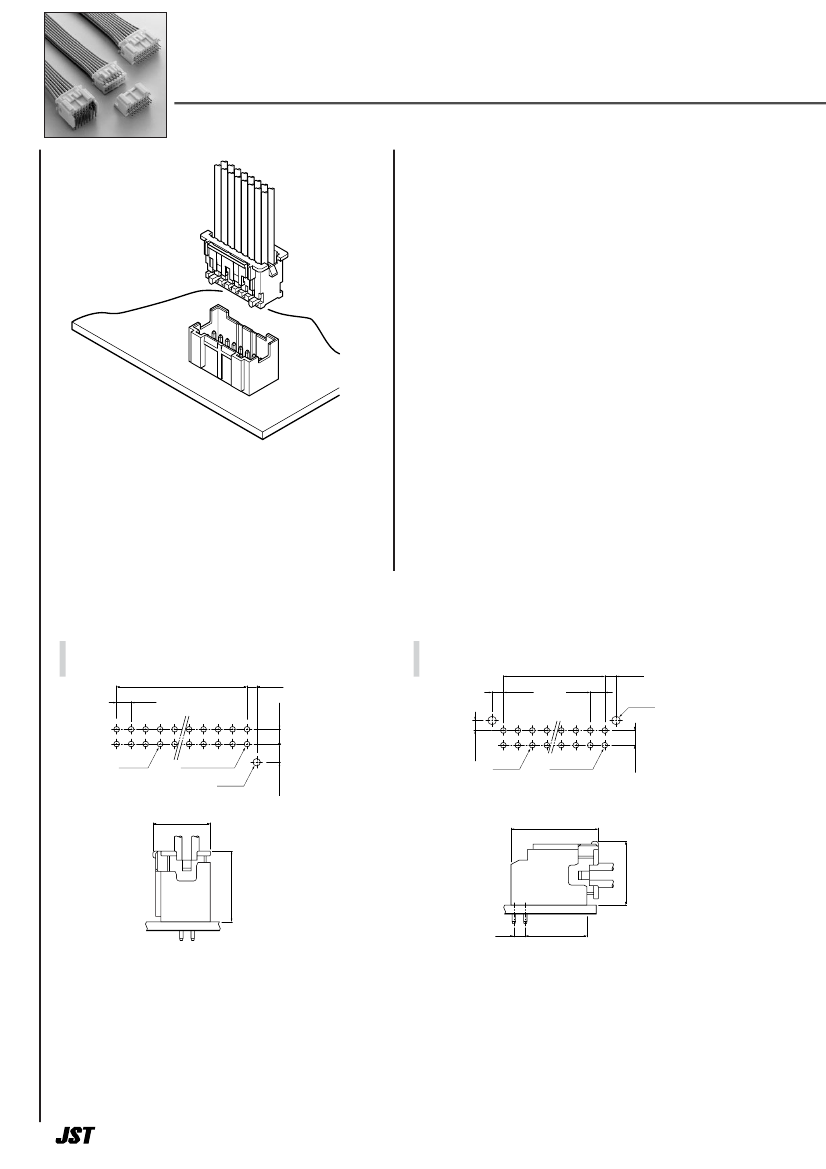

2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
max.
After environmental testing/ 20m
max.
• Insulation resistance: 1,000M
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

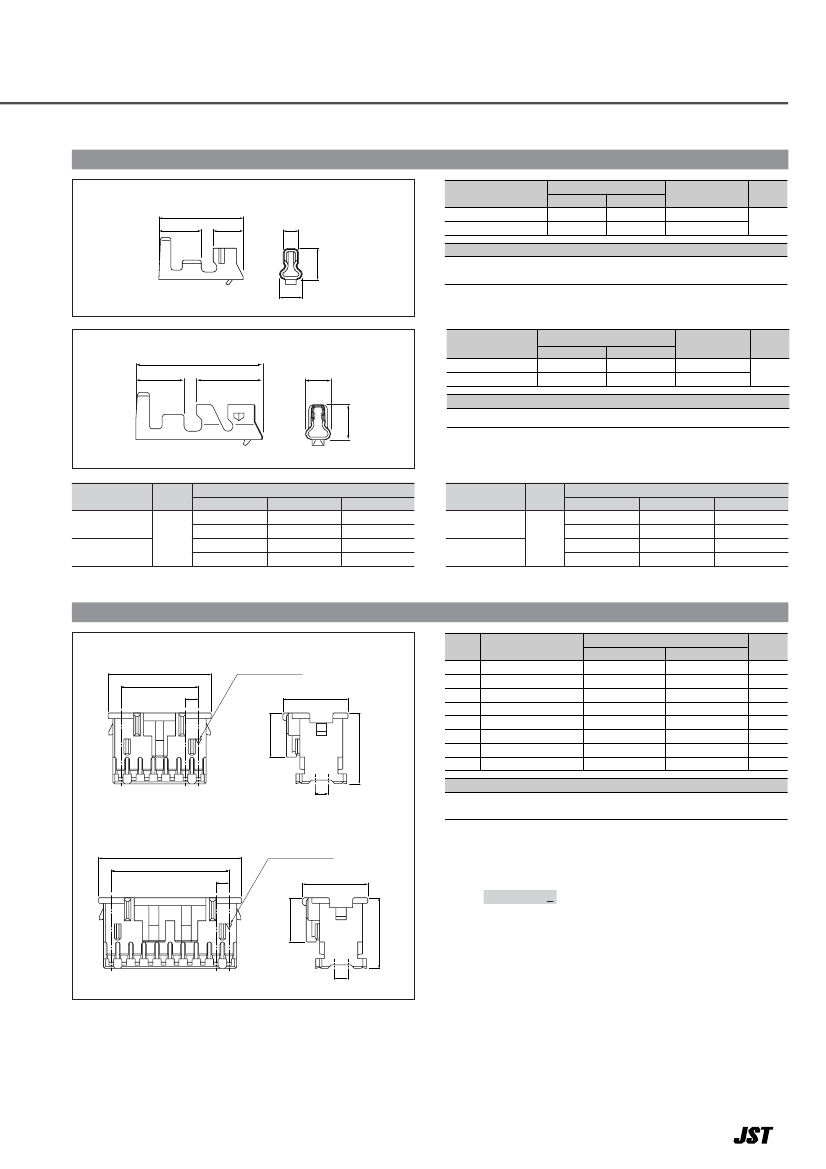

Dual-row construction allows high density
mounting.
• Secure locking device
• Reliable contacts
• Insertion guide mechanism
• Polarizing boss
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R50053749
Side entry type
0
Recognized E60389
Top entry type
A
2
±0.05
±0.05
A
±0.05
1.3
±0.05
1.6
±0.05
2
±0.05
+0.1
φ1.1
 0
1.6
±0.05
2
±0.05
Even number circuits
Odd number circuits
+0.1
φ0.7
 0
Even number circuits
1.4
±0.05
Odd number circuits
+0.1
φ0.7
 0
+0.1
φ1
 0
(10)
2.5
±0.05
(15.4)
(12.4)
2
10.7
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
1
(11)
2
Circuit No.1
Circuit No.1
±0.05
