PHP-200

Description
High Pass Filter, 164MHz, CASE A01, 8 PIN
CategoryAnalog mixed-signal IC    filter
File Size63KB，2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

PHP-200 Overview

High Pass Filter, 164MHz, CASE A01, 8 PIN

PHP-200 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Maximum attenuation frequency90 MHz
minimum attenuation frequency116 MHz
Attenuation at maximum frequency40 dB
Attenuation@frequency min20 dB
average input power0.5 W
Center frequency or cutoff frequency (fo/fc)164 MHz
filter typeHIGH PASS FILTER
high10 mm
input resistance50 OHM
Maximum insertion loss3 dB
JESD-609 codee0
Manufacturer's serial numberPHP-200
Installation typeTHROUGH HOLE MOUNT
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Output impedance50 OHM Ω
physical sizeL20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch)
Terminal surfaceTin/Lead (Sn/Pb)
voltage standing wave ratio1.6

Preview

Download Datasheet

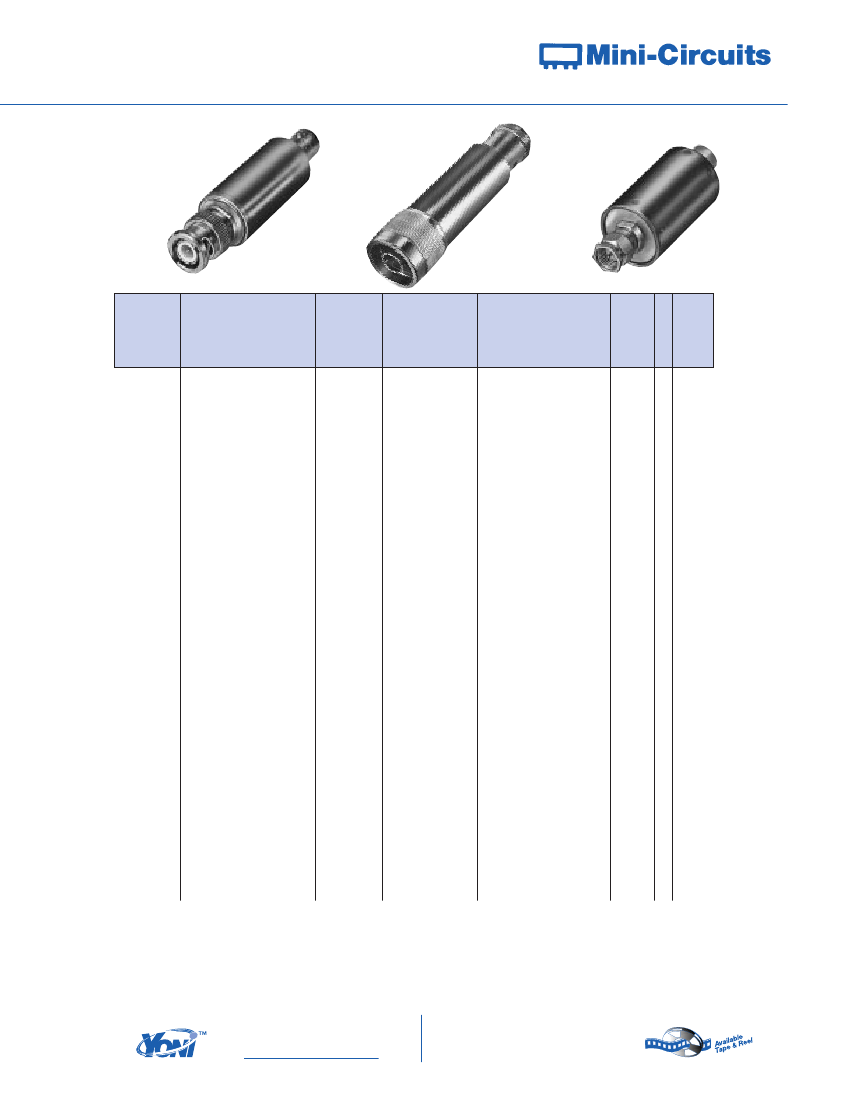

F
ILTERS
H
IGH
P
ASS
50
Ω
Surface Mount
t
16.5 MHz to 2.2 GHz
SURFACE MOUNT
SCHF
PHP
STOP BAND, MHz
MODEL
NO.
NEW
SCHF-17
SCHF-25
SCHF-300
PHP-25
PHP-50
PHP-100
PHP-150
PHP-175
PHP-200
PHP-250
PHP-300
PHP-400
PHP-500
PHP-600
PHP-700
PHP-800
PHP-900
PHP-1000
fco, MHz
Nom.
PASSBAND, MHz
VSWR
Stopband Passband
Typ.
18:1
18:1
18:1
18:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
17:1
Typ.
1.25:1
1.3:1
1.5:1
1.7:1
1.5:1
1.5:1
1.8:1
1.5:1
1.6:1
1.3:1
1.7:1
1.7:1
1.9:1
2.0:1
1.6:1
2.1:1
1.8:1
1.9:1
CASE
STYLE
(loss > 40dB)
DC-9
DC-13
DC-145
DC-13
DC-20
DC-40
DC-70
DC-70
DC-90
DC-100
DC-145
DC-210
DC-280
DC-350
DC-400
DC-445
DC-520
DC-550
(loss > 20 dB)
9-13
13-19
145-190
13-19
20-26
40-55
70-95
70-105
90-116
100-150
145-170
210-290
280-365
350-440
400-520
445-570
520-660
550-720
(loss 3 dB)
16.5
25
245
25
37
82
120
140
164
205
245
360
454
545
640
710
820
900
(loss < 1 dB)
18-200
27.5-200
290-1200
27.5-200
41-200
90-400
133-600
160-800
185-800
225-1200
*290-1200
395-1600
500-1600
600-1600
700-1800
780-2000
910-2100
1000-2200
Note B
YY161
YY161
YY161
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
C
O
N
N
E
C
T
I
O
N
PRICE
$
Qty.
(1-9)
15.95
14.95
14.95
16.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
14.95
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
cr
high pass typical frequency response
NOTES:
*
o
A.
B.
C.
1.
2.
Insertion loss 1.5 dB maximum
Non-hermetic
General Quality Control Procedures, Environmental Specifica-
tions, Hi-Rel and MIL description are given in section 0, see
“Mini-Circuits Guarantees Quality” article.
Connector types and case mounted options, case finishes are
given in section 0, see “Case styles & outline drawings”.
Prices and specifications subject to change without notice.
Absolute maximum power, voltage and current rating:
1a. RF power, 0.5 Watt
Models are available with male/female coax connectors, for
other configurations and inter-series versions consult factory.
See section 0, case styles and outline drawings.
®
pin connections
see case style outline drawings
PORT
INPUT
OUTPUT
GND
cr
1
8
2,3,4,5,6,7
NSN GUIDE
BHP-25
SHP-200
5915-01-425-7519
5915-01-360-0677
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers
NORTH AMERICA 800-654-7949 • 417 335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
168
ISO 9001
CERTIFIED
991230
MCL NO.
NSN

PHP-200 Related Products

PHP-200 PHP-500 PHP-250 PHP-1000 PHP-175 PHP-600 PHP-900
Description High Pass Filter, 164MHz, CASE A01, 8 PIN High Pass Filter, 454MHz, CASE A01, 8 PIN High Pass Filter, 205MHz, CASE A01, 8 PIN High Pass Filter, 900MHz, CASE A01, 8 PIN High Pass Filter, 140MHz, CASE A01, 8 PIN High Pass Filter, 545MHz, HERMETIC SEALED, CASE A01, 8 PIN High Pass Filter, 820MHz, CASE A01, 8 PIN
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknow
Maximum attenuation frequency 90 MHz 280 MHz 150 MHz 720 MHz 70 MHz 440 MHz 660 MHz
Attenuation at maximum frequency 40 dB 40 dB 20 dB 20 dB 20 dB 20 dB 20 dB
average input power 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Center frequency or cutoff frequency (fo/fc) 164 MHz 454 MHz 205 MHz 900 MHz 140 MHz 545 MHz 820 MHz
filter type HIGH PASS FILTER HIGH PASS FILTER HIGH PASS FILTER HIGH PASS FILTER HIGH PASS FILTER HIGH PASS FILTER HIGH PASS FILTER
input resistance 50 OHM 50 OHM 50 OHM 50 OHM 50 OHM 50 OHM 50 OHM
Maximum insertion loss 3 dB 3 dB 3 dB 3 dB 3 dB 3 dB 3 dB
JESD-609 code e0 e0 e0 e0 e0 e0 e0
Installation type THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Output impedance 50 OHM Ω 50 OHM Ω 50 OHM Ω 50 OHM Ω 50 OHM Ω 50 OHM Ω 50 OHM Ω
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
voltage standing wave ratio 1.6 1.9 1.3 1.9 1.5 2 1.8
high 10 mm - 10.16 mm 10 mm 10.16 mm 10.16 mm 10.16 mm
Manufacturer's serial number PHP-200 PHP - PHP-1000 - - PHP-900
physical size L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch) - L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch) L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch) L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch) L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch) L20.32XB10.16XH10.16 (mm)/L0.8XB0.4XH0.4 (inch)
length - - 20.32 mm - 20.32 mm 20.32 mm 20.32 mm
width - - 10.16 mm - 10.16 mm 10.16 mm 10.16 mm
