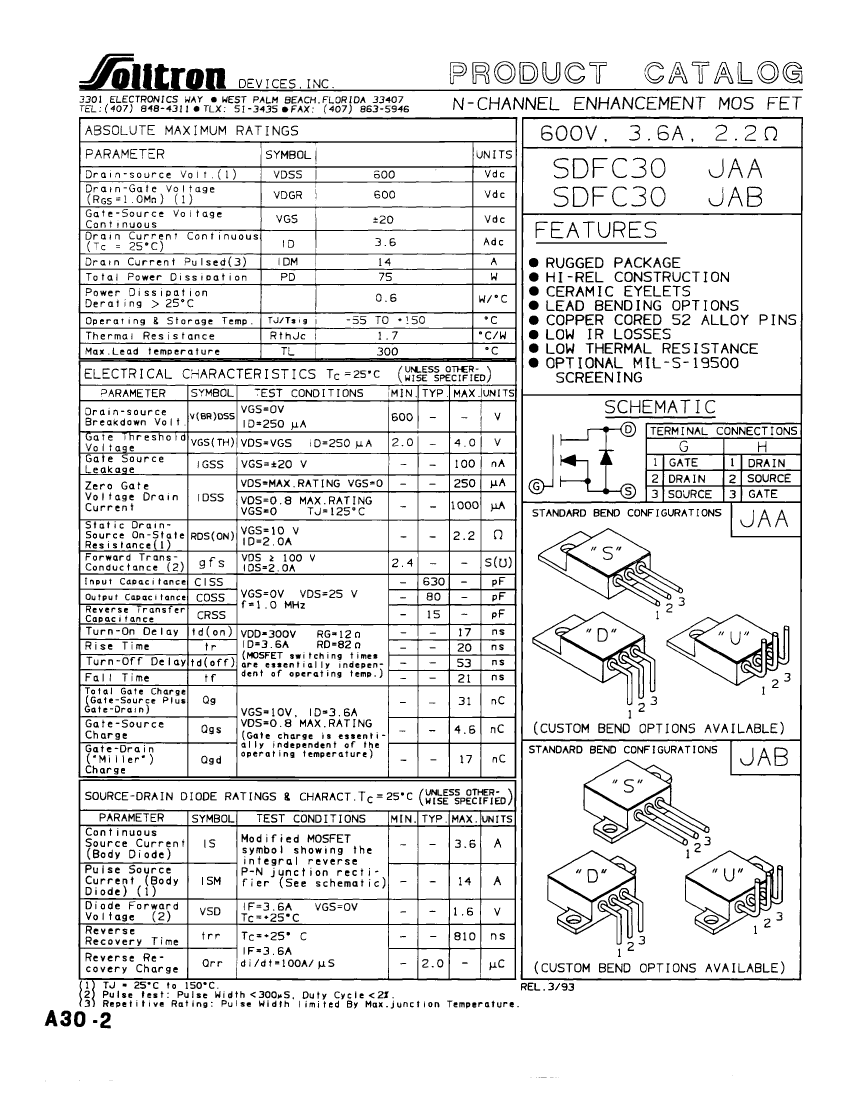

SDFC30JAAXGU1B datasheet, PDF - EEWORLD Datasheet

SDFC30JAAXGU1B: DescriptionPower Field-Effect Transistor, 3.6A I(D), 600V, 2.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, TO-254, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size69KB，1 Pages; ManufacturerSolitron Devices Inc.

Download Datasheet Parametric View All

SDFC30JAAXGU1B Overview

Power Field-Effect Transistor, 3.6A I(D), 600V, 2.2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, TO-254, 3 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Solitron Devices Inc.
Parts packaging code	TO-254AA
package instruction	FLANGE MOUNT, S-MSFM-P3
Contacts	3
Reach Compliance Code	unknown
Other features	CUSTOM BENT LEAD OPTIONS ARE AVAILABLE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (ID)	3.6 A
Maximum drain-source on-resistance	2.2 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	75 W
Maximum pulsed drain current (IDM)	14 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Maximum off time (toff)	74 ns
Maximum opening time (tons)	37 ns
