Part Number

Search

50295-0050L-001

Description
Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size127KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance

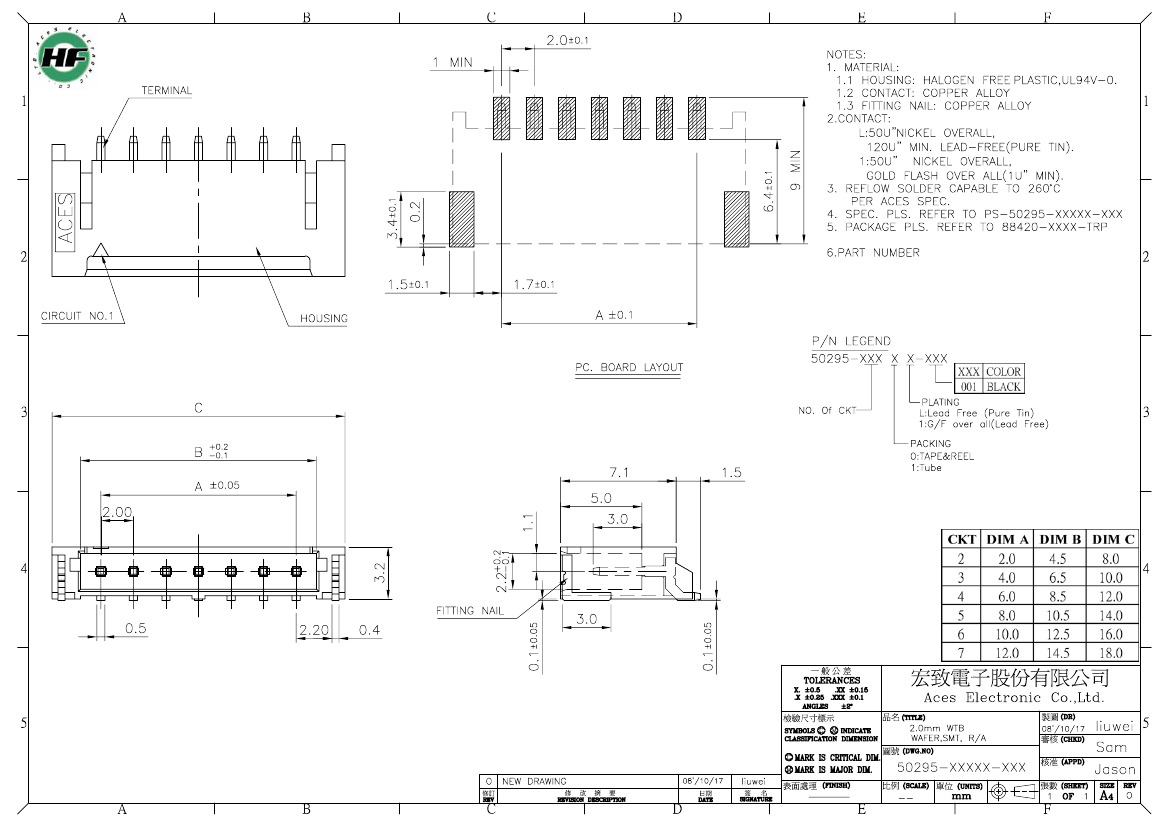

Download Datasheet Parametric View All

50295-0050L-001 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50295-0050L-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.13 inch
subject depth0.339 inch
body length0.551 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1800VAC V
Durability30 Cycles
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial number50295
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Plating thickness120u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts5
