XMAPD10-2-8-2S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> XMAPD10-2-8-2S

Preview

XMAPD10-2-8-2S: DescriptionSplitter, 2000MHz Min, 8000MHz Max, 0.6dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size71KB，1 Pages; ManufacturerXMA Corp.

Download Datasheet Parametric Compare View All

XMAPD10-2-8-2S Overview

Splitter, 2000MHz Min, 8000MHz Max, 0.6dB Insertion Loss-Max

XMAPD10-2-8-2S Parametric

Parameter Name	Attribute value
Maker	XMA Corp.
Reach Compliance Code	unknown
Other features	SMA, ISOLATION-MIN (DB):20
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.6 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	2000 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.3

XMAPD10-2-8-2S Preview

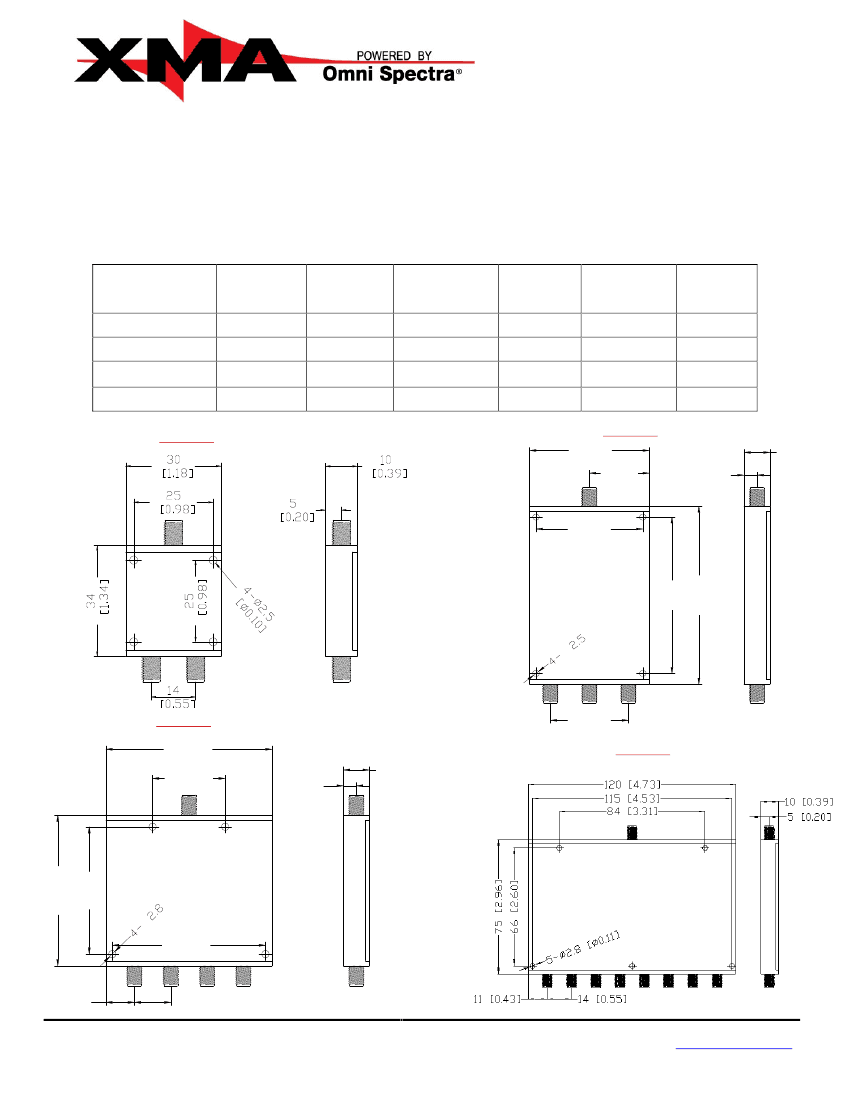

REV A1

Power Divider, SMA

•

Frequency:

Power:

Impedance:

Connectors:

2 – 8 GHz

10 Watts (Forward)

2 Watts (Reverse)**

50 Ohms

SMA Female

Insertion

Loss

≤0.6

dB

≤1.1

dB

≤1.2

dB

≤1.9

dB

Amplitude

Balance

≤0.3

dB

≤0.9

dB

≤0.5

dB

≤0.5

dB

Phase

Balance

(Degrees)

≤3

≤7

≤5

≤8

VSWR

Isolation

Figure

Part Number

XMAPD10-2-8-2S

XMAPD10-2-8-3S

XMAPD10-2-8-4S

XMAPD10-2-8-8S

FIGURE 1

≤1.30:1

≤1.40:1

≤1.45:1

≤1.40:1

≥18

dB

≥18

dB

≥18

dB

≥18

dB

46

[ 1. 81]

1

2

3

4

FIGURE 2

23

[ . 91]

5

[ . 20]

10

[ . 39]

41

[ 1. 61]

∅

FIGURE 3

64

[ 2. 520]

28

[ 1. 102]

10

[ . 394]

30

[ 1. 18]

FIGURE 4

5. 01

[ . 197]

58

[ 2. 283]

49

[ 1. 929]

∅

59

[ 2. 323]

11. 01

[ . 434]

14

[ . 551]

XMA Corporation

150 Dow Street

Manchester, NH 03101

Tel: (603) 222-2256 Fax: (603) 222-2259

Email:

sales@xmacorp.com

Website: www.xmacorp.com

65

[ 2. 56]

74

[ 2. 91]

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

XMAPD10-2-8-2S Related Products

	XMAPD10-2-8-2S	XMAPD10-2-8-3S	XMAPD10-2-8-4S
Description	Splitter, 2000MHz Min, 8000MHz Max, 0.6dB Insertion Loss-Max	Splitter, 2000MHz Min, 8000MHz Max, 0.7dB Insertion Loss-Max	Splitter, 2000MHz Min, 8000MHz Max, 0.7dB Insertion Loss-Max
Maker	XMA Corp.	XMA Corp.	XMA Corp.
Reach Compliance Code	unknown	unknown	unknown
Other features	SMA, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	40 dBm	40 dBm	40 dBm
Maximum insertion loss	0.6 dB	0.7 dB	0.7 dB
Maximum operating frequency	8000 MHz	8000 MHz	8000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.3	1.3	1.2
