ASE-FREQ-N-B-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ASE-FREQ-N-B-T

ASE-FREQ-N-B-T: DescriptionCMOS/TTL Output Clock Oscillator, 0.5MHz Min, 133MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size190KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE-FREQ-N-B-T Overview

CMOS/TTL Output Clock Oscillator, 0.5MHz Min, 133MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASE-FREQ-N-B-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI STATE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	40%
JESD-609 code	e4
Manufacturer's serial number	ASE
Installation features	SURFACE MOUNT
Maximum operating frequency	133 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Silver (Ag)

Preview

Download Datasheet

View All

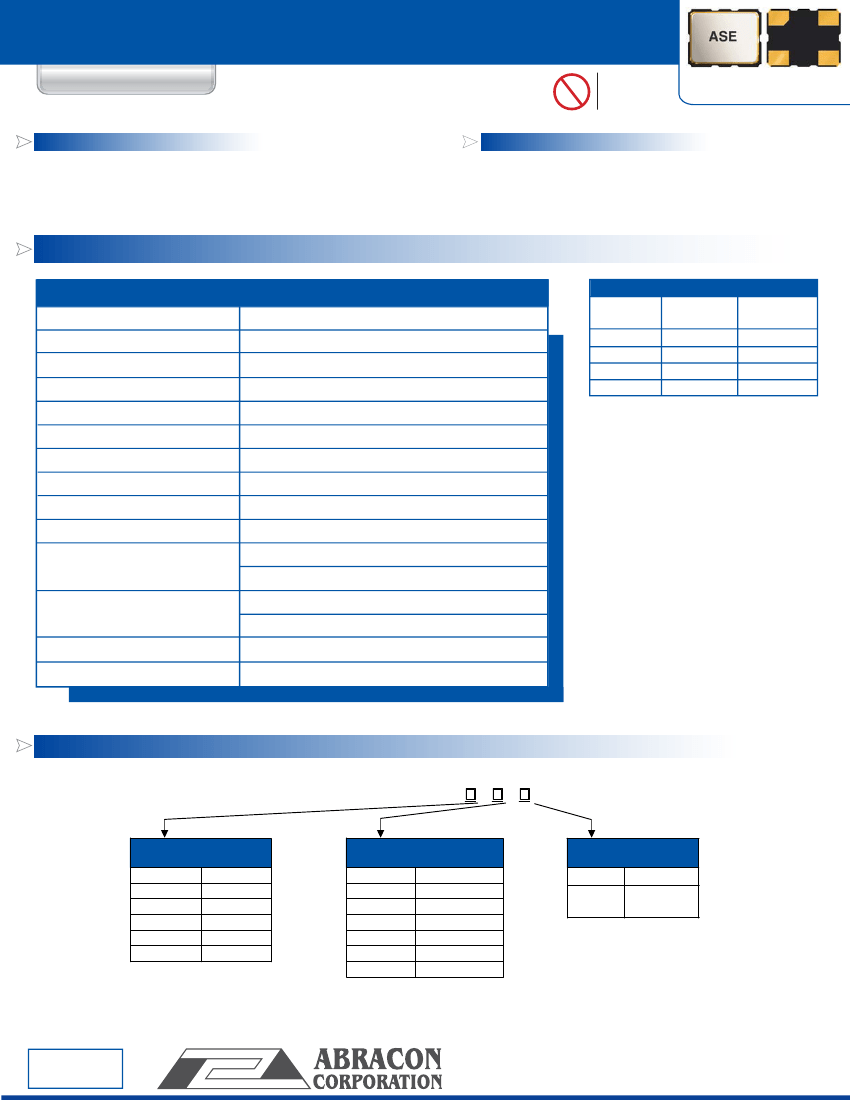

3.3Vdc CMOS COMPATIBLE SMD

CRYSTAL CLOCK OSCILLATOR

ASE SERIES

FEATURES:

• Compact and low in height

• Low current consumption

• Tri state function

• Suitable for high density SMT

• IR reflow capable

• Tight stability option

RoHS

Compliant

APPLICATIONS:

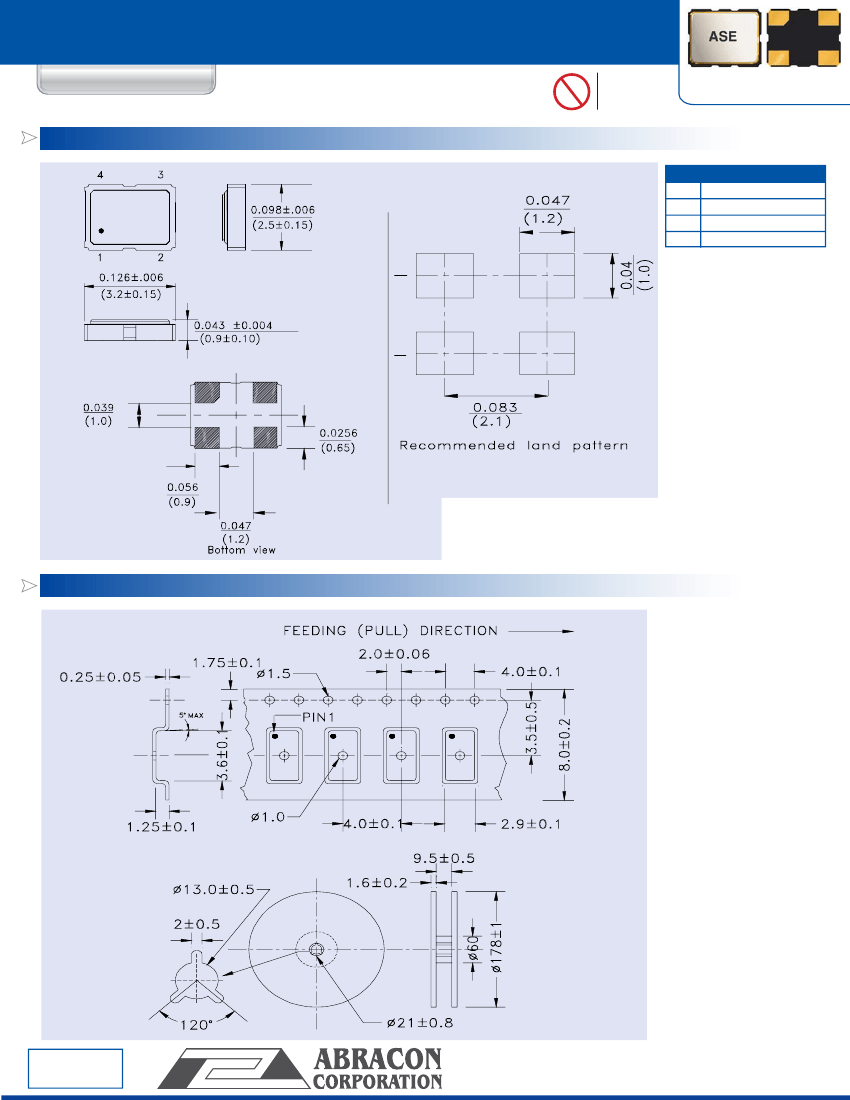

3.2 X 2.5 X 1.1mm

| | | | | | | | | | | | | | |

• CCD clock for VTR camera

• Equipment connected to PC or PC cards

• Thin equipment

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise and Fall Time (Tr/Tf)

Output Load

Output Voltage

Tristate Function

Peak to Peak Jitter

RMS Jitter

TABLE 1 - Input Current

Freq.

Tr/Tf max

Idd max.

(MHz)

(nSec)

(max. mA)

~ 20 MHz

10 max.

~ 40 MHz

10 max.

~ 60 MHz

10 max.

~ 200 MHz

10 max.

ASE Series

0.75 ~ 75 MHz

-20°C to + 70°C (See Options)

-55°C to + 100°C

± 100 ppm max. (See Options)

3.3 V ± 5%

See Table 1

45/55% @ 50%Vdd

See Table 1

15 pF (max) or 10 TTL loads

VOH = 0.9* Vdd min.

VOL = 0.1* Vdd max.

"1" (VIH >= 2.2 Vdc) or open: Oscillation

"0" (VIL < 0.8 Vdc) : Hi Z

28ps (Typical) *

3.6ps (Typical) *

* = Reference only; Contact

Abracon for Jitter values

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE - Frequency -

Operating Temp.

Range

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Contact ABRACON for

wider temperature range.

Overall Frequency

Stability

Y(*)

±10ppm

J(**)

±20ppm

±25ppm

±30ppm

±35ppm

Packaging

Blank

Bulk

Tape and

Reel

±40ppm

±50ppm

* Available for 0°C to +50°C and -10°C to +60°C only.

** Contact ABRACON for -40°C to +85°C.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 08.09.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
