SCDS74T-391M-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SCDS74T-391M-N

SCDS74T-391M-N: DescriptionGeneral Purpose Inductor, 390uH, 20%, 1 Element, SMD, 2929, ROHS COMPLIANT; CategoryPassive components inductor; File Size528KB，15 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SCDS74T-391M-N Overview

General Purpose Inductor, 390uH, 20%, 1 Element, SMD, 2929, ROHS COMPLIANT

SCDS74T-391M-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	2929
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2929
structure	Magnetically Shielded
DC Resistance	2.85 Ω
Nominal inductance(L)	390 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SCDS74
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	4.5 mm
Package length	7.3 mm
Package form	SMT
Package width	7.3 mm
method of packing	TR
Maximum rated current	0.29 A
series	SCDS
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

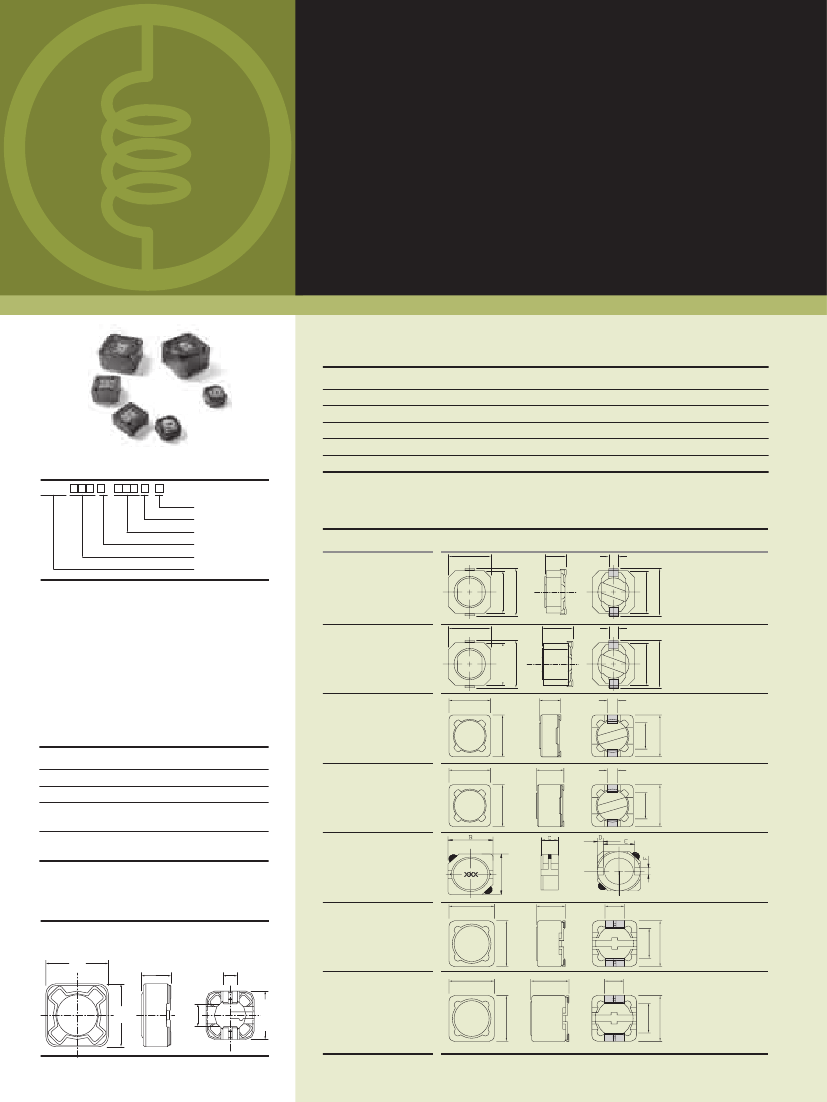

YAGEO CORPORATION SMD INDUCTOR

/ BEADS

SMT Power Inductors

SCDS Series

AppLICATIoNS

Power supply for VTRs.

OA equipment.

LCD televisions.

Notebook PCs.

Portable communication equipment.

DC / DC converters, etc.

pRodUCT IdENTIfICATIoN

SCDS

International No.

Tolerance

Inductance

Packaging Style

Dimensions

Product Symbol

CoNfIGURATIoN ANd dImENSIoNS

TYpE

SCDS62T

(3.3µH ~ 330µH)

SHApES ANd dImENSIoN

6.2±0.3

3.0 Max.

1.5

Dimensions : mm

5.9±0.3

• T : Packing : Tape and Reel

• HP : Low DCR

• LD : High Power

• Tolerance : K=±10% ; M=±20% ; T=±30%

• Internal No.: B: Silver plated terminals (3D12~6D38); S:

Base type terminals (2D11~2D18HP & 62T&127)

•Note : YAGEO will start to release lead-free terminals

that meet SONY SS-00259's criterial and YAGEO

Internal No will changed to “N” as identification.

EX : SCDS 127T-100M-N

6.6±0.3

4.6

SCDS64T

(10µH ~ 1000µH)

6.2

5 Max.

1.5

5.9±0.3

6.6±0.3

4.6

SCDS73

(10µH ~ 1.0mH)

7.3±0.2

3.4 Max.

1.8

7.3±0.2

fEATURES

Available in magnetically shielded.

Low DC resistance.

Suitable for large currents.

Ideal for a variety of DC - DC converter inductor

applications.

Available on tape and reel for auto surface

mounting.

5.0

SCDS74

(10µH ~ 1.0mH)

7.3±0.2

4.5 Max.

1.8

7.30.2

5.0

SCDS104R

(1.5µH ~ 330µH)

10.10.5

1.20.15

4.1Max

7.70.3

XXX

SCDS125

SCDS124

(3.9µH ~ 330mH)

12.5

4.5 Max.

5.0

12.5 Max.

10.00.5

6.0 Max.

5.0

12.5 Max.

(10µH ~ 1.0mH)

SCDS127

11.8±0.2

12.5 Max.

8.0 Max.

5.0

(10µH ~ 47mH)

12.5 Max.

12.0±0.3

7.6

7.6±0.2

12.5

11.8

7.6

3.00.2

7.3

6.6
