TC55V1165FF-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TC55V1165FF-8

TC55V1165FF-8: DescriptionIC 64K X 16 CACHE SRAM, 8 ns, PQFP100, 14 X 20 MM, 1.6 MM HEIGHT, 0.65 MM PITCH, PLASTIC, LQFP-100, Static RAM; Categorystorage storage; File Size534KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC55V1165FF-8 Overview

IC 64K X 16 CACHE SRAM, 8 ns, PQFP100, 14 X 20 MM, 1.6 MM HEIGHT, 0.65 MM PITCH, PLASTIC, LQFP-100, Static RAM

TC55V1165FF-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	LQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	8 ns
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
memory density	1048576 bit
Memory IC Type	CACHE SRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	100
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX16
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm

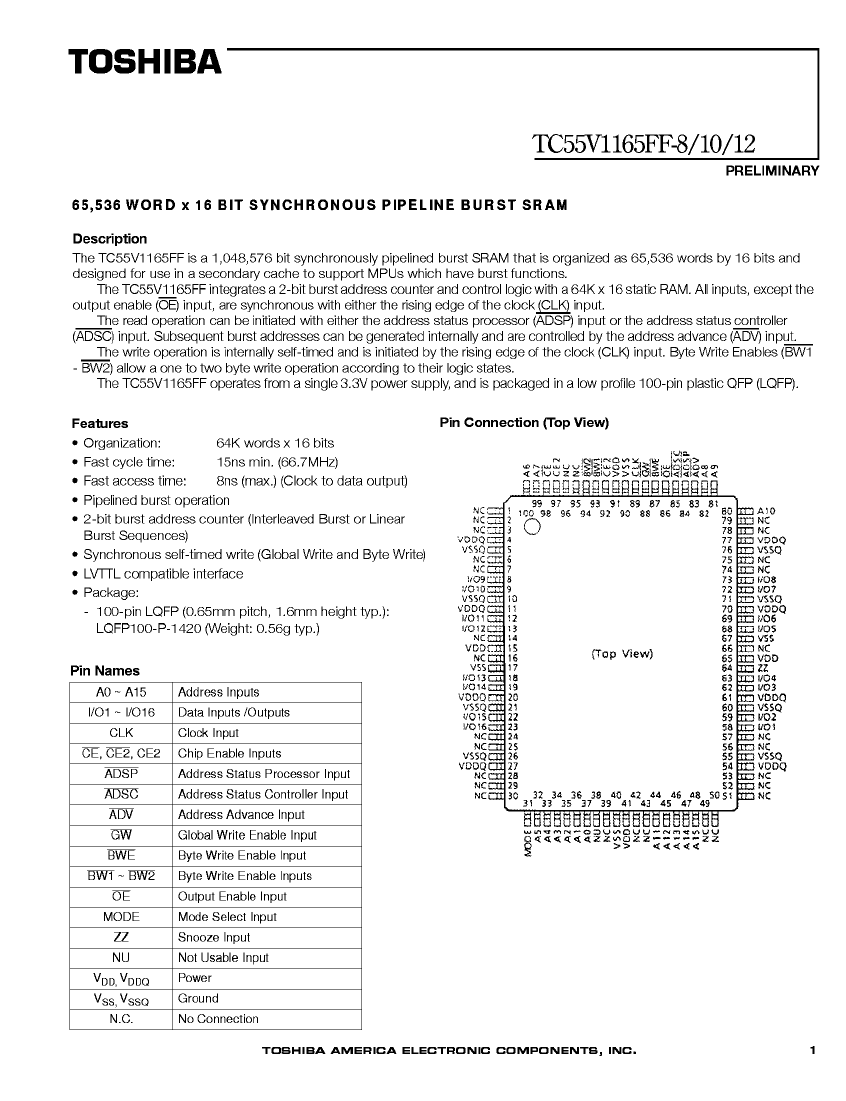

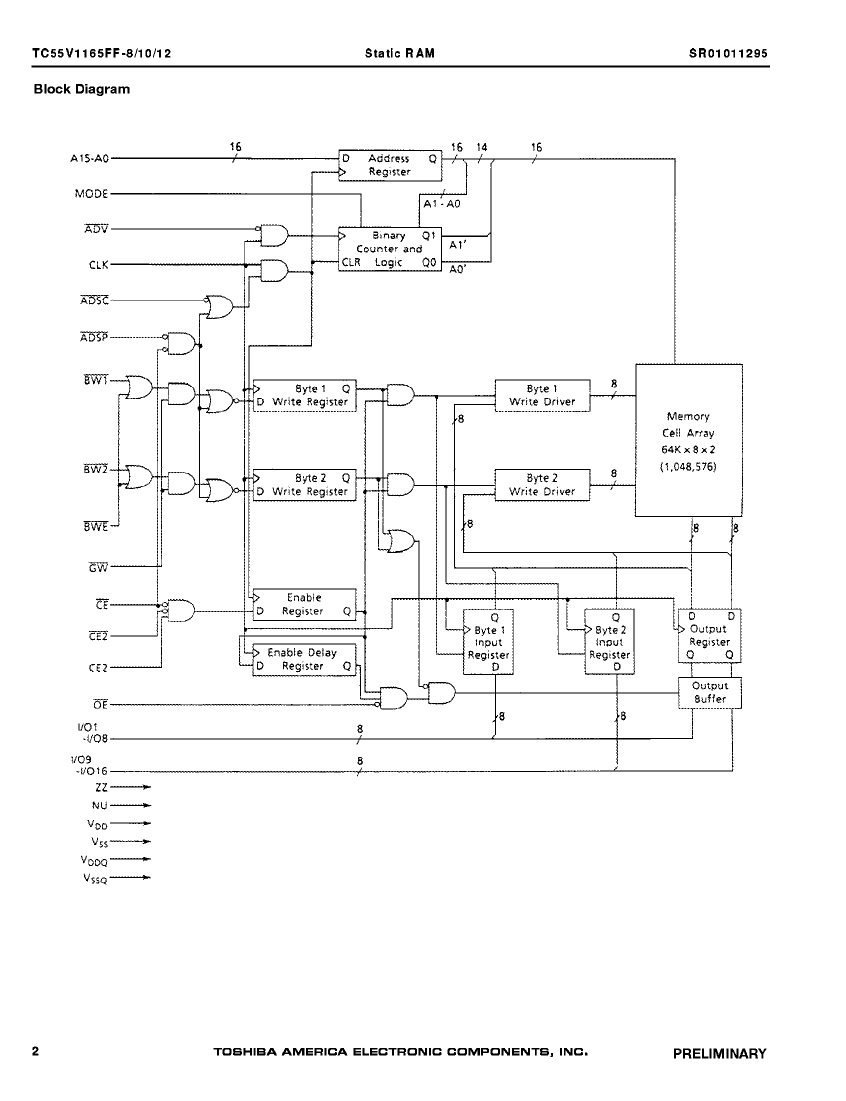

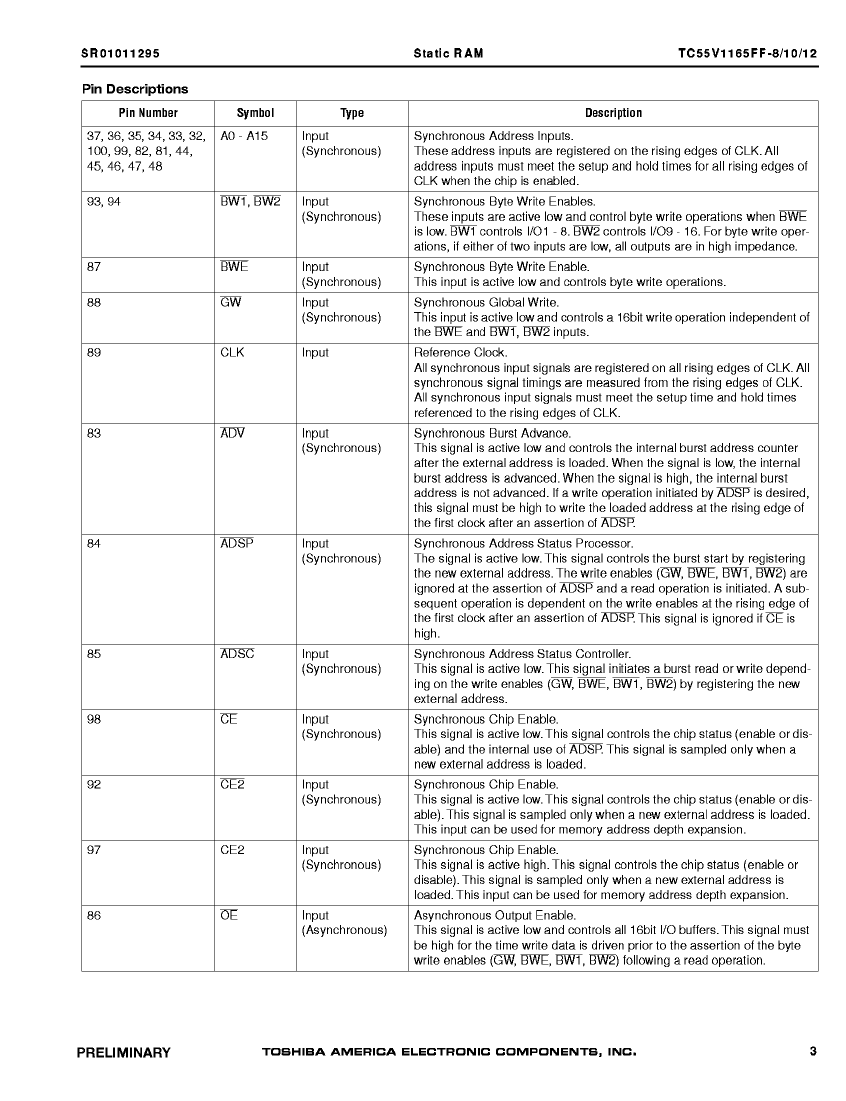

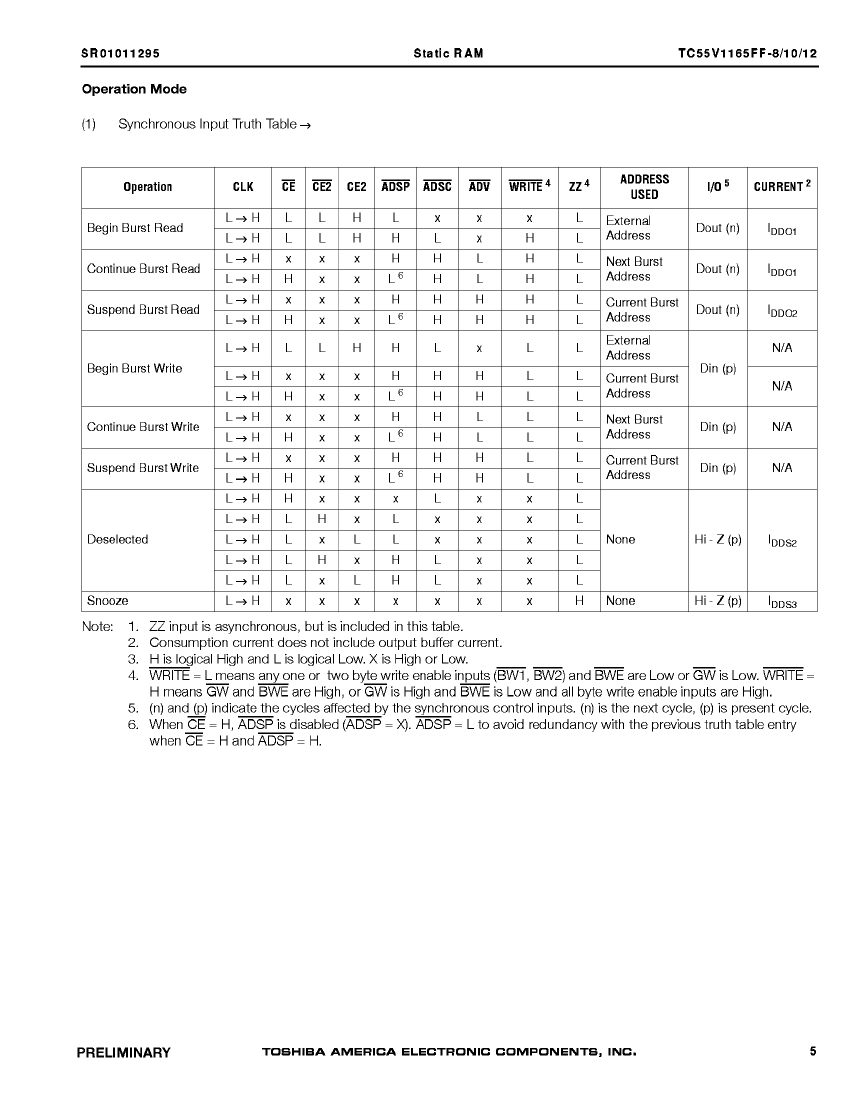

TC55V1165FF-8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC55V1165FF-8 Related Products

	TC55V1165FF-8	TC55V1165FF-10	TC55V1165FF-12
Description	IC 64K X 16 CACHE SRAM, 8 ns, PQFP100, 14 X 20 MM, 1.6 MM HEIGHT, 0.65 MM PITCH, PLASTIC, LQFP-100, Static RAM	IC 64K X 16 CACHE SRAM, 10 ns, PQFP100, 14 X 20 MM, 1.6 MM HEIGHT, 0.65 MM PITCH, PLASTIC, LQFP-100, Static RAM	IC 64K X 16 CACHE SRAM, 12 ns, PQFP100, 14 X 20 MM, 1.6 MM HEIGHT, 0.65 MM PITCH, PLASTIC, LQFP-100, Static RAM
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP	QFP
package instruction	LQFP,	LQFP,	LQFP,
Contacts	100	100	100
Reach Compliance Code	unknown	unknown	unknow
ECCN code	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	8 ns	10 ns	12 ns
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0	e0
length	20 mm	20 mm	20 mm
memory density	1048576 bit	1048576 bit	1048576 bi
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	16	16	16
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	100	100	100
word count	65536 words	65536 words	65536 words
character code	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	64KX16	64KX16	64KX16
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.1 V	3.1 V	3.1 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	14 mm
